DeDietrich AWHP MIT-IN iSystem Installation And Service Manual

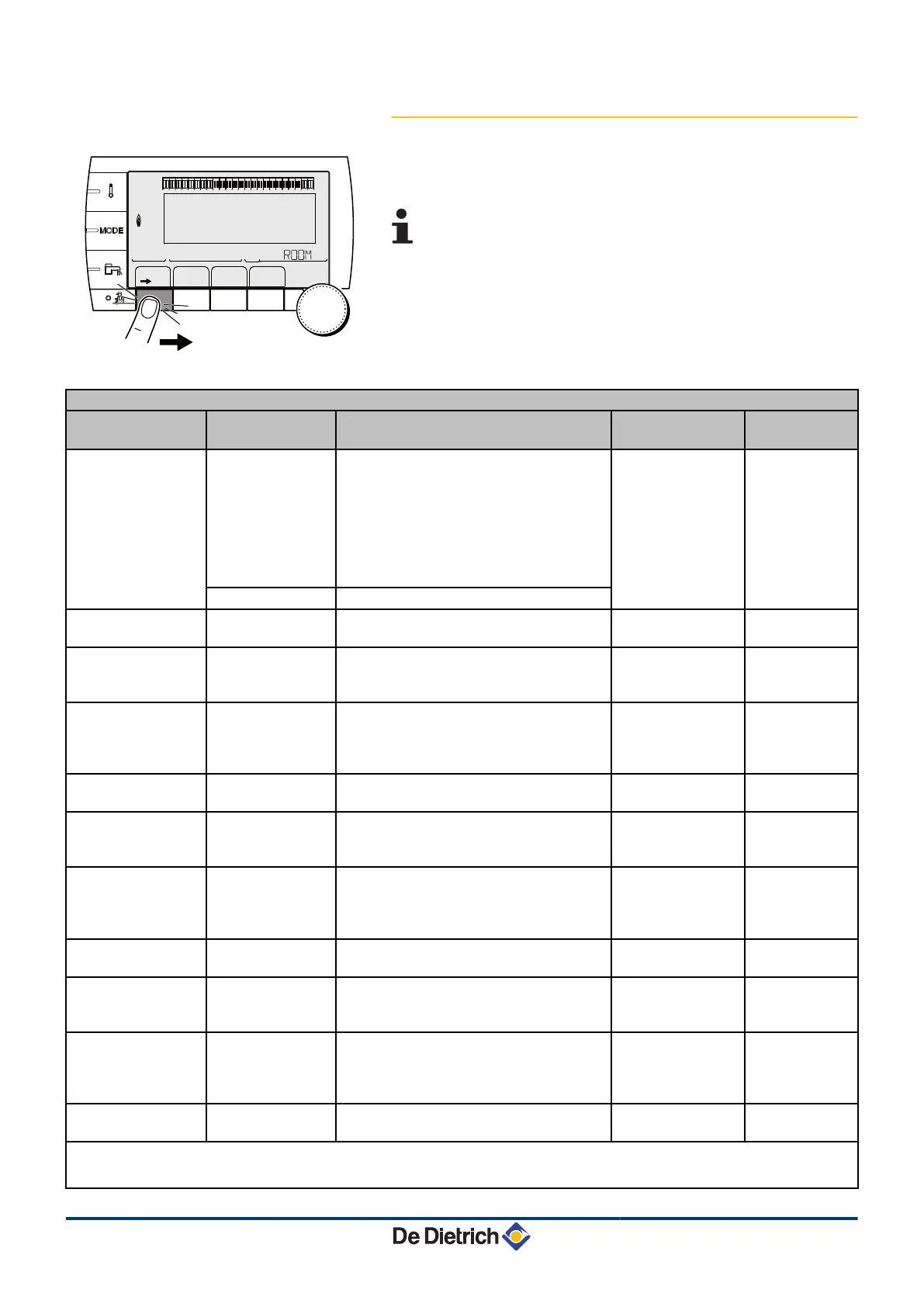

5.6.2. Calibrating the sensors
1. To access user level: Press the
>
key.
2. Select the menu #SETTING.
4 Turn the rotary button to scroll through the menus or
modify a value.
4 Press the rotary button to access the selected menu
or confirm a value modification.
¼
For a detailed explanation of menu browsing, refer
to the chapter: "Browsing in the menus", page 75
3. Set the following parameters:
User level - Menu #SETTING
Parameter Adjustment range Description Factory setting Customer
setting
SUM/WIN 15 to 30 °C Used to set the outside temperature above
which heating will be shut down.
4 The heating pumps are shut down.
4 The heat pump only starts up for
domestic hot water needs.
4 In this case the letter E and symbol p
are displayed.
22 °C
NO
Heating is never shut down automatically
CALIBR. OUT Outside sensor calibration: Used to correct
the outside temperature
Outside
temperature
CALIBR. ROOM A
(1)
Calibration of the room sensor on circuit A
Make this setting 2 hours after switching on,
when the room temperature has stabilised
Room temperature
of circuit A
OFFSET ROOM A
(2)
-5.0 to +5.0 °C Room offset on circuit A: Is used to set a
room offset
Make this setting 2 hours after switching on,
when the room temperature has stabilised
0.0
ANTIFR. ROOM A 0.5 to 20 °C Room temperature antifreeze activation on
circuit A
6 °C
CALIBR. ROOM B
(1) (3)
Calibration of the room sensor on circuit B
Make this setting 2 hours after switching on,
when the room temperature has stabilised
Room temperature
of circuit B
OFFSET ROOM B
(2) (3)
-5.0 to +5.0 °C Room offset on circuit B: Is used to set a
room offset
Make this setting 2 hours after switching on,
when the room temperature has stabilised
0.0
ANTIFR. ROOM B
(3)
0.5 to 20 °C Room temperature at which the antifreeze
mode is activated on circuit B
6 °C
CALIBR. ROOM C
(1) (3)
Calibration of the room sensor on circuit C
Make this setting 2 hours after switching on,
when the room temperature has stabilised
Room temperature
of circuit C
OFFSET ROOM C
(2) (3)
-5.0 to +5.0 °C Room offset on circuit C: Is used to set a
room offset
Make this setting 2 hours after switching on,
when the room temperature has stabilised
0.0
ANTIFR. ROOM C
(3)
0.5 to 20 °C Room temperature antifreeze activation on
circuit C
6 °C
(1) The parameter is only displayed if a room sensor is connected to the circuit concerned
(2) The parameter is only displayed if no room sensor is connected to the circuit concerned or the sensor has no influence
(3) The parameter is only displayed if the circuit concerned is actually connected
bar
1
1
2
2
r
c
STD
(
'
t
v
0 2 4 6 8 10 12 14 16 18 22 2420
p
b
AUTO
x c
r
j
M
g
m
SUNDAY 11:45
C002219-D-04
AWHP MIT-IN iSystem 5. Commissioning
24/09/2012 - 300027606-001-01
90
