5.4 Checks and adjustments after commissioning
5.4.1. Displaying the parameters in extended
mode
The display mode on the control panel is set as standard in such a
way as only to show the conventional parameters. It is possible to
switch to extended mode by proceeding as follows:

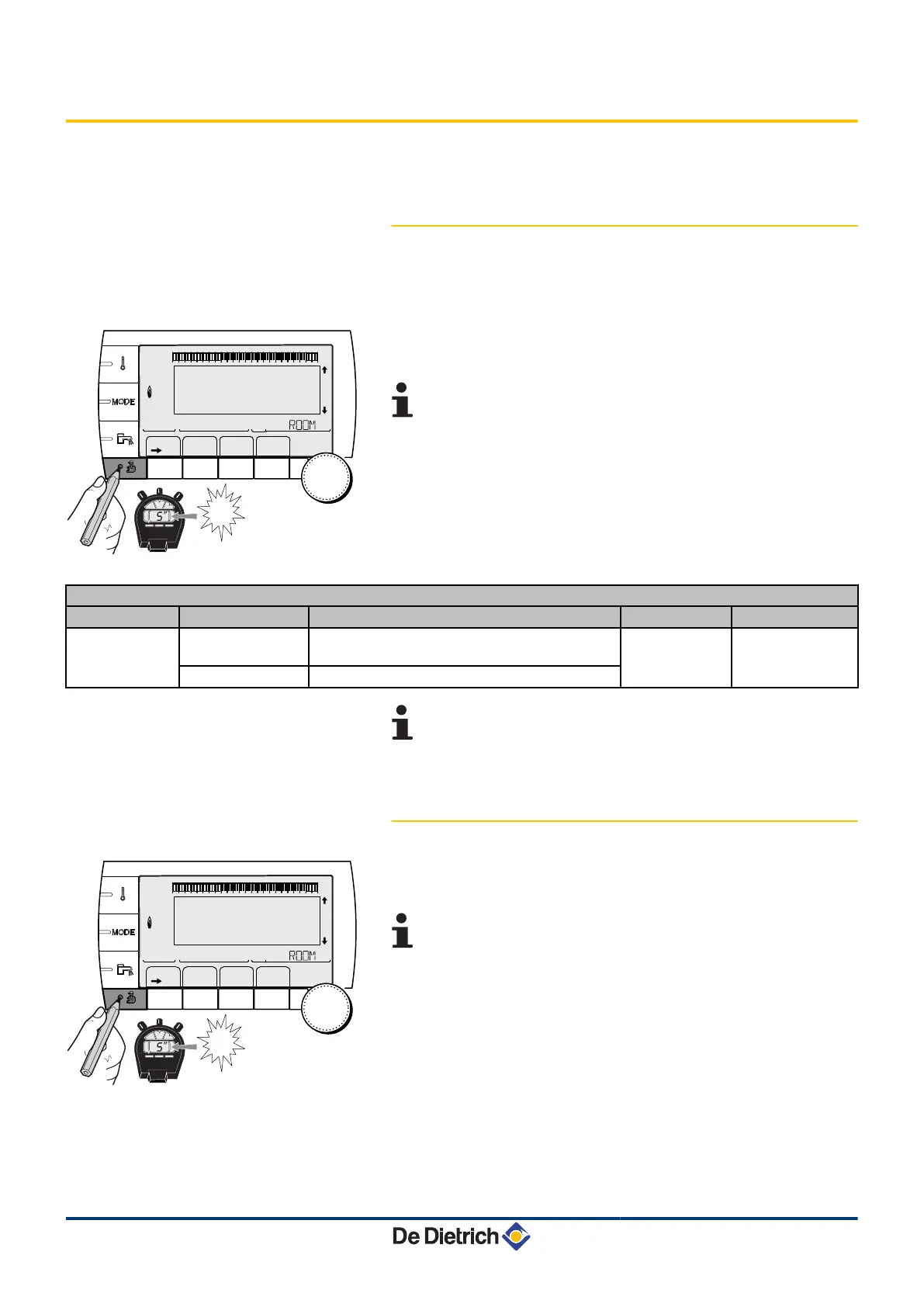

1. Access the installer level: Press key
-
for around 5 seconds.
2. Select the menu #SYSTEM.
4 Turn the rotary button to scroll through the menus or
modify a value.
4 Press the rotary button to access the selected menu
or confirm a value modification.
¼
For a detailed explanation of menu browsing, refer
to the chapter: "Browsing in the menus", page 75
3. Set parameter INSTALLATION to EXTENDED.
Installer level - Menu #SYSTEM
Parameter Adjustment range Description Factory setting Customer setting
INSTALLATION CLASSIC
Displays the parameters of a conventional
installation
CLASSIC
EXTENDED
Displays all parameters
Regardless of what is done to the keys, the regulator
switches back to CLASSIC mode after 30 minutes.
5.4.2. Setting the parameters specific to the
installation
1. Access the installer level: Press key
-
for around 5 seconds.
2. Select the menu #SYSTEM.
4
Turn the rotary button to scroll through the menus or
modify a value.
4 Press the rotary button to access the selected menu
or confirm a value modification.
¼
For a detailed explanation of menu browsing, refer
to the chapter: "Browsing in the menus", page 75
3. Set the following parameters according to the connections made
to the PCBs:
1
1
2
2
r
c
STD
(
'
t
v
0 2 4 6 8 10 12 14 16 18 22 2420
p
b
AUTO
x
c
r
j
M
g
m
SUNDAY 11:45
5 "
TEMP.: 68°
C002235-F-04
1
1
2
2
r
c
STD
(
'
t
v
0 2 4 6 8 10 12 14 16 18 22 2420
p
b
AUTO
x
c
r
j
M
g
m
SUNDAY 11:45
5 "
TEMP.: 68°
C002235-F-04
AWHP MIT-IN iSystem
5. Commissioning
24/09/2012 - 300027606-001-01
78
