4.5.3. Assembly of the MIT indoor module
n

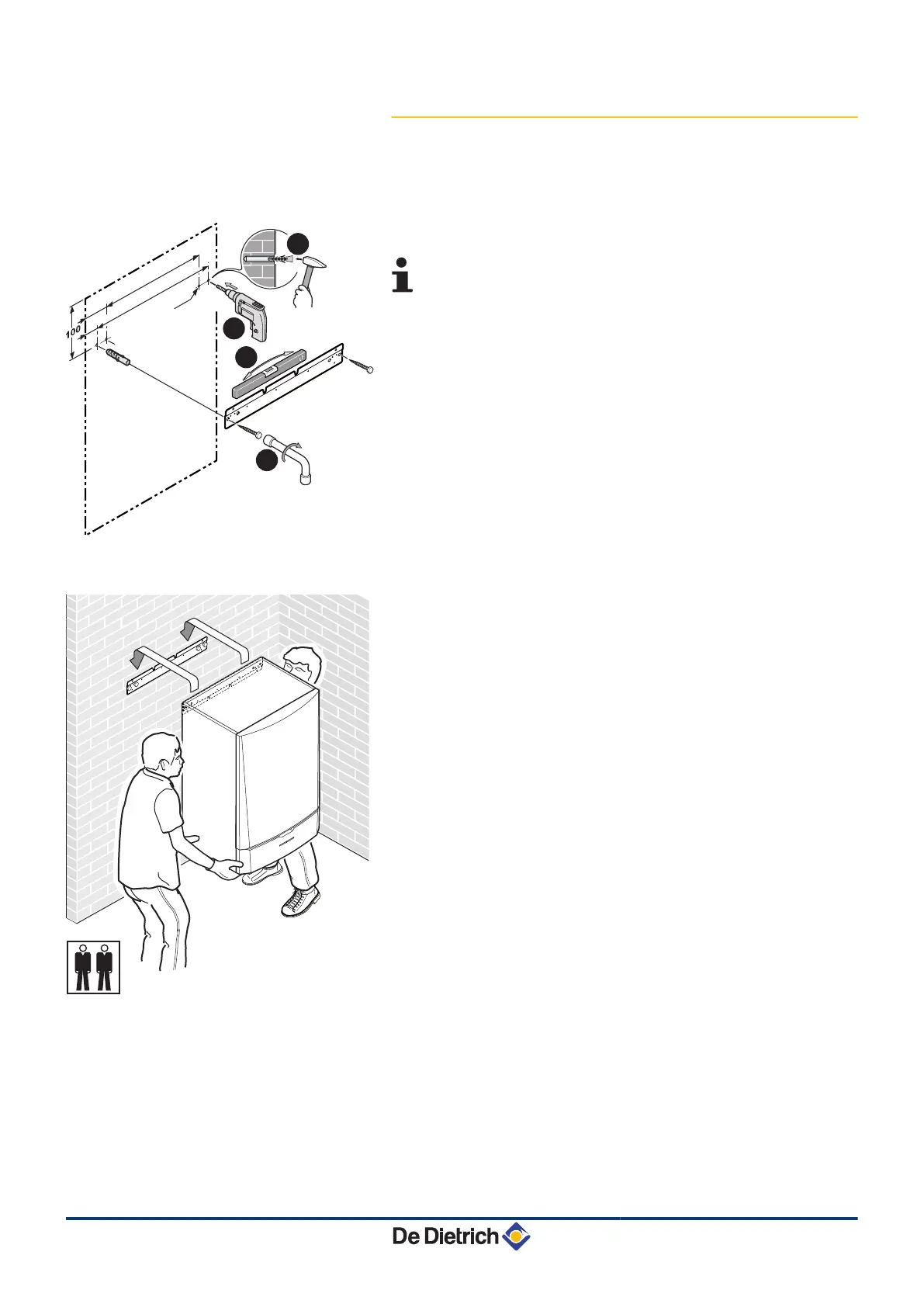

Fitting the mounting rail
1. Drill 2 holes with a Ø of 10 mm.
Additional holes are provided in case one or other of the
standard locating holes prevents the correct location of the
plugs.
2. Put the plugs in place.
3. Fix the mounting rail to the wall using the hexagonal head screws
provided for this purpose. Set the level using a spirit level.
n
Fixing to the wall
1. Present the indoor module above the mounting rail until it rests
firmly against it.
2. Gently lower the indoor module.
1
2
3
3
M002380-B
458
61
11
558
Ø10
M002381-C
AWHP MIT-IN iSystem 4. Installation
24/09/2012 - 300027606-001-01
28

DeDietrich AWHP MIT-IN iSystem Specifications

General

Category	Heat Pump
Refrigerant	R32
Power Supply	220-240V, 50Hz
Operating Temperature Range (Cooling)	+10 to +46 °C
Type	Air-to-Water Heat Pump
Operating Temperature Range (Heating)	-20 to +35 °C
