4.4.3. Locating the outside module
CAUTION
Keep the appliance vertical during transport.
n

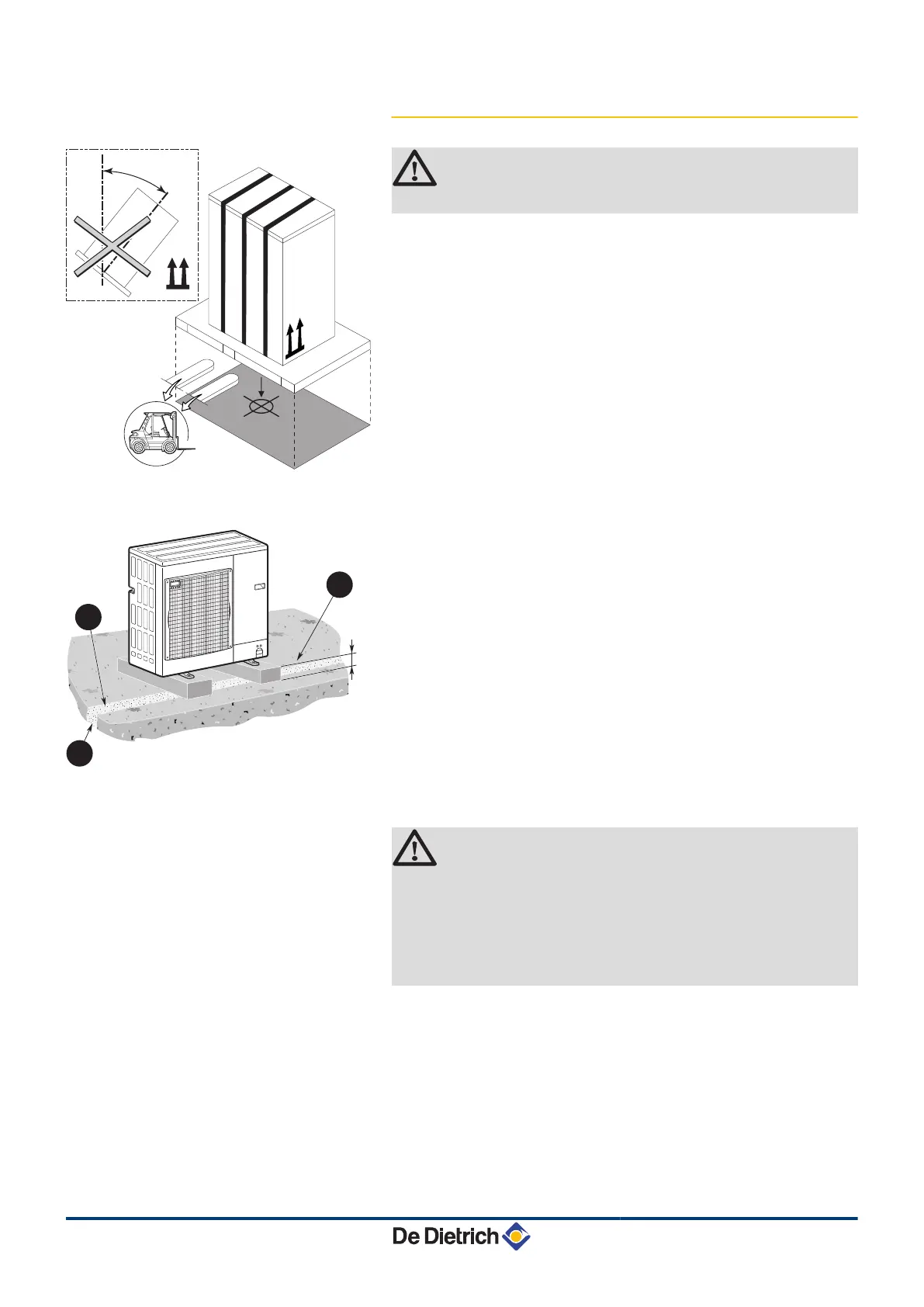

Installation on the ground
1
Concrete base frame
2
Condensates run-off
3
Install a run-off channel with pebble bed
4 Use the ground installation base kit available as optional
equipment: Package EH112.
4 Install the appliance on a solid, stable structure able to bear its
weight.
n
Condensates discharge
CAUTION
If the outside temperatures become negative, take the
necessary precautions to prevent the risk of freezing in the
evacuation pipes. Use package EH113 (Electrical resistor
for the condensate receiver tank).
Prevent any risk of the condensates freezing in an area
through which they flow.
>45°
M001456-A
200
1
2
3
M001452-A
AWHP MIT-IN iSystem 4. Installation
24/09/2012 - 300027606-001-01
26
