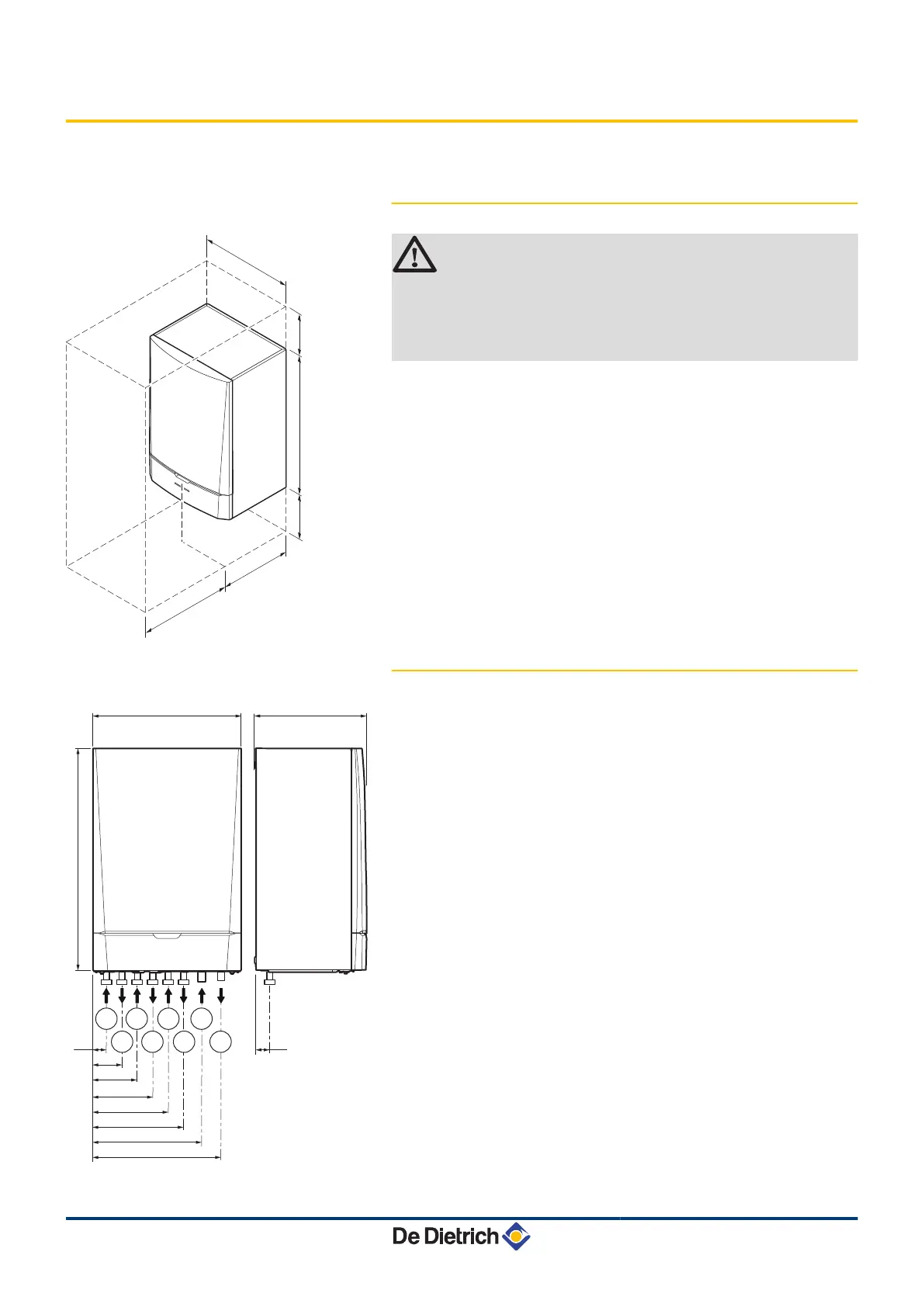

4.5 Installing the indoor module
4.5.1. Location of the appliance
CAUTION
4 Install the appliance in frost-free premises.
4 Fix the appliance to a solid wall capable of bearing
the weight of the appliance when full of water and fully
equipped.
4.5.2. Main dimensions
A
3-way valve circuit return (Option) - G1"
Z
3-way valve circuit outlet (Option) - G1"
E
Return direct circuit - G1"
R
Direct circuit flow - G1"
T
Back-up boiler inlet - G1"
Only MIT-IN/H
Y
Return to the back-up boiler - G1"
Only MIT-IN/H
U
Gas line
AWHP 6-16: 5/8" flare connection
AWHP 22-27: 3/4" flare connection
I
Liquid line
AWHP 6-16: 3/8" flare connection
AWHP 22-27: 1/2" flare connection
G
Exterior cylindrical threading, sealed by sheet gasket
T001898-C
600
min.1000
500
min.
250
min.
250
900
M002497-B
122
192
262
332
402
472
542
49 48
900
600
498
1
2
3
4
5
6
7
8
4. Installation AWHP MIT-IN iSystem
27
24/09/2012 - 300027606-001-01
