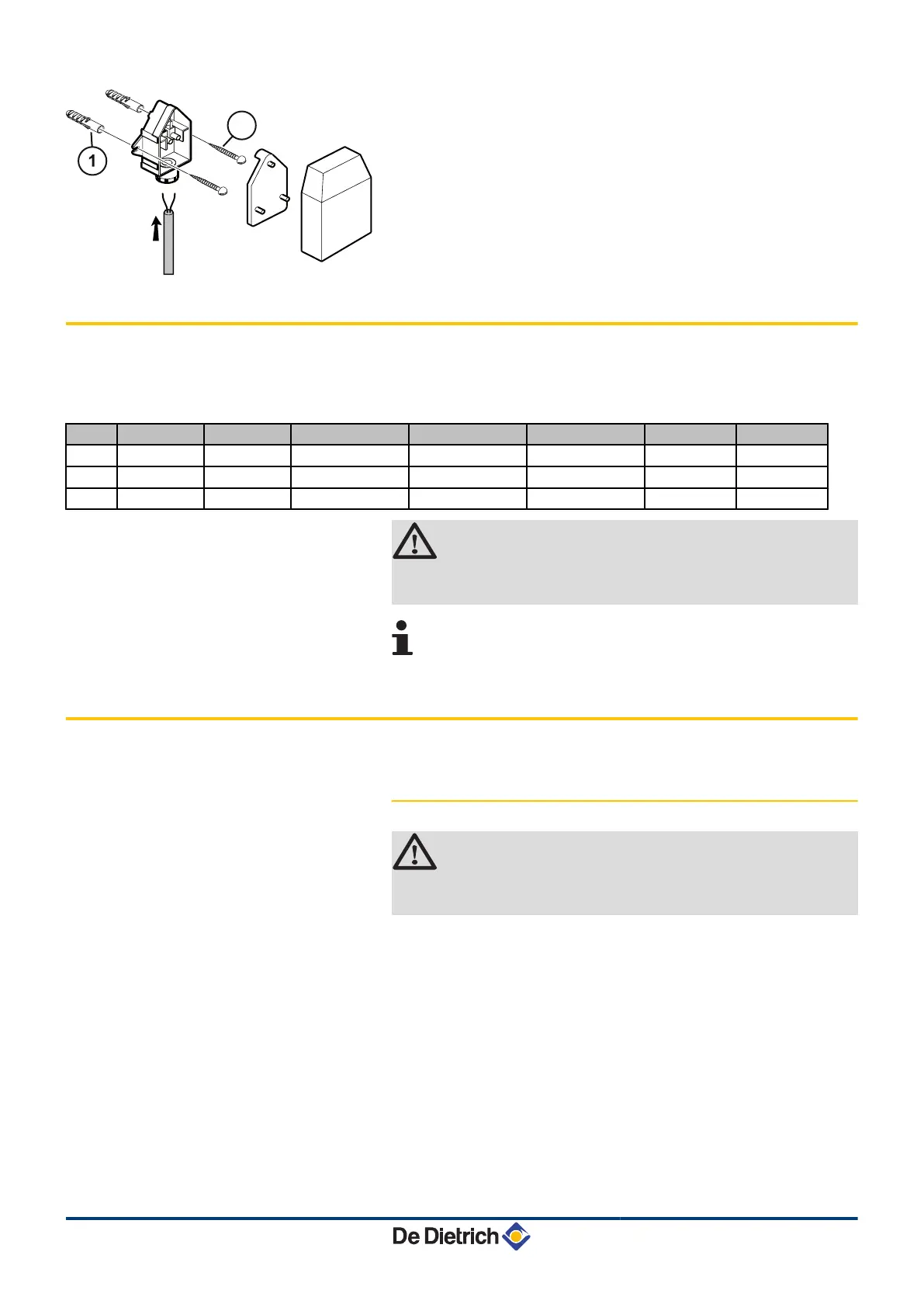

A
Inserts
Z
Ø4 wood screw
¼ For the connection of the outside temperature sensor, refer to
the chapter "Electrical Connections".
4.7 Combination with a DHW tank
In order to optimise domestic hot water production, the recommended
combinations of heat pumps and DHW tanks are:.
AWHP 6MR AWHP 8MR AWHP 11MR-TR AWHP 14MR-TR AWHP 16MR-TR AWHP 22TR AWHP 27TR
BL150 X X X
BL200 X X X X X
BL300
X X X X X
WARNING
An incorrect DHW tank/heat pump combination may
adversely affect user comfort.
An incorrect combination may lead to overconsumption
subsequent to the repeated tripping of the back-ups.
4.8 Refrigeration connection
4.8.1. Installing the pipes
DANGER
Only a qualified professional may carry out the installation
in conformity with in force legislation and standards.
4 Install the frigorific connection pipes between the inside and
outside modules.
4 Respect the minimum curve radii of 100 to 150 mm.
4 Respect the minimum and maximum lengths. ¼ See
chapter: "Location of the appliance", page 19.
If the frigorific connection between the outside module and the
inside module is less than 5 m, the following disruptions may
occur:
- Functional disruptions caused by a fluid overload
- Noise pollution caused by the circulation of the refrigerant
In this case, fit a refrigerant connection of at least 5 m by making
1 or 2 horizontal loops, as necessary, in order to limit such
annoyance and oil traps.
AWHP MIT-IN iSystem
4. Installation
24/09/2012 - 300027606-001-01
30
