DeDietrich AWHP MIT-IN iSystem Installation And Service Manual

Type BACKUP TYPE
setting
Back-up Output Bridge
Three-phase
/E2
Stage1 4 kW between C3 and
C2
Stage2 8 kW
Stage1 + 2 12 kW
Stage1 8 kW between C2 and
C1
Stage2 4 kW
Stage1 + 2 12 kW
Stage1 4 kW Remove bridge
Stage2 4 kW
Stage1 + 2 8 kW
/E1
Stage1 8 kW between C2 and
C1
4 kW Remove bridge

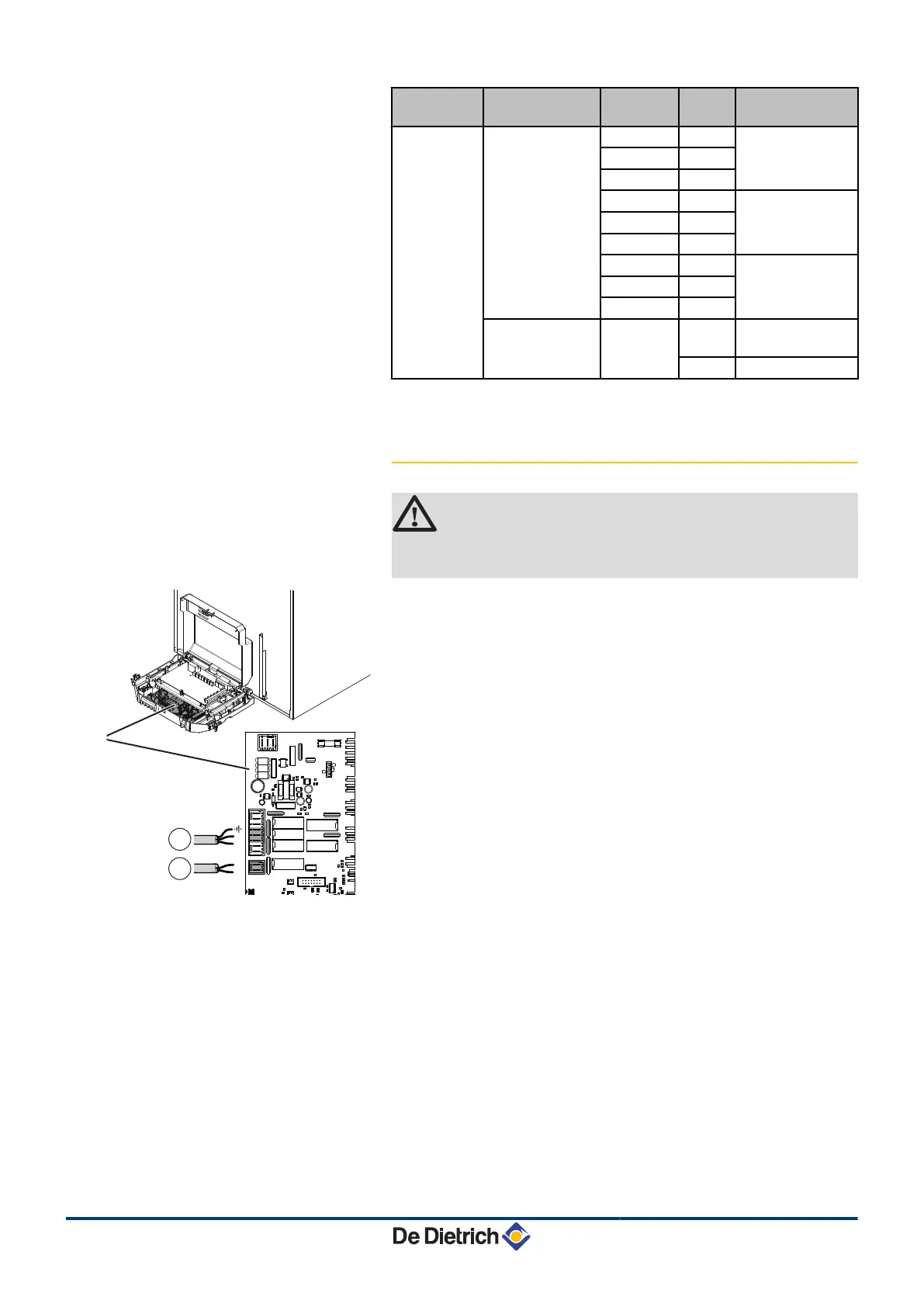

4.11.11. Connecting the hydraulic auxilary on the
inside module (MIT-IN/H only)
WARNING
Respect the polaritie of the terminals: Live (P), neutral
(N), and earth (*).
A
Back-up pump
Z
Burner (Volt free contact)
M002423-B
LN 21
1
2
PCU
4. Installation AWHP MIT-IN iSystem
49
24/09/2012 - 300027606-001-01
