DeDietrich AWHP MIT-IN iSystem Installation And Service Manual

Z
Single phase power supply: 230 V AC
CAUTION
The earth conductor must be longer than the live and
neutral conductors.
n

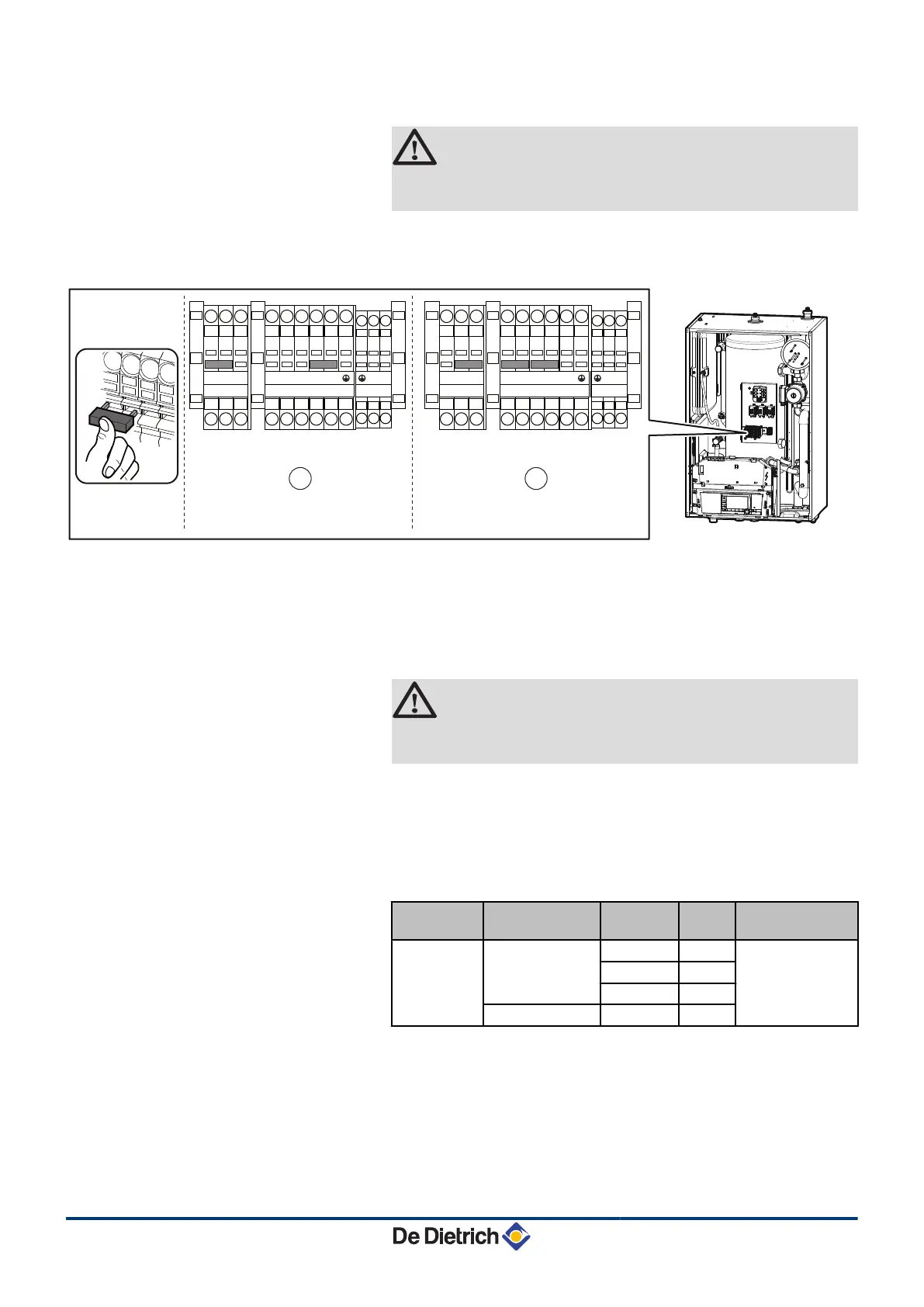

Fitting the jumpers and bridges
M002393-E
S2 S3
BUS<>HPBUS<>HP
1 2
C3
Configuration
C2 C1 L1
Alim appoint électriqueAlim appoint électrique
L2 L3 CN
S2 S3
BUS<>HPBUS<>HP
C3
Configuration
C2 C1 L1
Alim appoint électriqueAlim appoint électrique
L2 L3 CN
* *
A
Three-phase
Z
Single phase
*
For the various options for setting the bridge, see the
paragraph below, "Setting the output".
CAUTION
Check that the clips are correctly connected to the tab as
poor contact may lead to the connection overheating.
n
Output control
¼ For setting the BACKUP TYPE parameter, see: "Professional
settings", page 91
Type
BACKUP TYPE
setting
Back-up Output Bridge
Single phase
/E2
Stage1 2 kW between C2 and
C1
Stage2 4 kW
Stage1 + 2 6 kW
/E1
Stage1 2 kW
AWHP MIT-IN iSystem 4. Installation
24/09/2012 - 300027606-001-01
48
