CAUTION
Check the water flow rate in the system, which must be
higher by at least 4 to 5 l/min than the MIN.MES.FLOW.
value. Check the parameter FLOWMETER.
¼ See chapter: "Reading out measured values", page
88.
If the flow rate is too low, clean the filter upstream of the
plate heat exchanger.
¼ See chapter: "Cleaning the 400 µm filter", page
104.

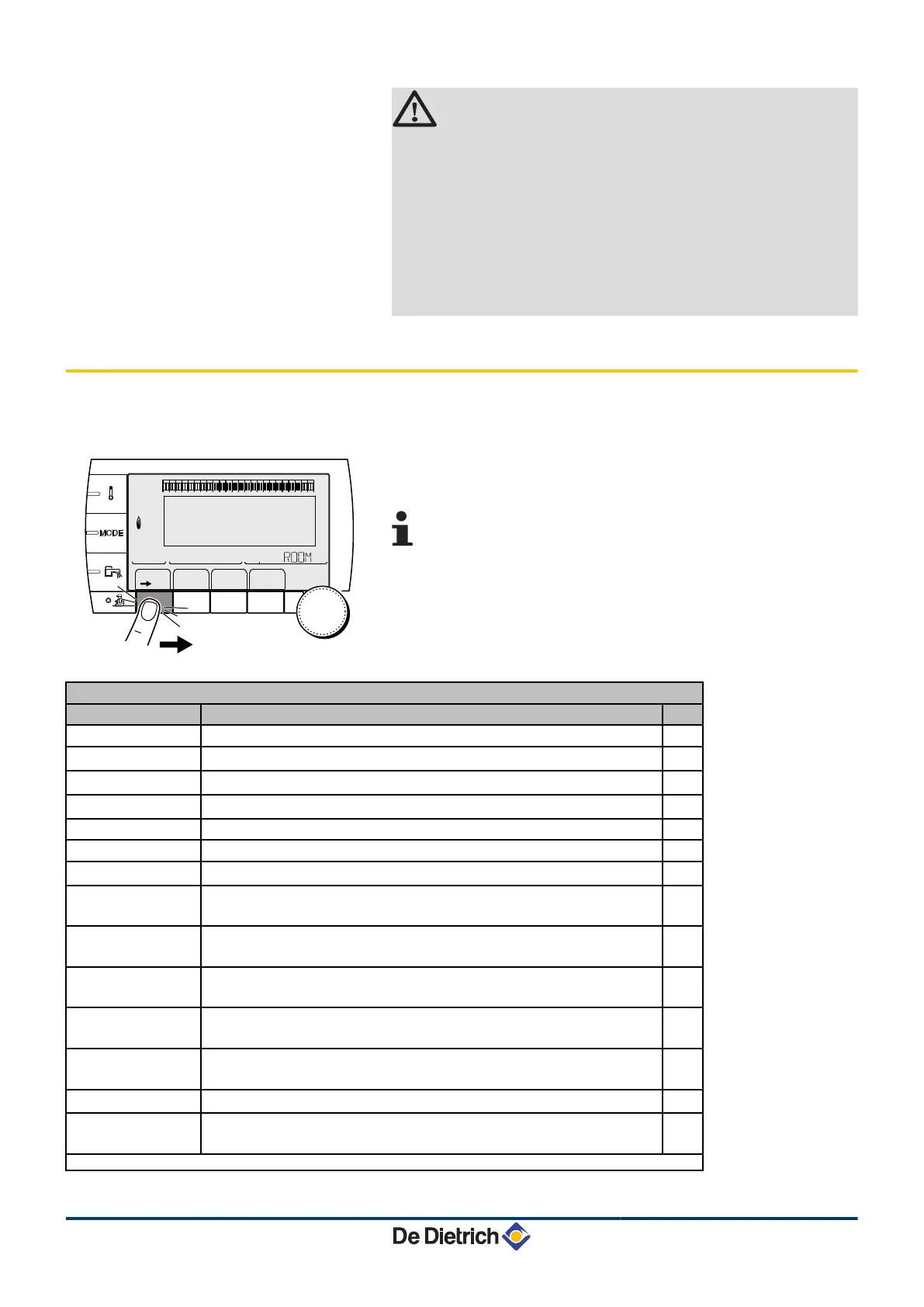

5.5 Reading out measured values
The various values measured by the appliance are displayed in the
#MEASURES menu.
1. To access user level: Press the
>
key.
2. Select the menu #MEASURES.
4 Turn the rotary button to scroll through the menus or
modify a value.
4 Press the rotary button to access the selected menu
or confirm a value modification.
¼
For a detailed explanation of menu browsing, refer
to the chapter: "Browsing in the menus", page 75.
User level - Menu #MEASURES
Parameter Description Unit
OUTSIDE TEMP.
Outside temperature °C
ROOMTEMP. A
(1)
Room temperature of circuit A °C
ROOMTEMP. B
(1)
Room temperature of circuit B °C
ROOMTEMP. C
(1)
Room temperature of circuit C °C
TEMP.MIT
Inside module flow sensor measurement °C
PRESSURE
Water pressure in the installation bar
WATER TEMP.
(1)
Water temperature in the DHW tank °C
STOR.TANK.TEMP
(1)
Water temperature in the storage tank °C
SWIMMING P.T.B
(1)
Water temperature of the swimming pool on circuit B °C
SWIMMING P.T.C
(1)
Water temperature of the swimming pool on circuit C °C
OUTLET TEMP. B
(1)
Temperature of the flow water in circuit B °C
OUTLET TEMP. C
(1)
Temperature of the flow water in circuit C °C
SYSTEM TEMP.
(1)
Temperature of the system flow water if multi-generator °C
T.DHW BOTTOM
(1)
Water temperature in the bottom of the DHW tank °C
(1) The parameter is only displayed for the options, circuits or sensors actually connected.
bar
1
1
2
2
r
c
STD
(
'
t
v
0 2 4 6 8 10 12 14 16 18 22 2420
p
b
AUTO
x
c
r
j
M
g
m
SUNDAY 11:45
C002219-D-04
AWHP MIT-IN iSystem 5. Commissioning
24/09/2012 - 300027606-001-01
88
