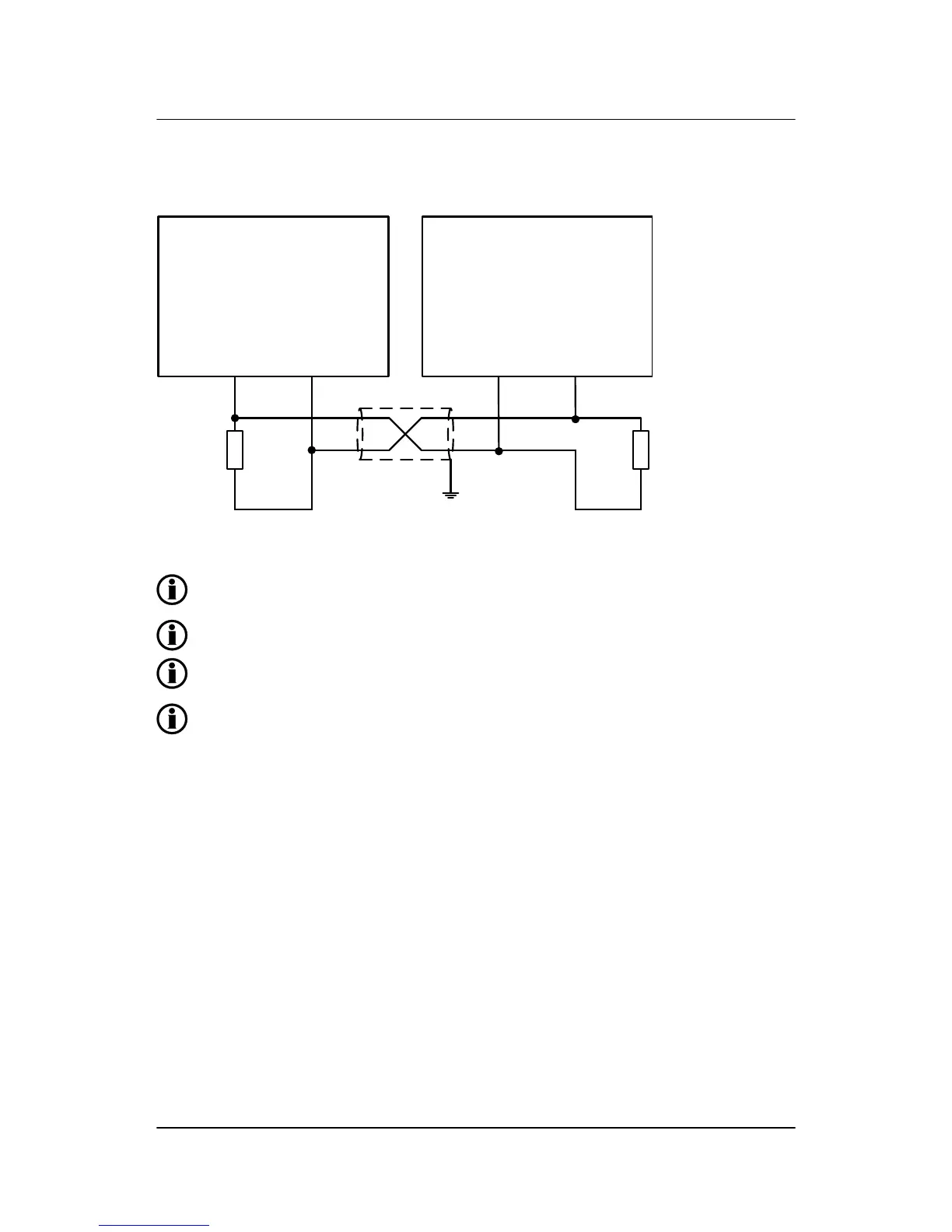

6.1.10 CAN bus engine communication (option H7)
Multi-line 2, CAN option H7
CAN - L
A3 A2 A1
GND CAN - H
Engine controller
CAN - L CAN - H
RR
Connect shield to ground at one end only. Shield ends must be insulated with tape or insula-
tion tubing.
Use shielded twisted cable.
End resistor R = 120 Ohm.
The terminating resistor at the engine side might not be needed, please refer to the engine
manufacturer’s literature.
ML-2 installation instructions 4189340582
UK
Wirings
DEIF A/S Page 49 of 64
