Deif GPU-3 Hydro Installation Instructions

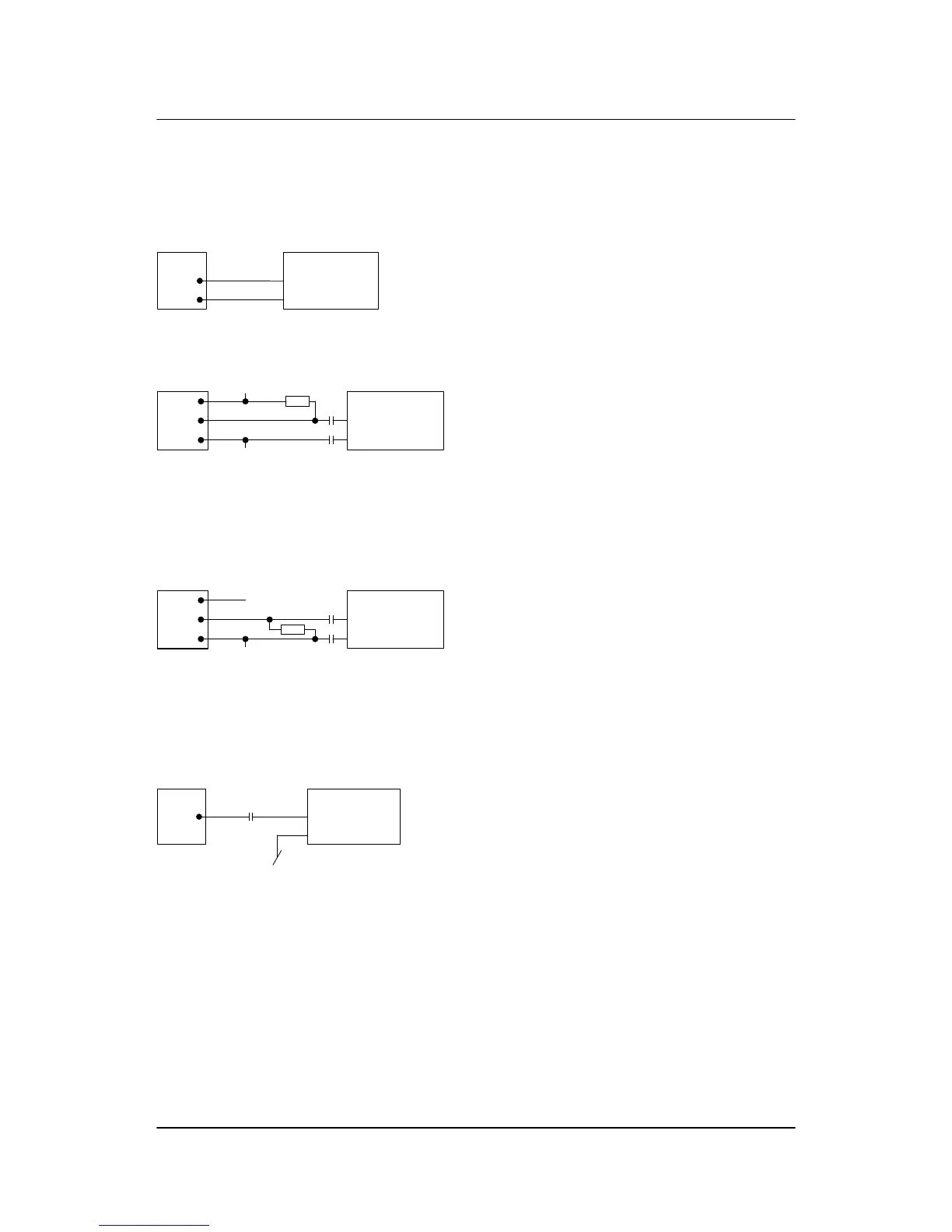

6.1.20 Magnetic pickup (MPU) input (option M4)
Magnetic pickup (MPU)
Multi-line 2
100
MPU
Output
101
NPN sensor
Multi-line 2
100
NPN
Output
101
+V DC
0V DC
R
+12/24V DC
0V DC
C
C
C = 22 nF, 100 V foil type
R = 1200 Ω @ 24 V DC, 600 Ω @ 12 V DC
PNP sensor
Multi-line 2
100
PNP
Output
101
+V DC
0V DC
+12/24V DC
0V DC
C
C
R
C = 22 nF, 100 V foil type
R = 1200 Ω @ 24 V DC, 600 Ω @ 12 V DC
Charger, W output
Multi-line 2
100
Charger
W
101
C
C = 22 nF, 100 V foil type
ML-2 installation instructions 4189340582
UK
Wirings
DEIF A/S Page 55 of 64
