Deif GPU-3 Hydro Installation Instructions

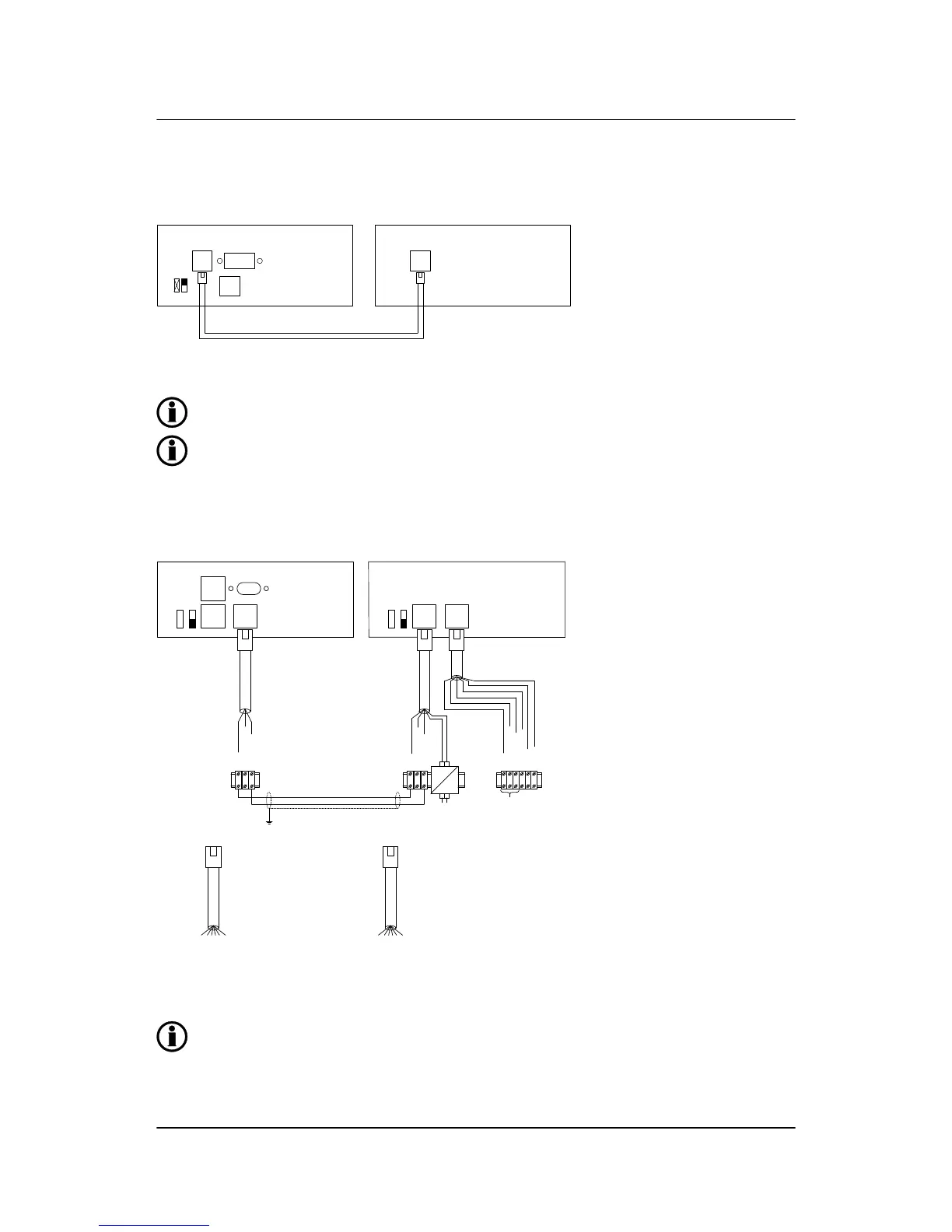

6.1.25 Additional operator's panel, AOP-1 (option X3)
AOP-1
CAN 2
ML - 2
Standard display DU-2
OFF
ON
2 1
End resistor
DU-2
Additional operator´s panel AOP-1
The maximum distance between the DU-2 and the AOP-1 is 0.5 m.
The cable for connection between the AOP-1 and the DU-2 is included in the AOP-1 delivery.
6.1.26 Additional operator's panel, AOP-2 (option X4)
Standard display DU-2 Additional operator´s panel AOP-2
OFF
ON
App./Bootl.
End Res.
CAN 1
AOP-1
CAN 2
ML - 2
Red Red/white
Terminal block
OFF
ON
App./Bootl.
End Res.
CAN 1
Red Red/white
DIN Rail
5V DC
24V DC
+
-
+
-
Black Black/White
Brown/white Brown/white
Red Brown/white Red/white Black/white Black Brown
6 - Black: GND
5 - Black/White: +5 VDC
4 - Brown: Not used
3 - Red: CAN L
2 - Brown/white: CAN GND
1 - Red/white: CAN H
6 - Black: Relay common
5 - Black/White: Relay NO
4 - Brown: Relay NC
3 - Red: CAN L
2 - Brown/white: CAN GND
1 - Red/white: CAN H
Left CAN port (CAN 1) Right CAN port (CAN 2)
1
2
1
2
Cable shield
CAN 2
1...61...6
Comm. to
next units
NC
Common
NO
Status relay
It is recommended to keep a fair distance to power cables.
ML-2 installation instructions 4189340582
UK
Wirings
DEIF A/S Page 59 of 64
