6.1.7 Modbus, RS-232 (option H9.2)

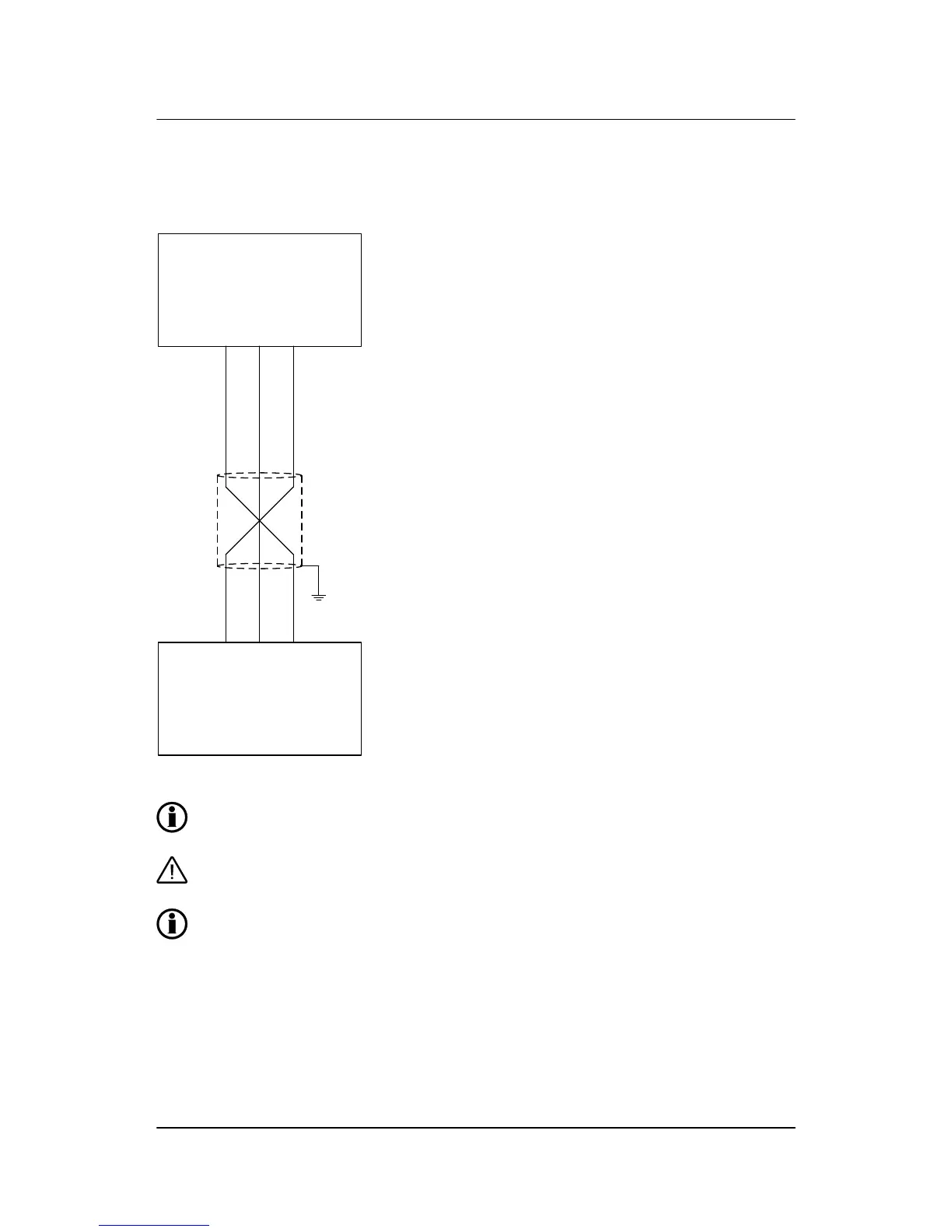

Connection to an external controller (PLC, PC, etc.) or a modem (GSM or RTC):
Multi-line
GND
30 32 34
TxD RxD
TxD
External controller
or modem
RxD Gnd
Connect shield to earth at one end only. Shield ends must be insulated with tape or insulation
tubing.
This solution is only feasible if the COM line is insulated. Check PLC/other device before con-
necting. A non-insulated COM line may result in damage to the equipment.
Cable: Belden 3106 A or equivalent. 22 AWG (0.6 mm
2
) shielded, <40 mΩ/m, min. 95 % shield
coverage.
ML-2 installation instructions 4189340582
UK
Wirings
DEIF A/S Page 46 of 64
