Deif GPU-3 Hydro Installation Instructions

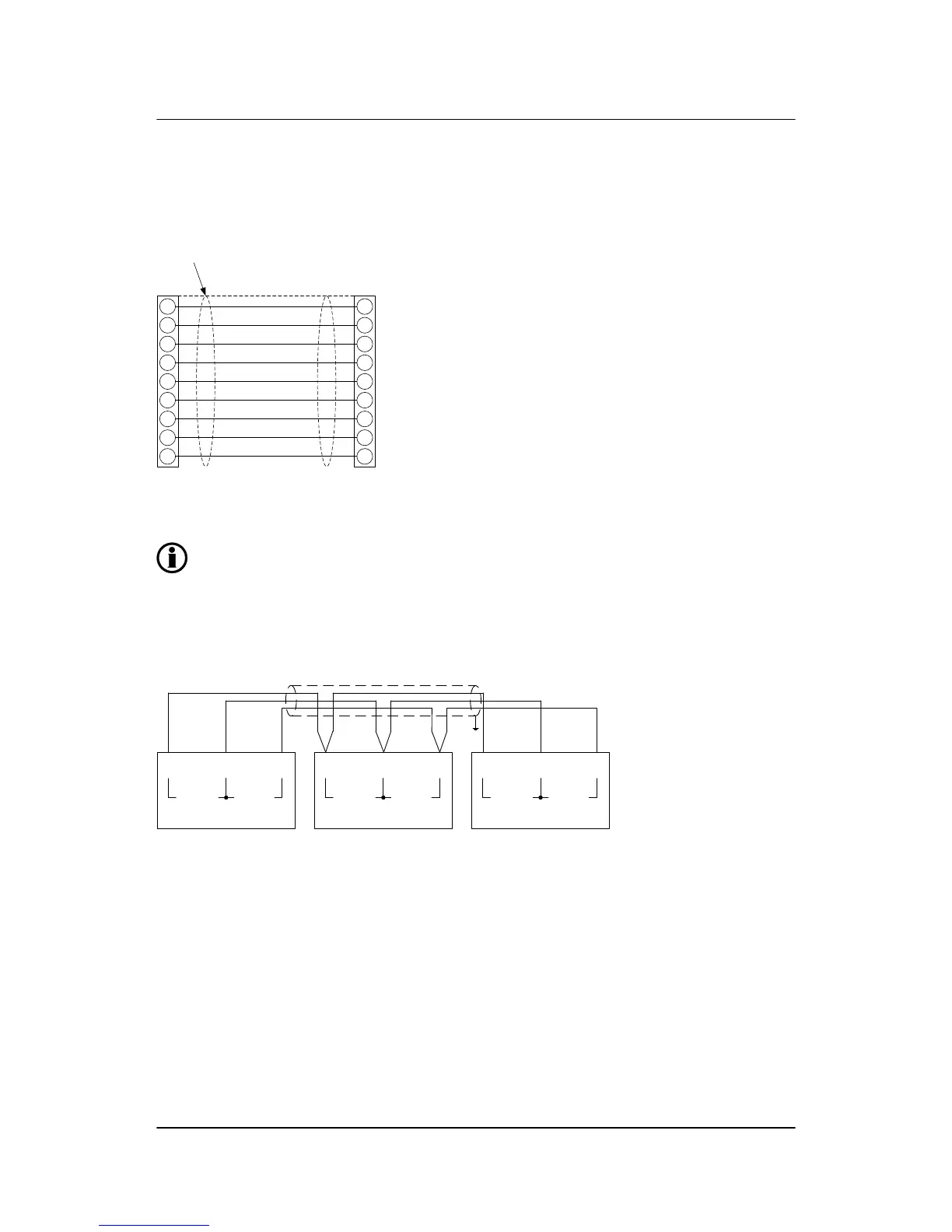

6.1.11 Display cable (option J)
A standard computer extension cable can be used (9-pole SUB-D male/female plugs) or a cable can be tail-
ored.
4
5
6
7
8
9
2
1
3
1
2
3
4
5
6
7
8
9
9-p SUB D
male
9-p SUB D
female
Connect shield to plug metallic casing
Wires min. 0.22 mm
2
, max. cable length 6 m.
Cable types: Belden 9540, BICC H8146, Brand Rex BE57540 or equivalent.
No use of tools or brute force when tightening finger-screws on display cable.
6.1.12 Load sharing lines (option G3)
Screened, twisted cable is recommended to prevent disturbances on the load sharing lines.
37 38 39
PS COMMON QS
LOAD SHARING LINES
±0...5 ±0...5
V DC V DC
Multi-line 2
37 38 39
PS COMMON QS
LOAD SHARING LINES
±0...5 ±0...5
V DC V DC
Multi-line 2
37 38 39
PS COMMON QS
LOAD SHARING LINES
±0...5 ±0...5
V DC V DC
Multi-line 2
Always use screened cable
ML-2 installation instructions 4189340582
UK
Wirings
DEIF A/S Page 50 of 64
