Pin number
F
unction
Note
9
Illumination analogue dimmer
NC
Dimmer input. Dimmer range 7 to 30 V DC
Consumption max. 30 mA
10
Illumination GND
11
Illumination +
Optional calibration switch and resist
or not shown, see
Commissioning
for details.
NO
TE

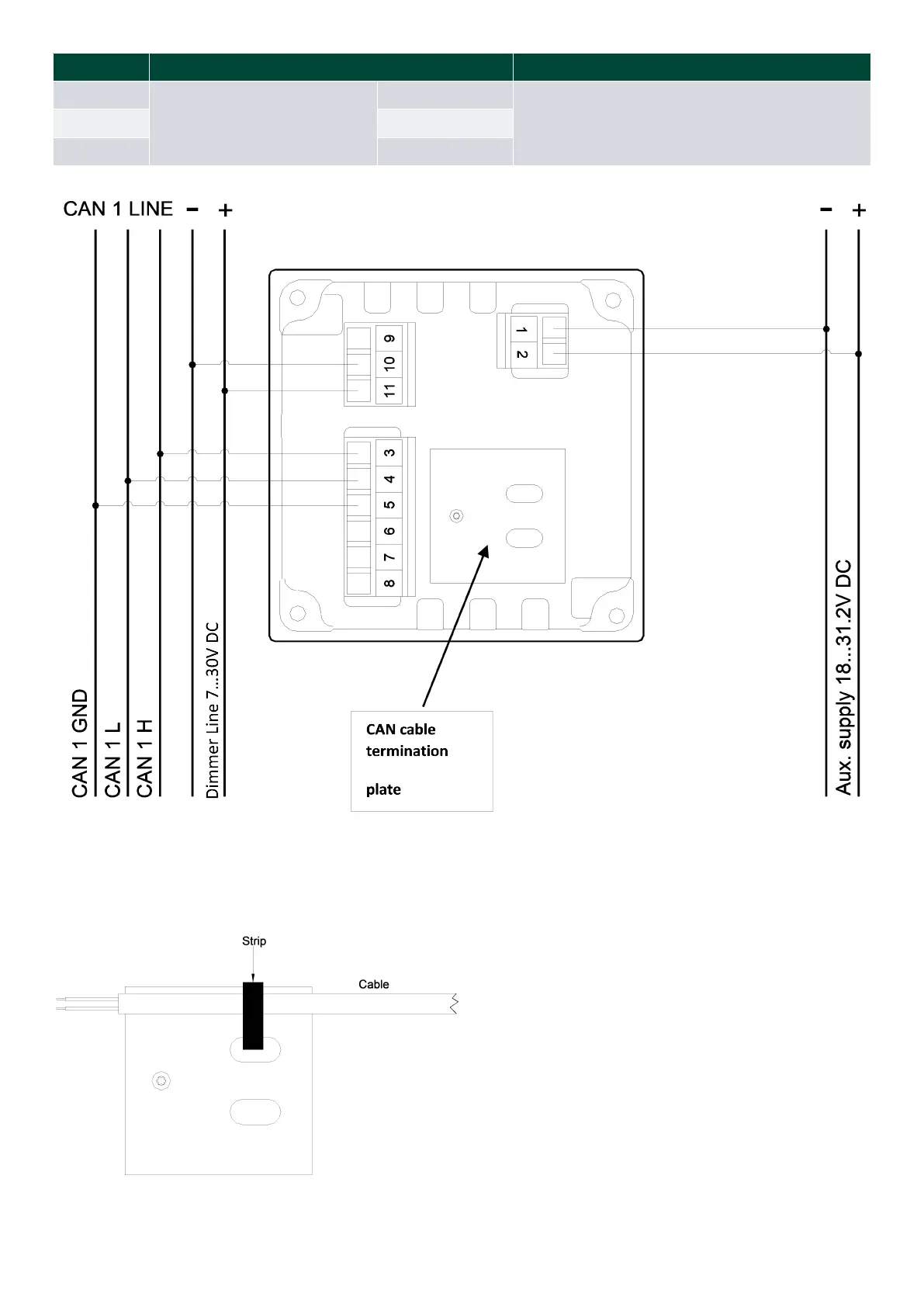

The plate shown at the arr
ow is for f
astening the CAN cable with a strip. The strip is not included.
Installation and commissioning guide 4189350024O EN
Page 13 of 39
12
14
Table of Contents
Table of Contents
2
XL Wiring and Installation
6
Wiring
6
Analogue Input Indicators
6
Rudder Potentiometer Analogue Indicator
9
Dimmer Setup for Analogue Indicators
10
Dual Canopen Indicators
10
Dimmer Setup for Dual Canopen Indicators
11
Scan Input Indicators
12
Dimmer Setup for Scan Indicators
14
Dimensions and Panel Cutout
15
XL Dimensions
15
XL Panel Cutout
15
Mounting XL Indicators
16
BW Wiring and Installation
17
Wiring
17
Dimmer Wiring
17
Cable Glands
17
Dimensions and Drilling Template
18
BW Dimensions
18
Drilling Template
19
Mounting BW Indicators
19
BRW-2 Wiring and Installation
20
Wiring
20
Overview
20
Analogue Input Terminal Overview
20
Canopen Input Terminal Connections
21
Dimmer Wiring
21
Dimensions and Drilling Template
23
Brw-2
24
Drilling Template
24
Replacement of XL192 Indicator in BRW-2
24
Overview
24
Replacement Instructions
25
Adjustment Help for Analogue Input Indicators
25
Commissioning
27
Commissioning Preparation
27
Commissioning Analogue Indicators
27
Special 4 to 20 Ma Functionality
27
Adjustment of Single Analogue Input Indicators
27
Adjustment Functionality
28
Out of Range Definition
28
Commissioning Scan Indicators
28
Start Setup Mode
29
Synchronise XL Indicators over CAN
29
Replacing Indicators in a Calibrated System
29
Setup Indicators Without 360° Scales
29
Setup Indicators with 360° Scales
31
Commissioning Single and Dual Canopen Indicators
31
Termination of the Canopen Line
32
Error Handling
33
Analogue 240° Indicators
33
Analogue 360° Indicators
33
CAN 240° Indicators
34
CAN 360° Indicators
34
Appendix A - Pointer Position Examples
35
Appendix B: Pointer Positions Based on Input
36
Standard Analogue Indicators
36
Rudder Indicators
36
Standard Azimuth Indicators
37
Analogue SIN/COS Azimuth Indicators
38
