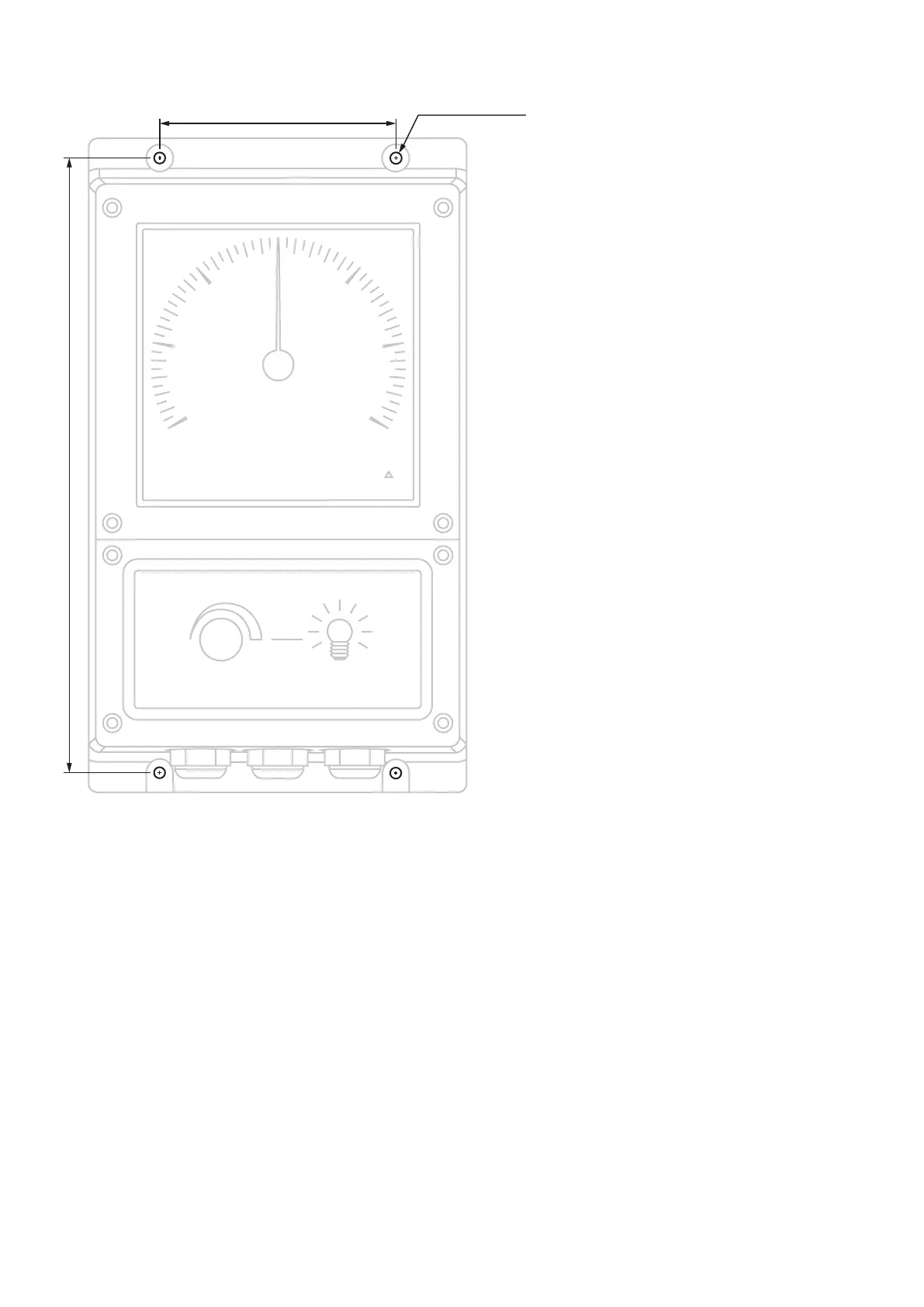

4.2.2 Drilling template
150.0 (5.90)
390.0 (15.35)
4 × Ø7.0 (Ø0.27)
NOTE The drawing is only a guideline and is not to scale.
4.3 Replacement of XL192 indicator in 
4.3.1 Overview
This product is only relevant for replacement of existing  products.
Standard voltage for supply and illumination is 24 V DC. Connect the illumination supply 24 V DC to terminals position 5 and
6. For personal protection, the terminal marked “EARTH” must be connected to the ship’s hull. This is also recommended in
order to avoid static electricity influencing the instrument accuracy.
The potentiometer marked “MAX. ADJ” located between the two connectors can be used for small adjustments of the
deflection of the instrument  available on the replacement PCB  to fit the scaling of the indicator to the
existing installation.
Installation and commissioning guide 4189350024O EN
Page 24 of 39
