Deif XL Installation And Commissioning Guide

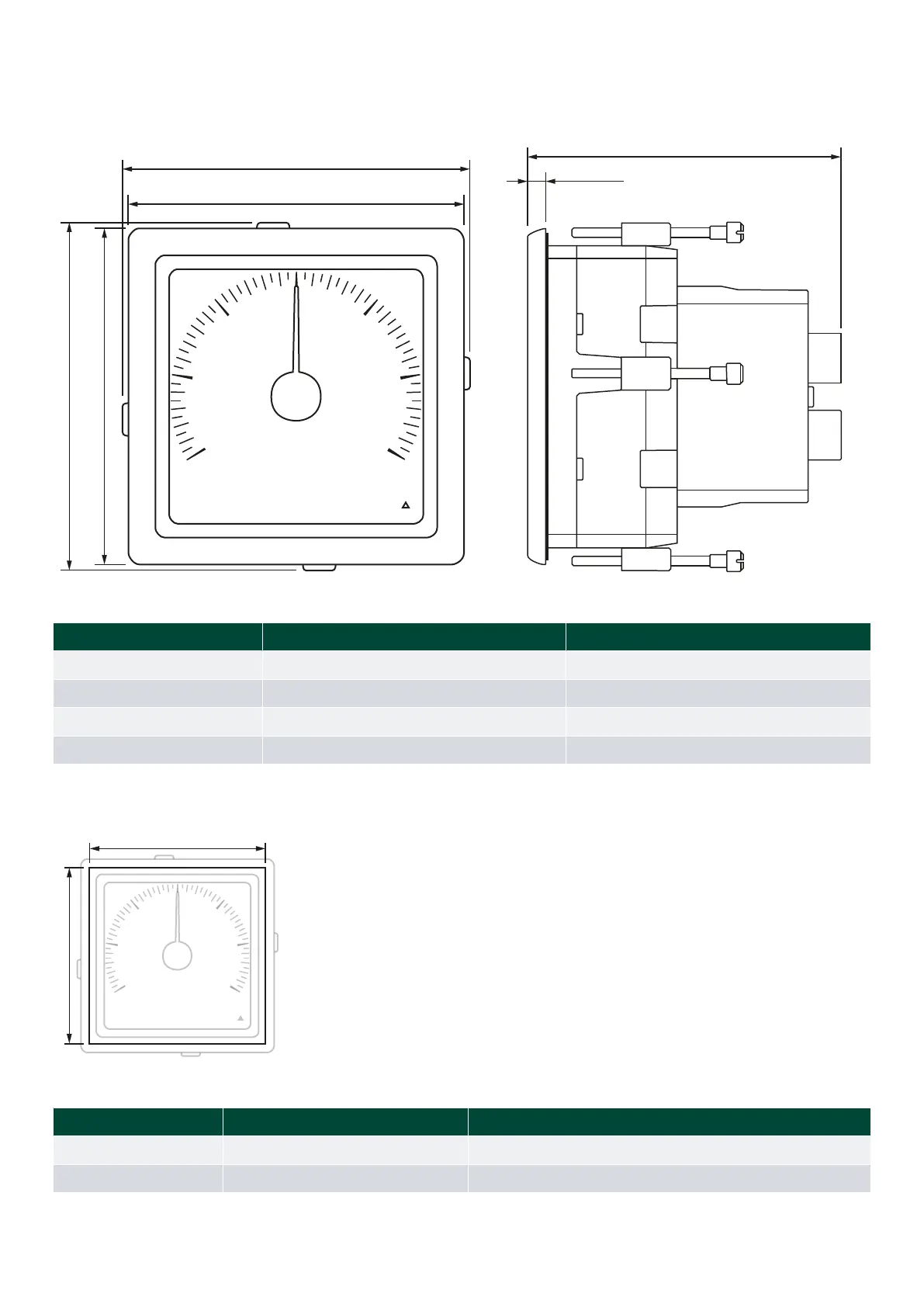

2.2 Dimensions and panel cutout
2.2.1 XL dimensions
B
A
A
B
96.0 (3.78)
5.4 (0.27)
XL dimensions in millimeters (inches)
Product
A B
XL72 80.5  77.0 
XL96 105.5  102.0 
XL144 152.0  148.0 
XL192 200.0  196.0 
2.2.2 XL panel cutout
A
A
XL panel cutout dimensions
Indicator
A Tolerance
XL72 68.5   
XL96 92.5   
Installation and commissioning guide 4189350024O EN Page 15 of 39
