NOTE In general, CAN 1 GND should not be connected. In case of noisy environments, try to connect the cable screen to
CAN 1 GND. Please also see Commissioning.

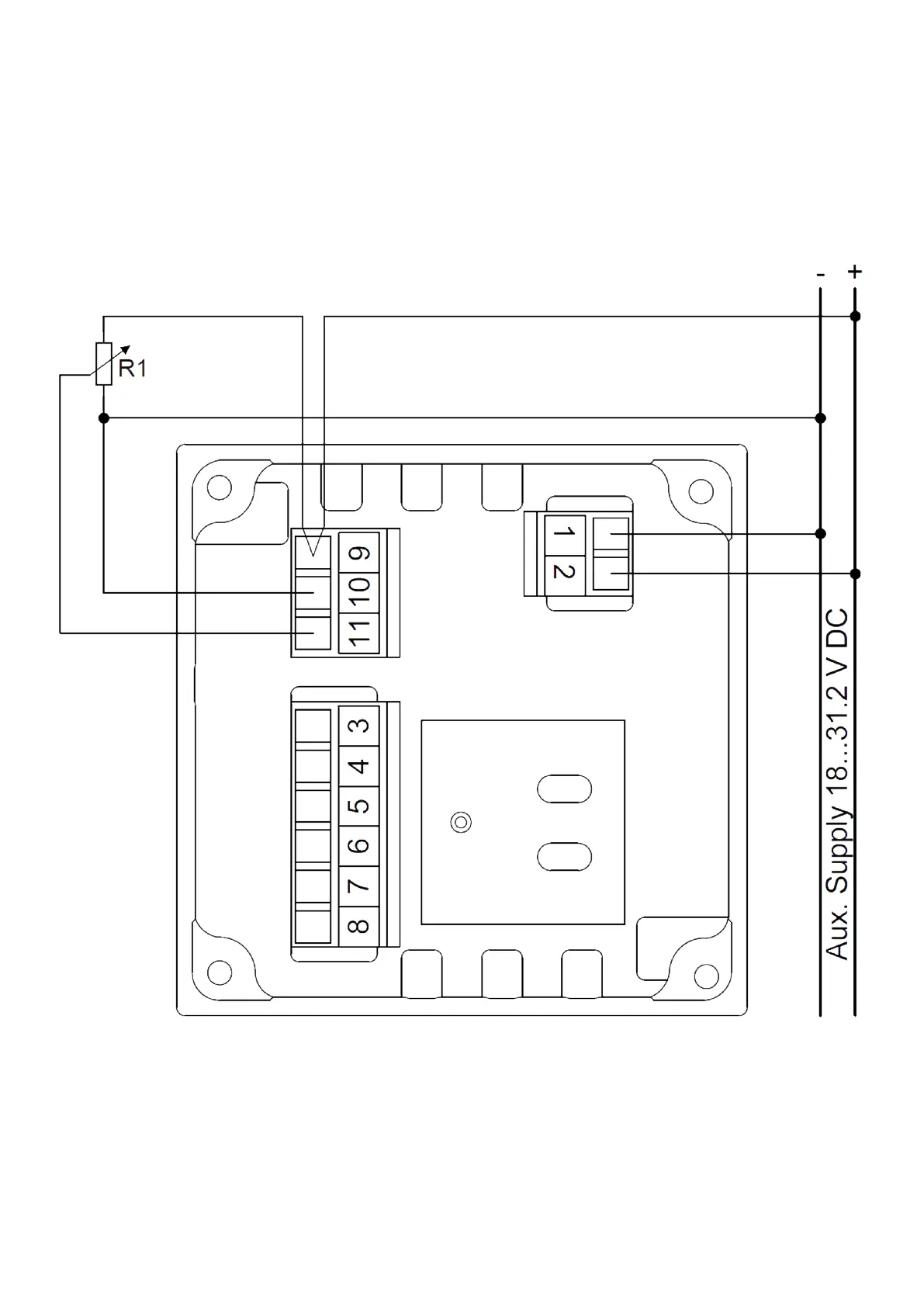

2.1.7 Dimmer setup for sCAN indicators
The illumination can only be controlled from the dimmer line on terminals 10 and 11.
A dimmer potentiometer can control one or several indicators, like the analogue types. As pin 9 is not used internally, it
can be used as a wire junction point for easier wiring.
Installation and commissioning guide 4189350024O EN Page 14 of 39
