If no new value was stored (switch still closed), wait until seconds. Then the calibration sequence will be terminated
without storing a new setting and the indicator pointer will move back to the scale position given by the present sensor/
input value (normal mode).
Set minimum position
The sensor/input must be positioned at desired minimum value and on the indicator, the set-up switch must be closed:
• After 5 seconds, the indicator pointer will move to scale zero (just check, no action)
• After 10 seconds, it will move to maximum scale value (check, no action)
• After 15 seconds, it will move to minimum scale value (check, no action)
• Between 10 and 15 seconds, the new maximum scale value is stored when set-up switch is opened (the LED will flash
once for verification)
NOTE
When controlled by a processor, a switch close time of 15.5 to19.5 seconds must be used.
If no new value was stored (switch still closed), wait until seconds. Then the calibration sequence will be terminated
without storing a new setting and the indicator pointer will move back to the scale position given by the present sensor/
input value (normal mode).
Set maximum position
The sensor/input must be positioned at desired maximum value and on the indicator, the set-up switch must be closed:
• After 5 seconds, the indicator pointer will move to scale zero (just check, no action)
• After 10 seconds, it will move to maximum scale value (check, no action)
• Between 10 and 15 seconds, the new maximum scale value is stored when set-up switch is opened (the LED will flash
once for verification)
NOTE
When controlled by a processor, a switch close time of 10.5 to 14.5 seconds must be used.
If no new value was stored (switch still closed), wait until seconds. Then the calibration sequence will be terminated
without storing a new setting and the indicator pointer will move back to the scale position given by the present sensor/
input value (normal mode).
Changing pointer rotation
If it is necessary to change the pointer rotation from the default CW to CCW, this can be done by placing the input/sensor
maximum value at scale minimum and the input/sensor minimum value at scale maximum.

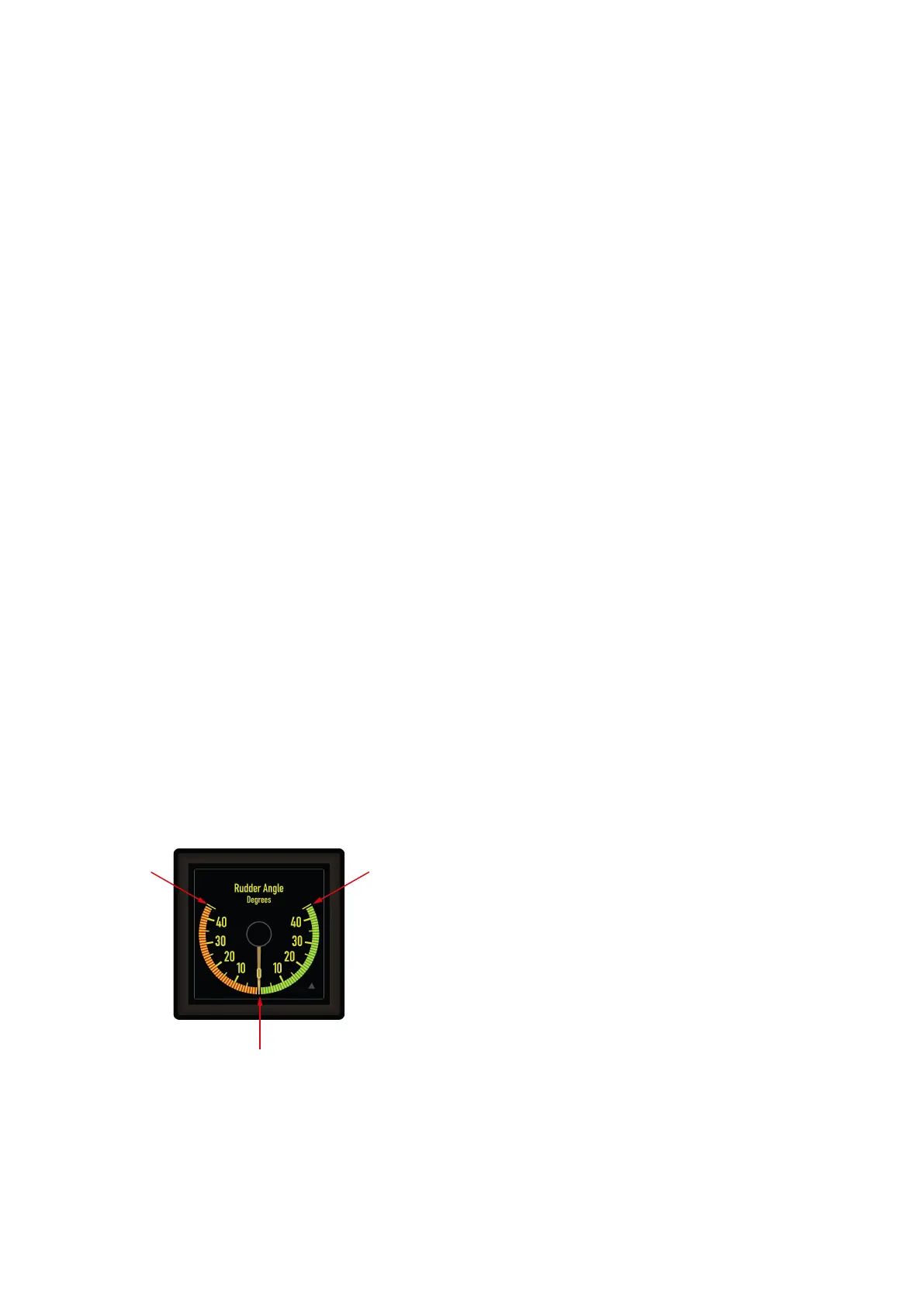

Zero scale value
Maximum scale
value
Minimum scale
value
This could be relevant on rudder indicators where the pointer is “hanging” as shown above, and in systems (same sensor)
where they are used together with the “standing” pointer as shown previously.
On both indicators, the shown rudder angle 45 degree port side (red) is set-up as maximum value. This will give the
“standing” type CW pointer rotation and the “hanging” CCW pointer rotation.
Installation and commissioning guide 4189350024O EN
Page 30 of 39
