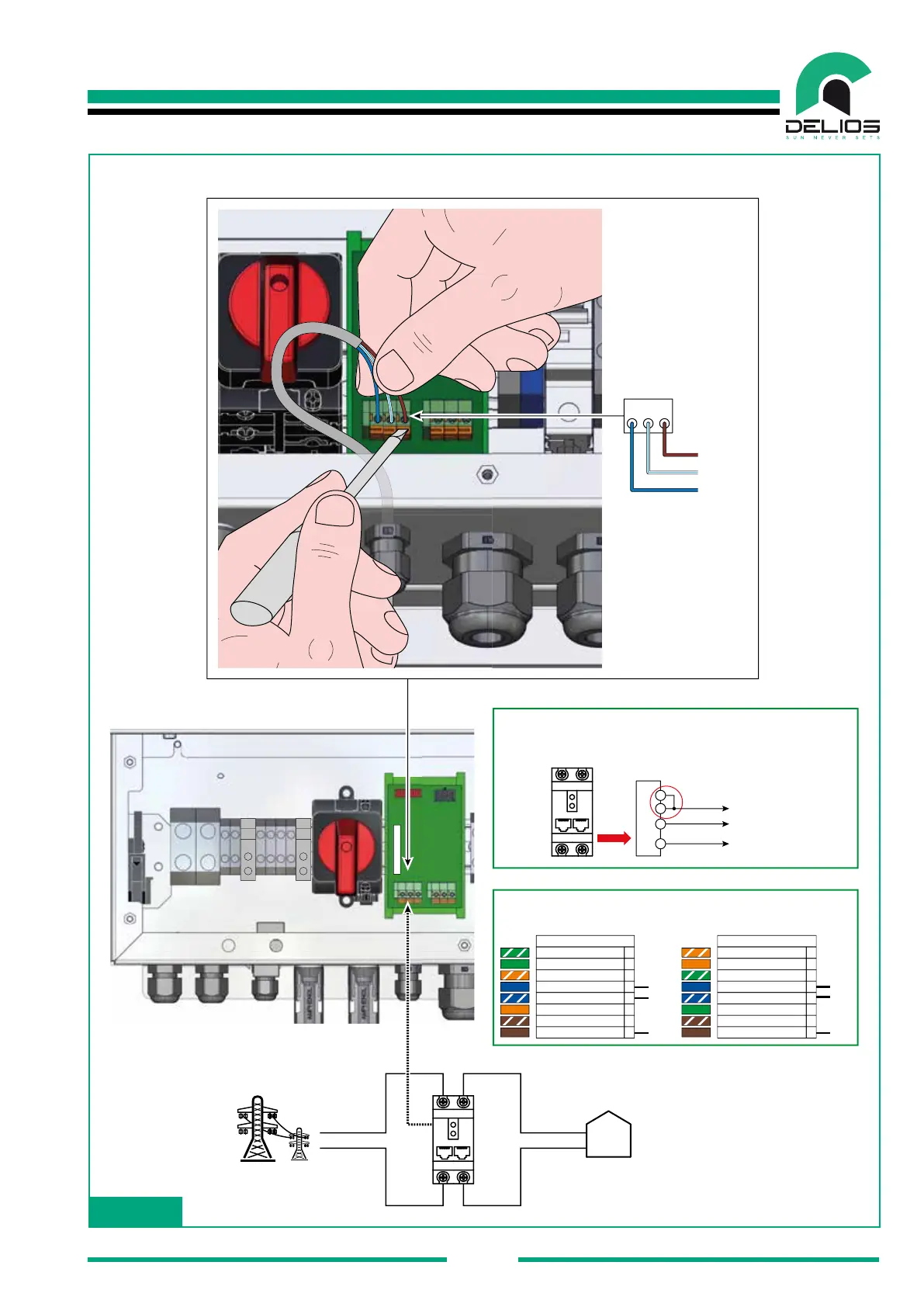

Fig. 15
L
N
NN
12
L
N
RS485
1Green/White Tracer
RJ45 Pin#
T568A
2Green
3
Orange/White Tracer
4
Blue
5
B
A
Blue/White Tracer
6
Orange
7
Brown/White Tracer
8
Brown
1
Green/White Tracer
RJ45 Pin#
T568B
2
Green
3
Orange/White Tracer
4
Blue
5
B
A
Blue/White Tracer
6
Orange
7
Brown/White Tracer
8
Brown
GND GND
Typical RJ45 wiring
ET112 RS485 MODBUS terminals connecon*
(*) Refer to ET112 for further connecon details
Line terminaon bridge
3
5
4
6
To terminal B
To terminal A
To terminal GND
T
A-
B+
GND
RS485 MODBUS* Connections
AB 0
GND
B
A
