Dell EMC FS25 - Installing the Replacement DAE5 S on Rails

Das Gehäuse ist schwer und sollte nur von zwei Personen in einem Rack installiert werden. Zur
Vermeidung von körperlichen Verletzungen und/oder der Beschädigung des Gerätes, bitte das
Gehäuse nicht ohne die Hilfe einer zweiten Person anheben und einbauen.
Il contenitore è pesante e dev'essere installato nel rack da due persone. Per evitare danni
personali e/o all’apparecchiatura, non tentare di sollevare ed installare in un rack il contenitore
senza un sollevatore meccanico e/o l’aiuto di un’altra persona.
Debido a su considerable peso, la instalación del compartimento en el bastidor deben realizarla
siempre dos personas. Para evitar daños personales o en el equipo, el compartimento no debe
levantarse ni instalarse en el bastidor sin la ayuda de un elevador mecánico o de otra persona.
Procedure
1. Remove the four screws (two per side) that secure the front of the enclosure to the front
vertical channels of the cabinet, and save the screws (Figure 22 on page 36).

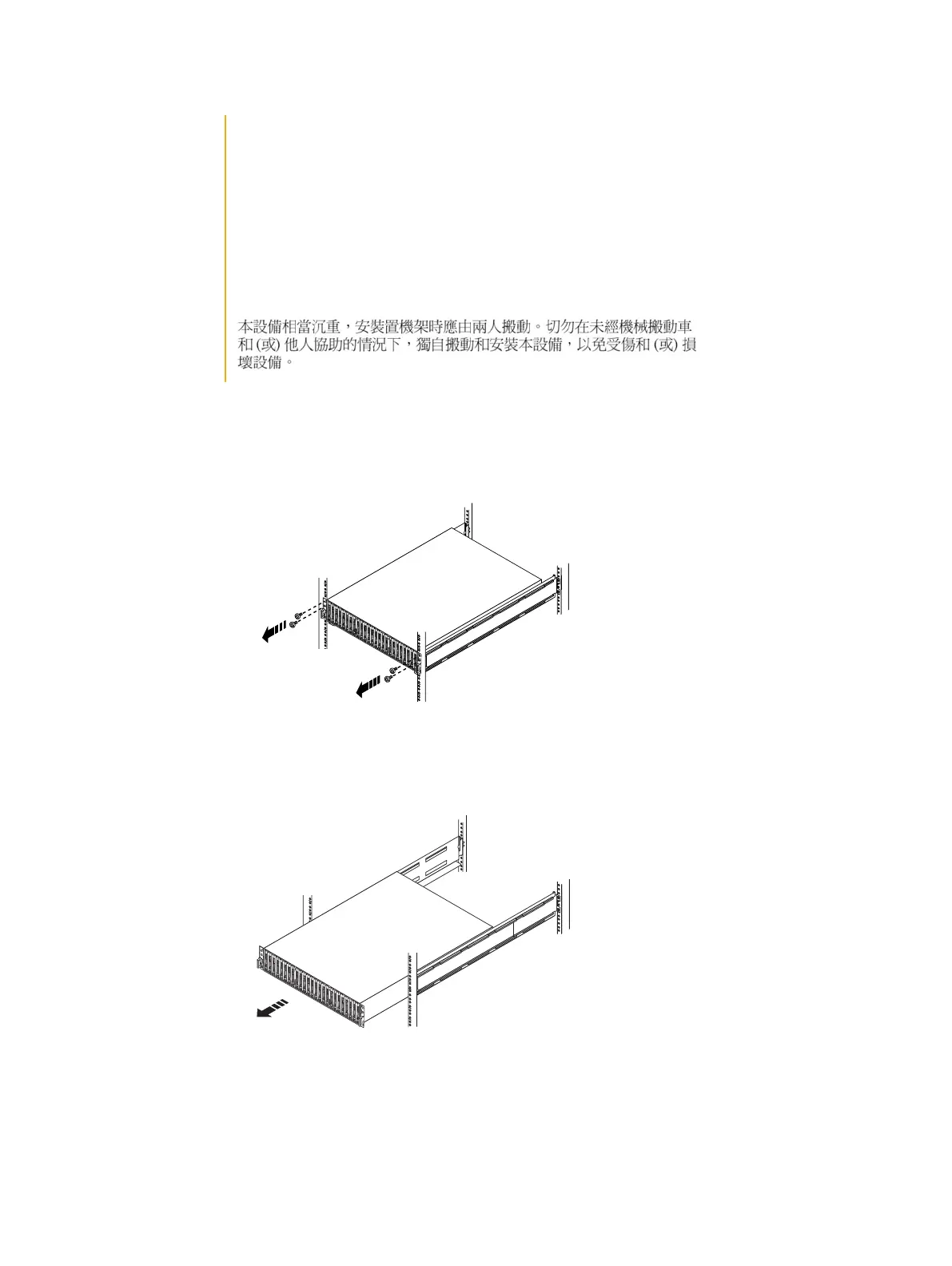

Figure 22 Removing the screws that secure the enclosure to the front of the cabinet
CL4727
2. With help from another person, slide the enclosure out of the cabinet and place it on a
sturdy, static-free work surface (Figure 23 on page 36).
Figure 23 Sliding the enclosure out of the cabinet
CL4724
Installing the empty replacement DAE5S on the rails
Procedure
1.
With help from another person, lift the enclosure and, from the front of the cabinet/rack,
slide the enclosure onto the rails.
Replacing a 25-Slot Disk-Array Enclosure
36 Dell EMC FS25 SSD Shelf Guide Field Replacement Unit Guide
