Dell EMC FS25 - LCC Power LED; LCC Fault LED; Power;Cooling Module Fault LED

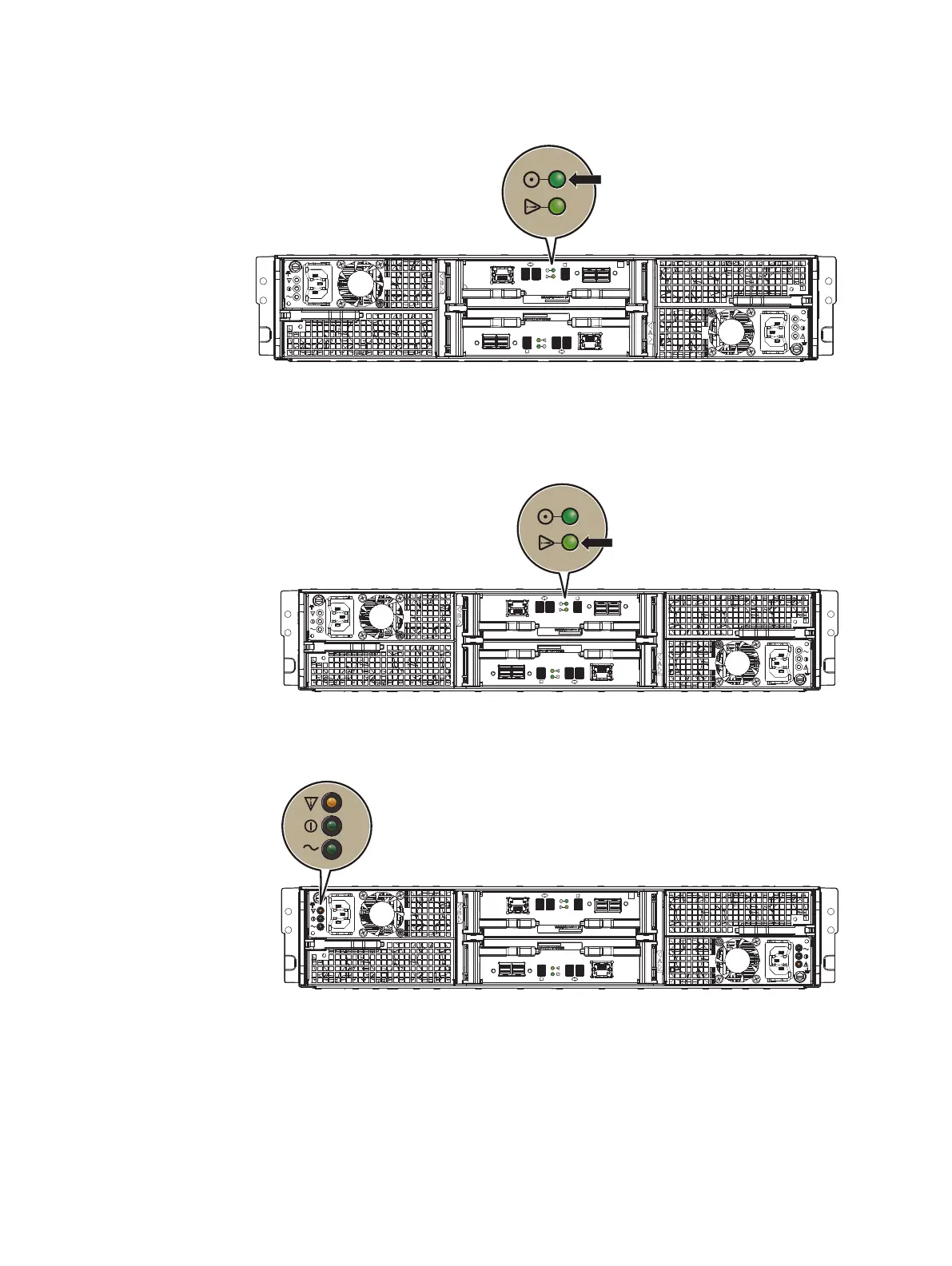

Figure 36 LCC power LED
CL5986
#
#
2. Verify that no amber fault LEDs on the DAE5S are lit:
l
LCC fault LED - one per LCC.
Figure 37 LCC fault LED
#
#
CL5982
l
Power/cooling module fault LED - one per module.
Figure 38 Power/cooling module fault LED
CL5987
#
#
l
Disk fault LED - one per disk.
Replacing a 25-Slot Disk-Array Enclosure
46 Dell EMC FS25 SSD Shelf Guide Field Replacement Unit Guide
