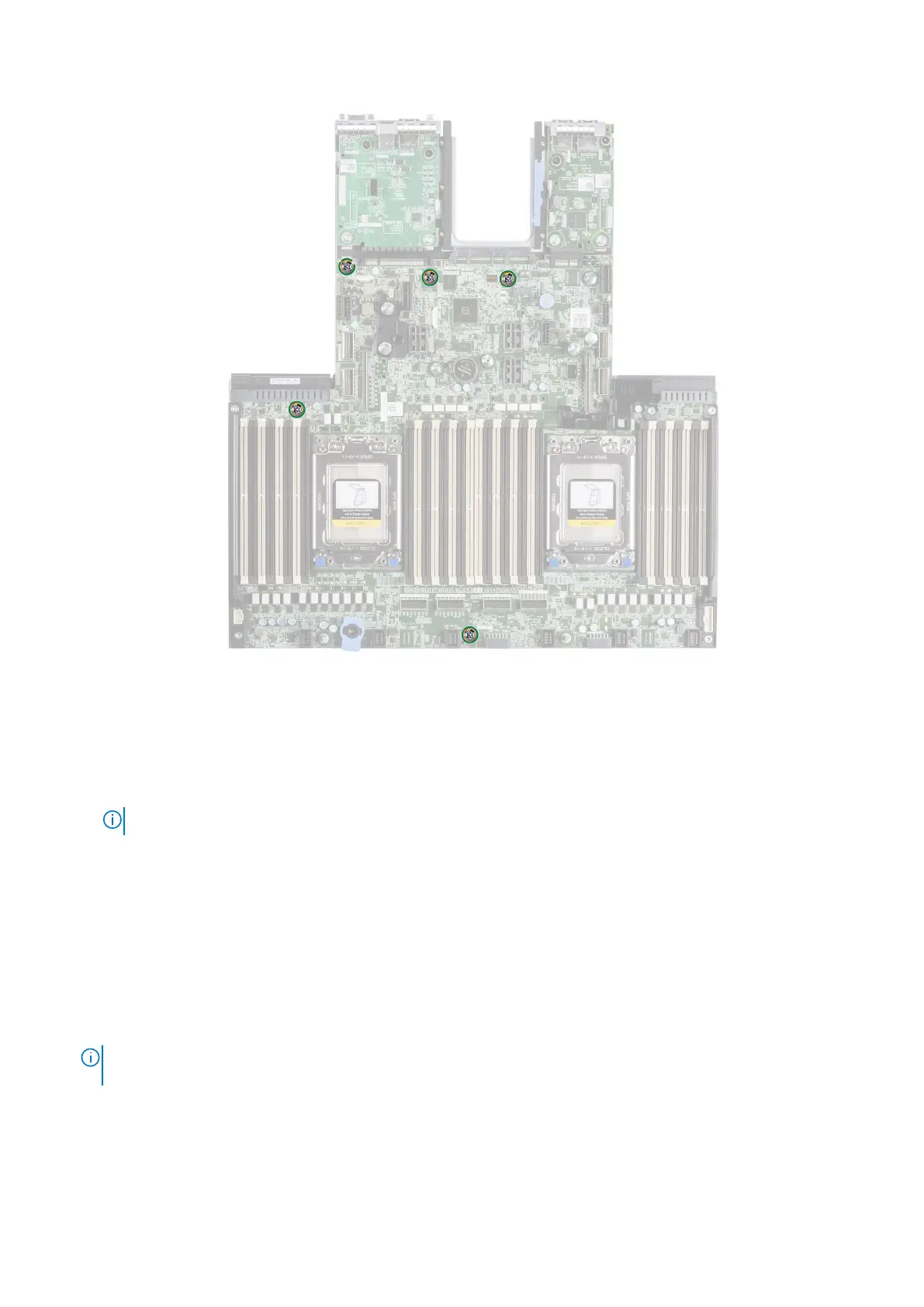

Figure 129. System board screw location
Next steps
1. Replace the following components:
a. Trusted Platform Module (TPM).
NOTE: The TPM Module must be replaced only while installing new system board.
b. IDSDM module (if installed).
c. Internal USB card (if installed).
d. Power supply units (PSU).
e. OCP card (if installed).
f. Processor.
g. Heat sink.
h. Memory modules.
i. Cooling fan cage assembly.
j. Air shroud (if installed).
k. Rear drive cage.
2. Reconnect all cables to the system board.
NOTE:
Ensure that the cables inside the system are routed along the chassis wall and secured using the cable
securing bracket.
3. Ensure that you perform the following steps:
a. Use the Easy Restore feature to restore the Service Tag. See the Restoring the system by using the Easy Restore feature section.
b. If the service tag is not backed up in the backup flash device, enter the system service tag manually. See the Manually update the
Service Tag by using System Setup section.
c. Update the BIOS and iDRAC versions.
Installing and removing system components
169
