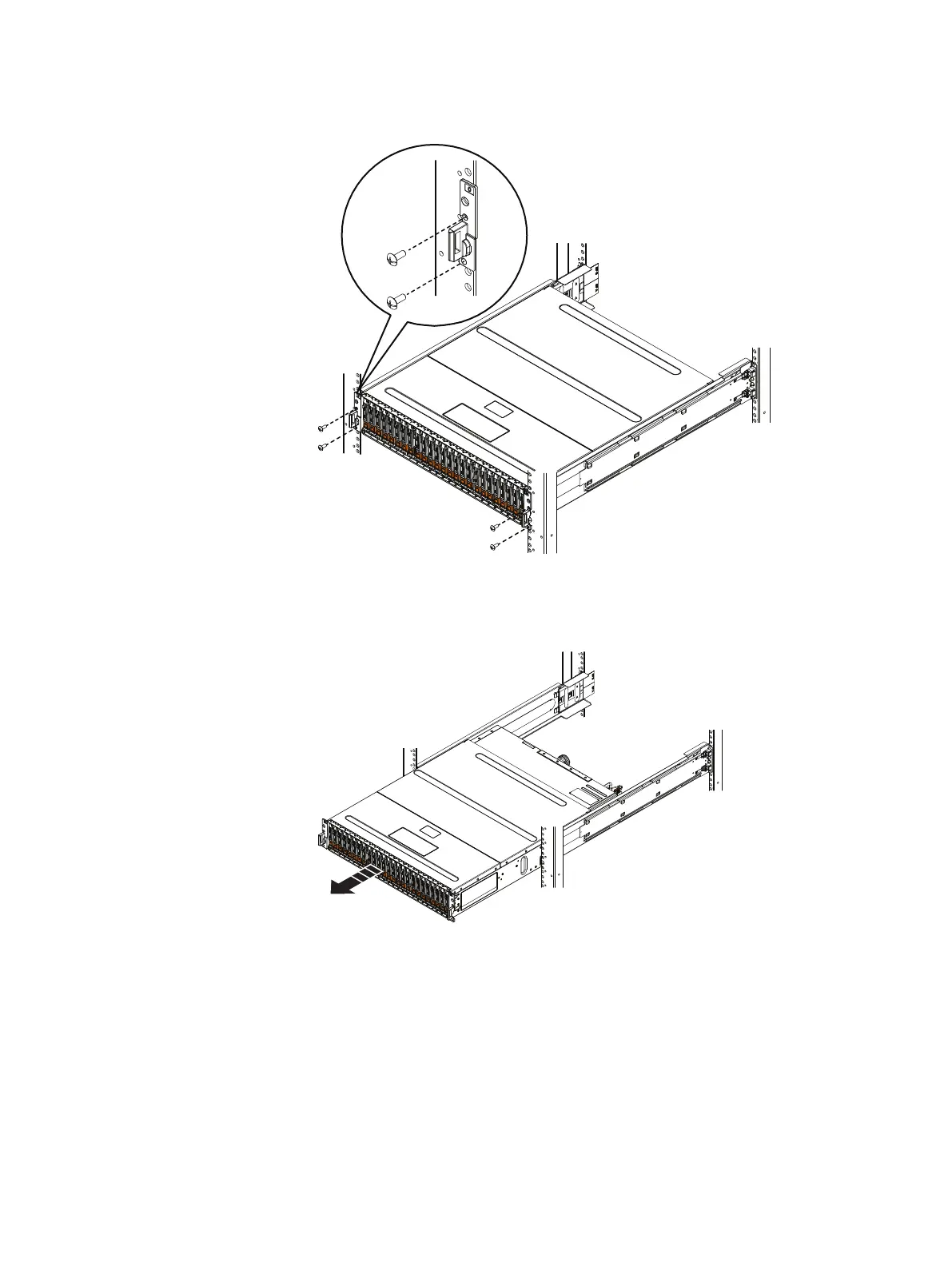

Figure 4 Removing the screws that secure the enclosure to the front of the cabinet
2. With help from another person, slide the enclosure out of the cabinet and place
it on a sturdy, static-free work surface.
Figure 5
Sliding the enclosure out of the cabinet
Unpacking a part
Procedure
1. Wear ESD gloves or attach an ESD wristband to your wrist and the enclosure in
which you are installing the part.
2. Unpack the part and place it on a static-free surface.
3. If the part is a replacement for a faulted part, save the packing material to
return the faulted part.
Field Replacement Procedure
14 Unity All Flash and Unity Hybrid Field Replacement Procedure
