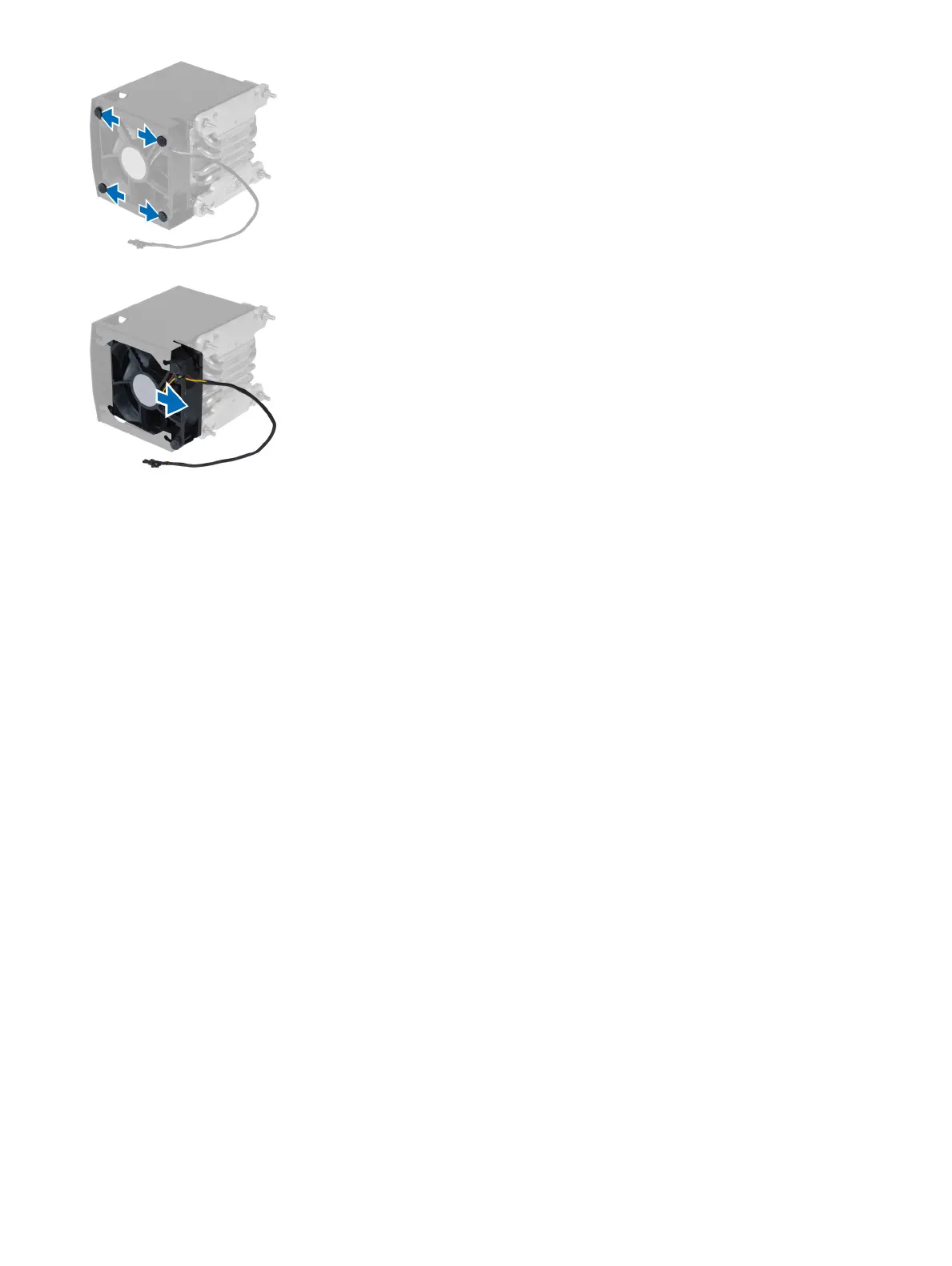

4 Remove the heatsink fan from the heatsink assembly.
Installing the Heatsink Fan
1 Slide the heatsink fan into heatsink assembly.
2 Plug in the grommets to secure the heatsink fan to the heatsink assembly.
3 Install:
a heatsink
b memory shroud (center)
c left cover
4 Follow the procedures in After Working Inside Your Computer.
Removing the PCIe Card Retention
1 Follow the procedures in Before Working Inside Your Computer.
2 Remove:
a left cover
b PCIe cards
3 Perform the following steps as shown in the illustration:
a Unthread the cable from the latch [1].
b Press and slide the latch out to release the PCIe card retention [2].
c Lift and remove the PCIe card retention out of the computer [3].
30
Removing and installing components
