Steps
1. Remove the four screws (M6x32) that secure the right rail-kit to the chassis.
2. Slide and remove the rail-kit from the slots on the chassis.

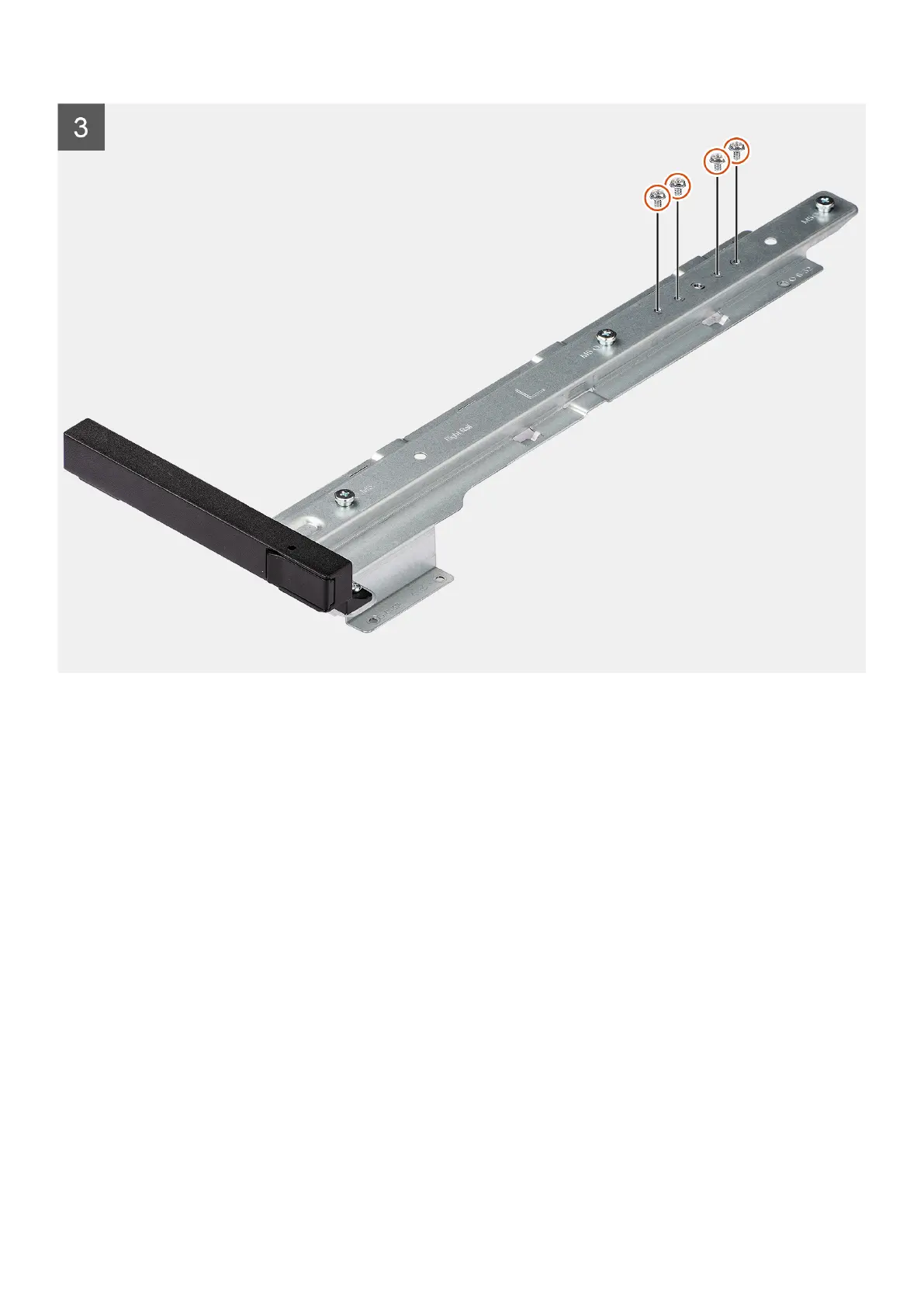

3. Replace the four screws (M6x32) to the rail-kit.
Installing the right rail-kit
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the right rail-kit and provide a visual representation of the installation procedure.
Removing and installing components
107
