Dell D03T Service Manual

Steps
1. Loosen the captive screw on the external-antenna cover.
2. Remove the external-antenna cover from over the antenna connectors on the PCIe-riser card.
3. Loosen the bolts on the external-antenna cable connector.
4. Disconnect the PCIe-riser card cable from the connector on the system board.
5. Remove the PCIe-riser card cable from the routing guide on the chassis.

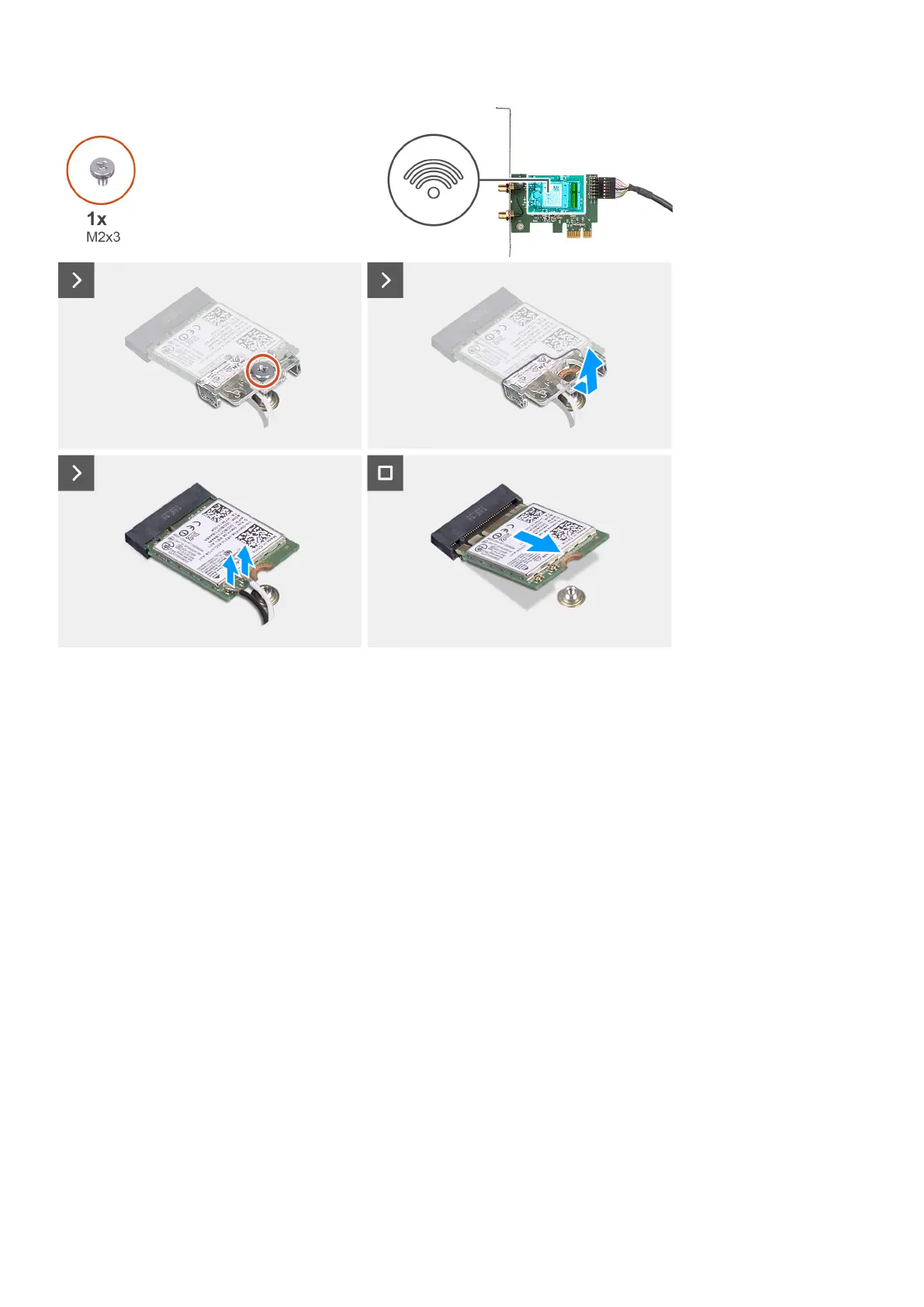

6. Push the PCIe latch to open the PCIe door.
7. Remove the PCIe-riser card from the expansion-card slot.
8. Remove the single (M2x3) screw from the WLAN card.
9. Disconnect the WLAN antenna cables from the connectors on the WLAN card.
10. Slide and remove the WLAN card from the WLAN slot on the PCIe-riser card.
Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the wireless card and provide a visual representation of the installation procedure.
Removing and installing components
79
