Steps

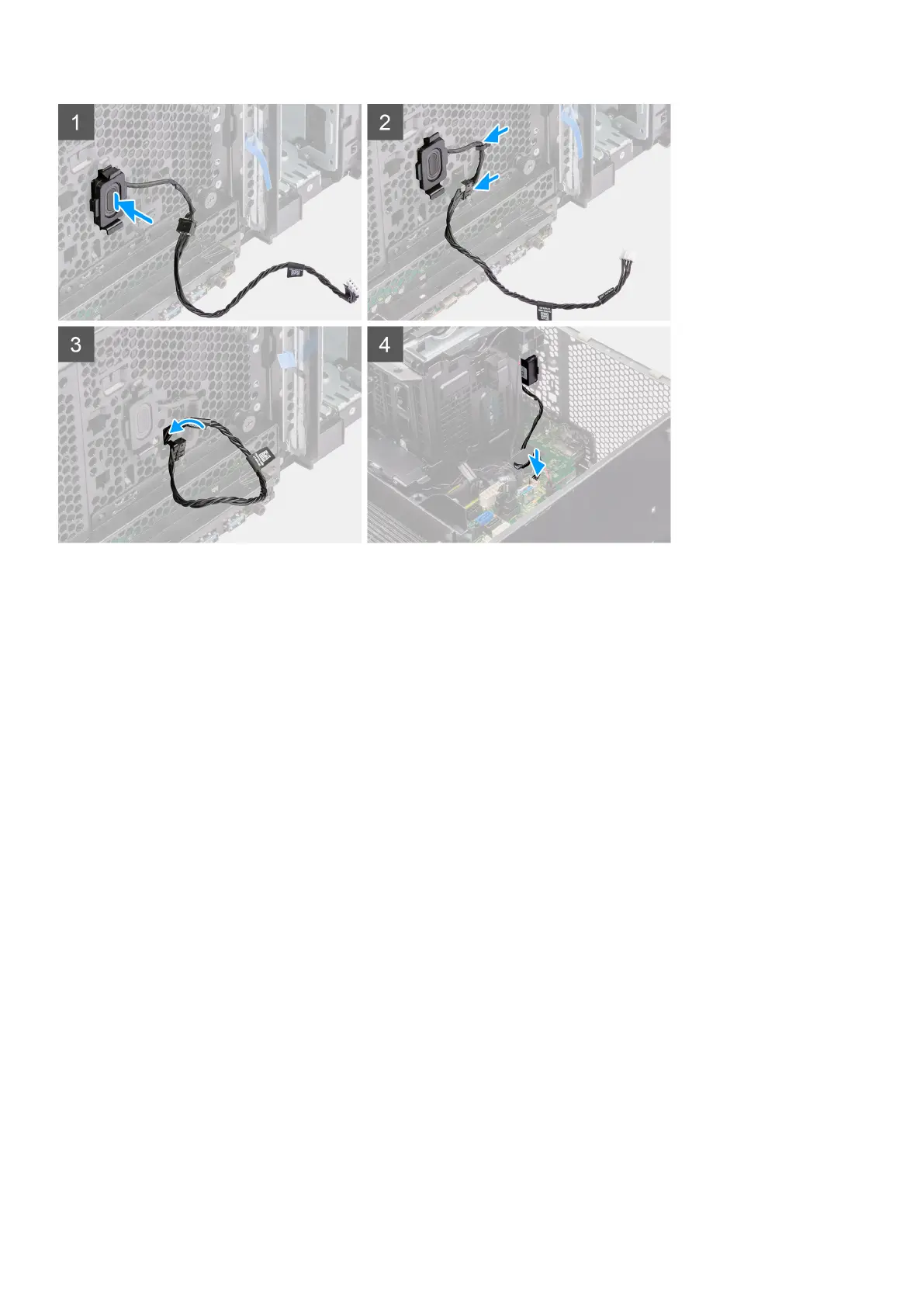

1. Press the tabs on the speaker and push the speaker in to the slot on the chassis until it snaps into place.
2. Route the speaker cable through the routing guide on the chassis.
3. Route the speaker cable through the slot on the chassis.
4. Connect the speaker cable to the connector on the system board.
Next steps
1. Install the air shroud.
2. Install the front bezel.
3. Install the side cover.
4. Follow the procedure in After working inside your computer.
Intrusion switch
Removing the intrusion switch
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the air shroud.
About this task
The following images indicate the location of the intrusion switch and provide a visual representation of the removal procedure.
Removing and installing components
83
