Steps

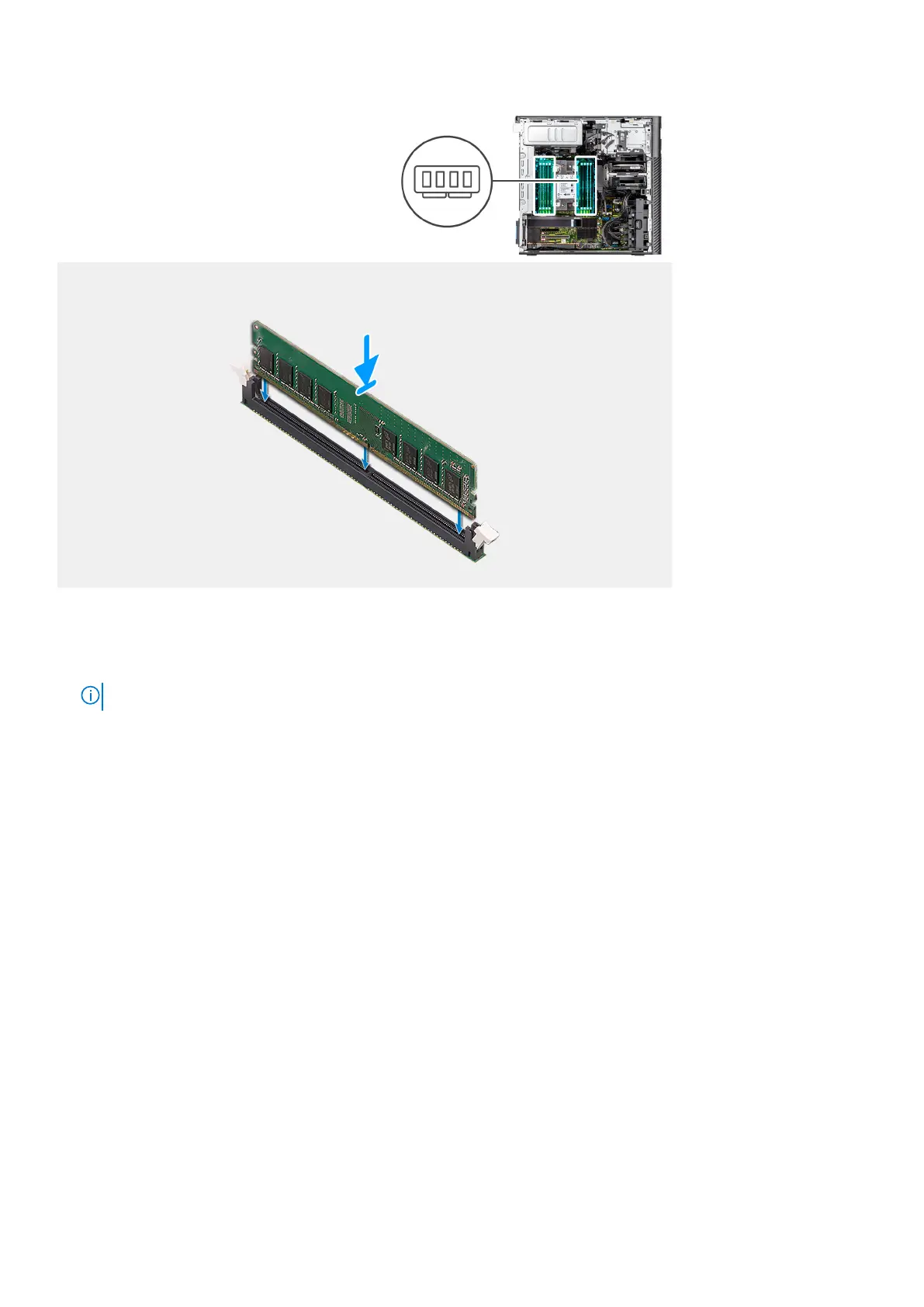

1. Align the notch on the memory module with the tab on the memory-module slot.
2. Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
Next steps
1. Install the air shroud.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
M.2 solid-state drive
Removing the M.2 2230 PCIe solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the PCIe holder.
About this task
The following images indicate the location of the M.2 2230 solid-state drive and provide a visual representation of the removal
procedure.
60
Removing and installing components
