Steps
1. Slide outwards and release the lever from the securing clips on the CPU carrier.
2. Pull the securing clips on the CPU carrier and release the processor.
3. Gently slide the processor out of the CPU carrier.
Installing the processor
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

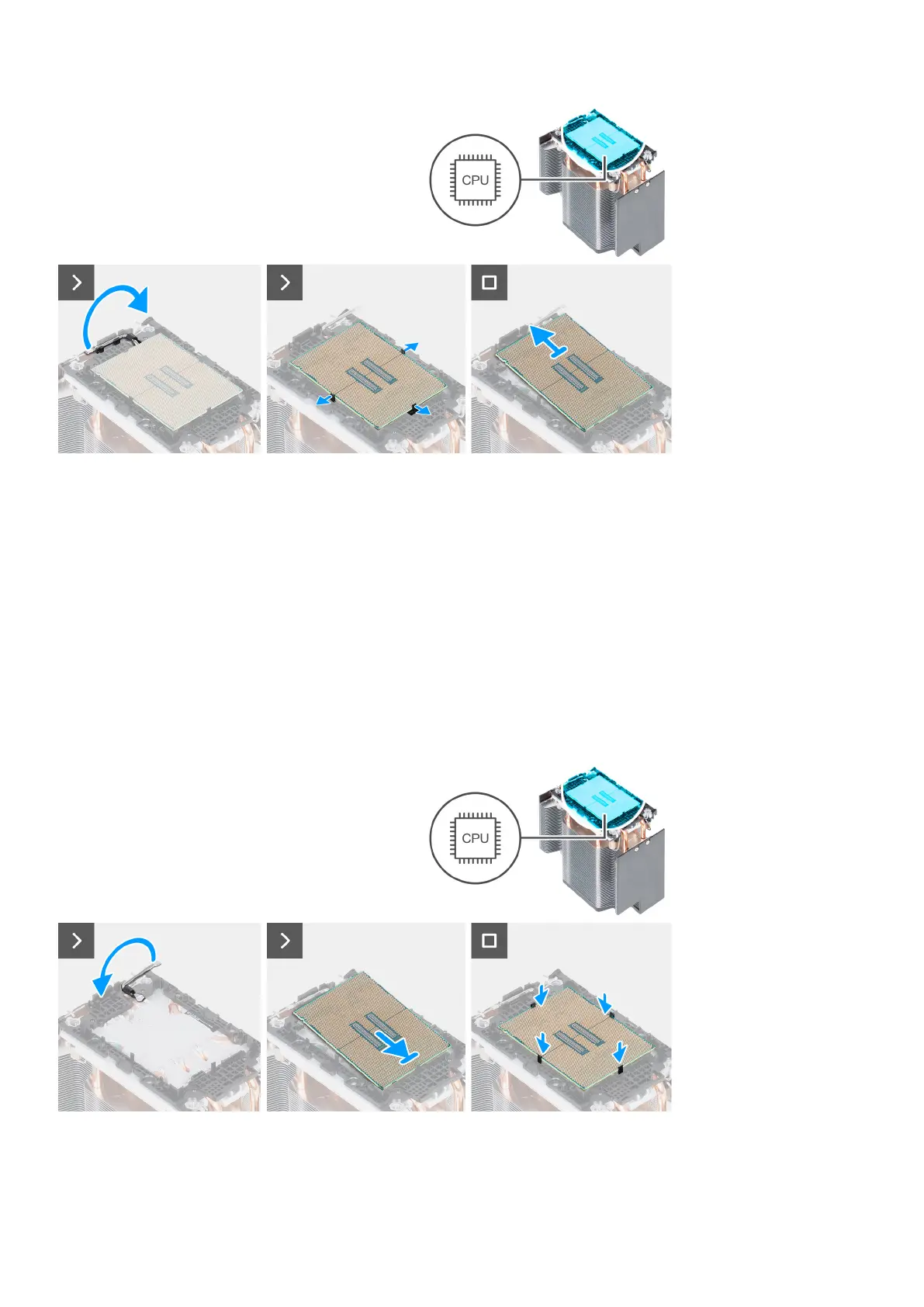

The following images indicate the location of the processor and provides a visual representation of the installation procedure.
Steps
1. Close and lock the lever with the securing clips on the CPU carrier.
Removing and installing components
67
