Dell D03T Service Manual

2. Slide the hard-disk drive assembly out of the hard-drive bracket.
Removing the 2.5-inch hard-disk drive bracket
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the 2.5-inch hard-drive assembly.
About this task

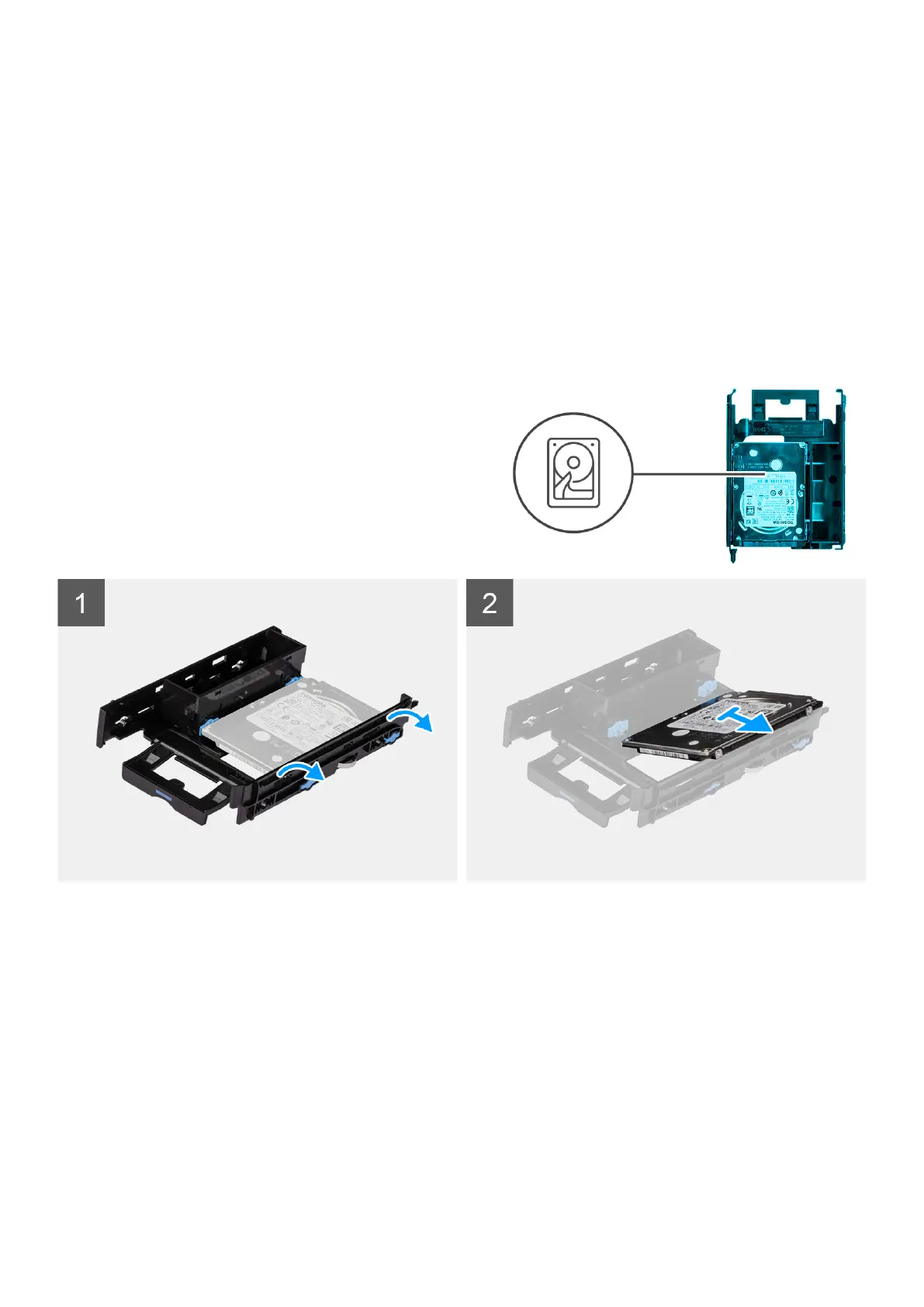

The following images indicate the location of the 2.5-inch hard-drive bracket and provide a visual representation of the removal
procedure.
Steps
1. Pry the sides of the hard-drive bracket to release the tabs on the bracket from the slots on the hard drive.
2. Lift and remove the hard drive off the hard-drive bracket.
Installing the 2.5-inch hard-drive bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the 2.5-inch hard-drive bracket and provide a visual representation of the
installation procedure.
46
Removing and installing components
