Steps

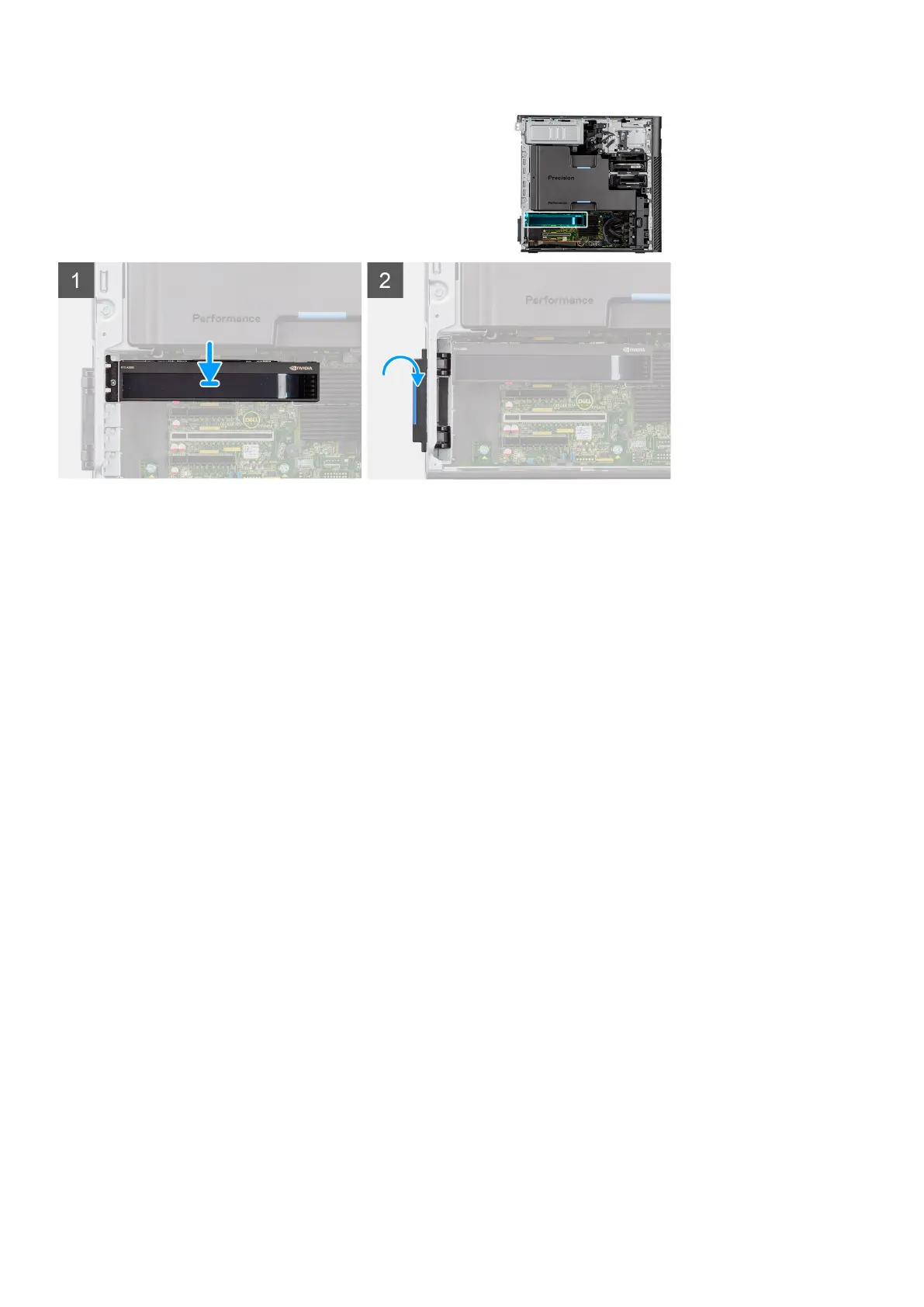

1. Align the graphics card with the PCIe slot on the system board.
2. Using the alignment post, push the graphic card connector firmly into the PCIe slot. Ensure that the graphics card is firmly
seated.
3. Close the PCIe door, locking it into position.
Next steps
1. Install the air shroud.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Removing the UltraSpeed Duo card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the air shroud.
About this task
The following images indicate the location of the UltraSpeed Duo card and provide a visual representation of the removal
procedure.
72
Removing and installing components
