System board
System-board call outs

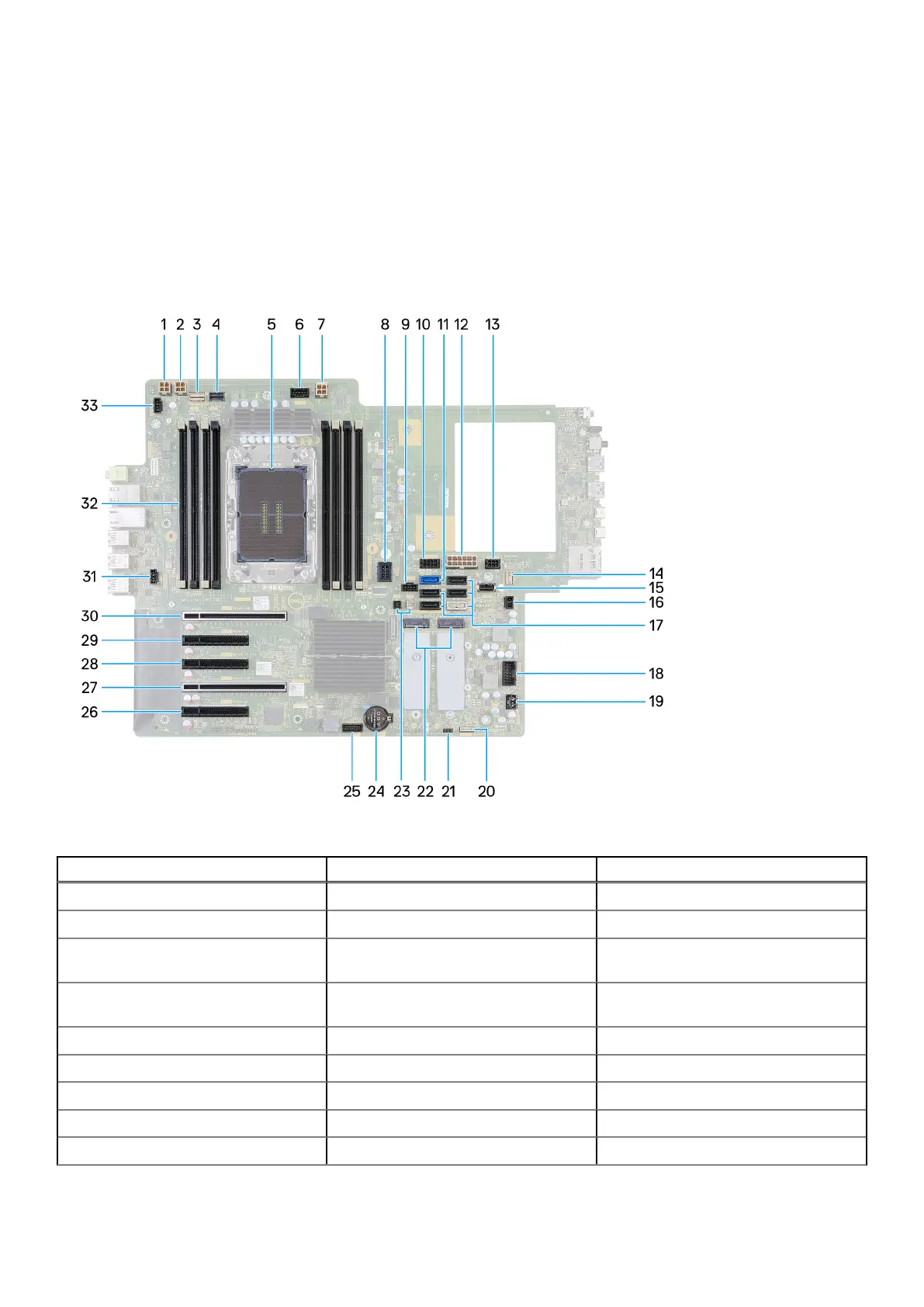

This topics provides detailed call outs for the connectors on the system board:
System-board call outs
Table 2. Precision 5860 tower system board callouts
No Connector Description
1 ATX CPU1 4-pin processor power connector
2 ATX CPU2 4-pin processor power connector
3 NVME1 NVMe connector for externally facing
M.2 flexbay drive
4 NVME0 NVMe connector for externally facing
M.2 flexbay drive
5 CPU0_SKT Processor socket
6 FAN_CPU Processor fan connector
7 ATX CPU3 4-pin processor power connector
8 DDR FAN Memory-module fan connector
9 FAN HDD Hard-drive fan connector
Removing and installing components 97
