Removing and installing components

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

Recommended tools

The procedures in this document may require the following tools:

● Phillips screwdriver #0

● Phillips screwdriver #1

● Torx T20 screwdriver

● Plastic scribe

Screw list

NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and

then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is

restored when the component is replaced.

NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when

replacing a component.

NOTE: Screw color may vary with the configuration ordered.

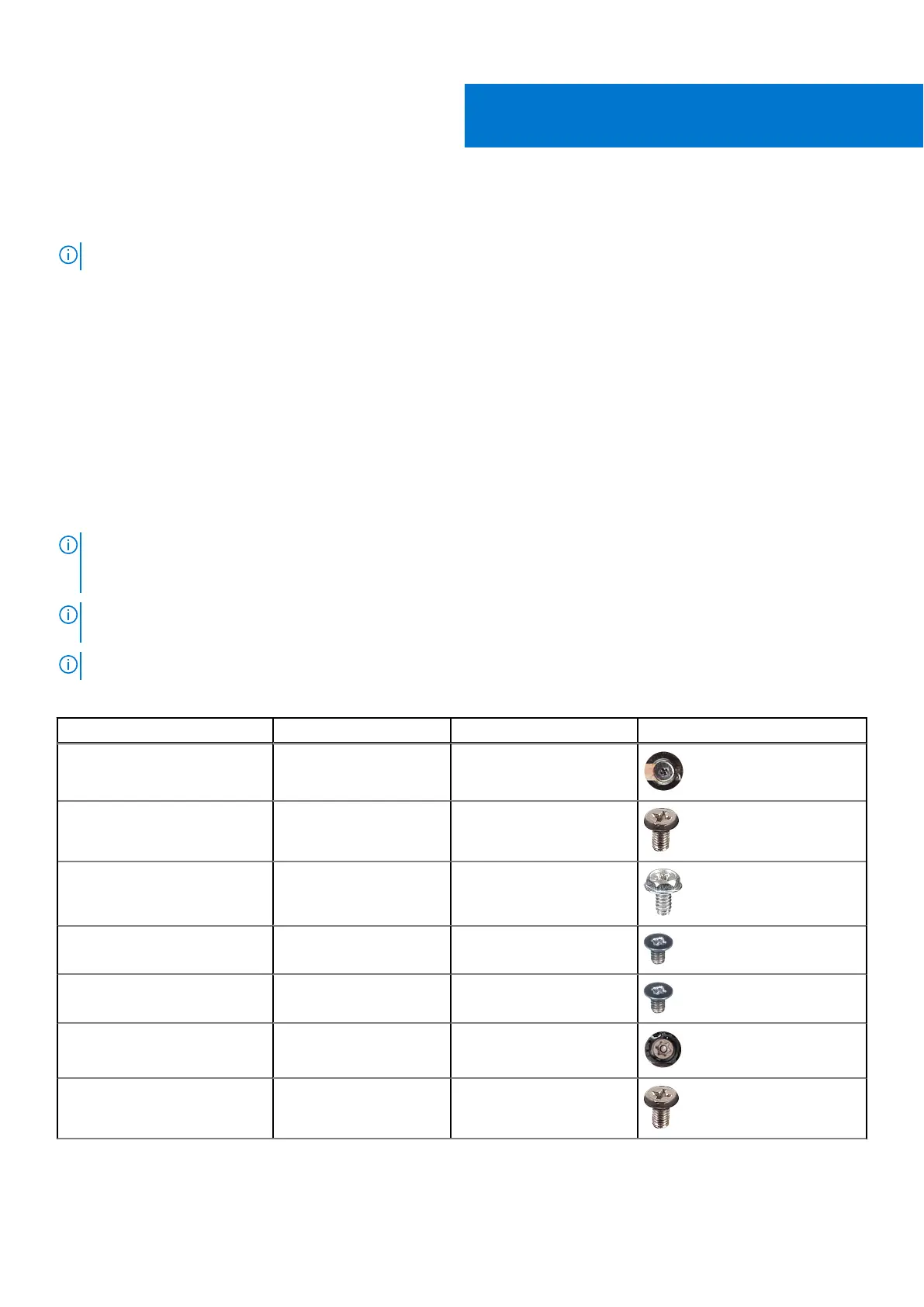

Table 1. Screw list

Component Screw type Quantity Screw image

Front I/O bracket Captive 1

Front fan M3x5 1

Rear fan #6-32 2

Solid-state drive1 M2x3.5 1

solid-state drive2 M2x3.5 1

Heat sink Captive: Torx T30 4

Hard-drive fan assembly M3x5 2

Removing and installing components 11
