Dell D03T Service Manual

Steps

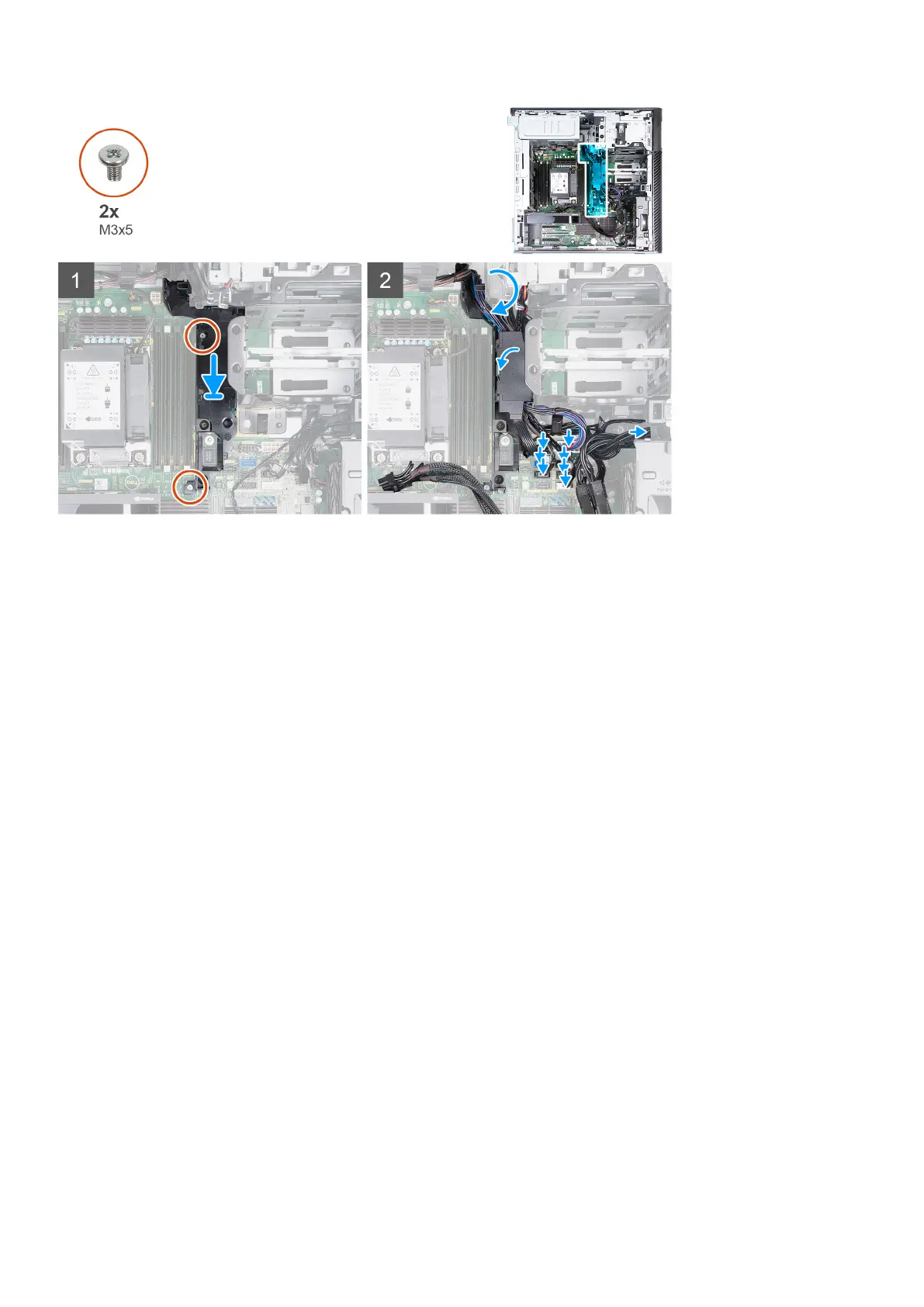

1. Align the bottom air-shroud with the slot on the system board.
2. Replace the two (M3x5) screws that secures the bottom air-shroud to the system board.
3. Connect the cables to the front chassis.
4. Route the cables through the routing guides on the system board.
5. Place and lock the bottom air-shroud cover.
Next steps
1. Install the air shroud.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Internal hard-drive cage
Removing the internal hard-drive cage
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the air shroud.
4. Remove the 2.5-inch hard-drive assembly.
5. Remove the 3.5-inch hard-drive assembly.
6. Remove the hard-drive fan assembly
7. Remove the bottom air-shroud.
About this task
The following images indicate the location of the internal hard-drive cage and provide a visual representation of the removal
procedure.
52
Removing and installing components

Dell D03T Specifications

General

Brand	Dell
Model	D03T
Category	Desktop
Language	English
