Steps
1. Pry the sides of the external hard-drive bracket to release the pins on the bracket from the slots on the hard drive.
2. Lift and remove the hard drive off the external hard-drive bracket.
Installing a 2.5-inch hard-drive from a hard-drive assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

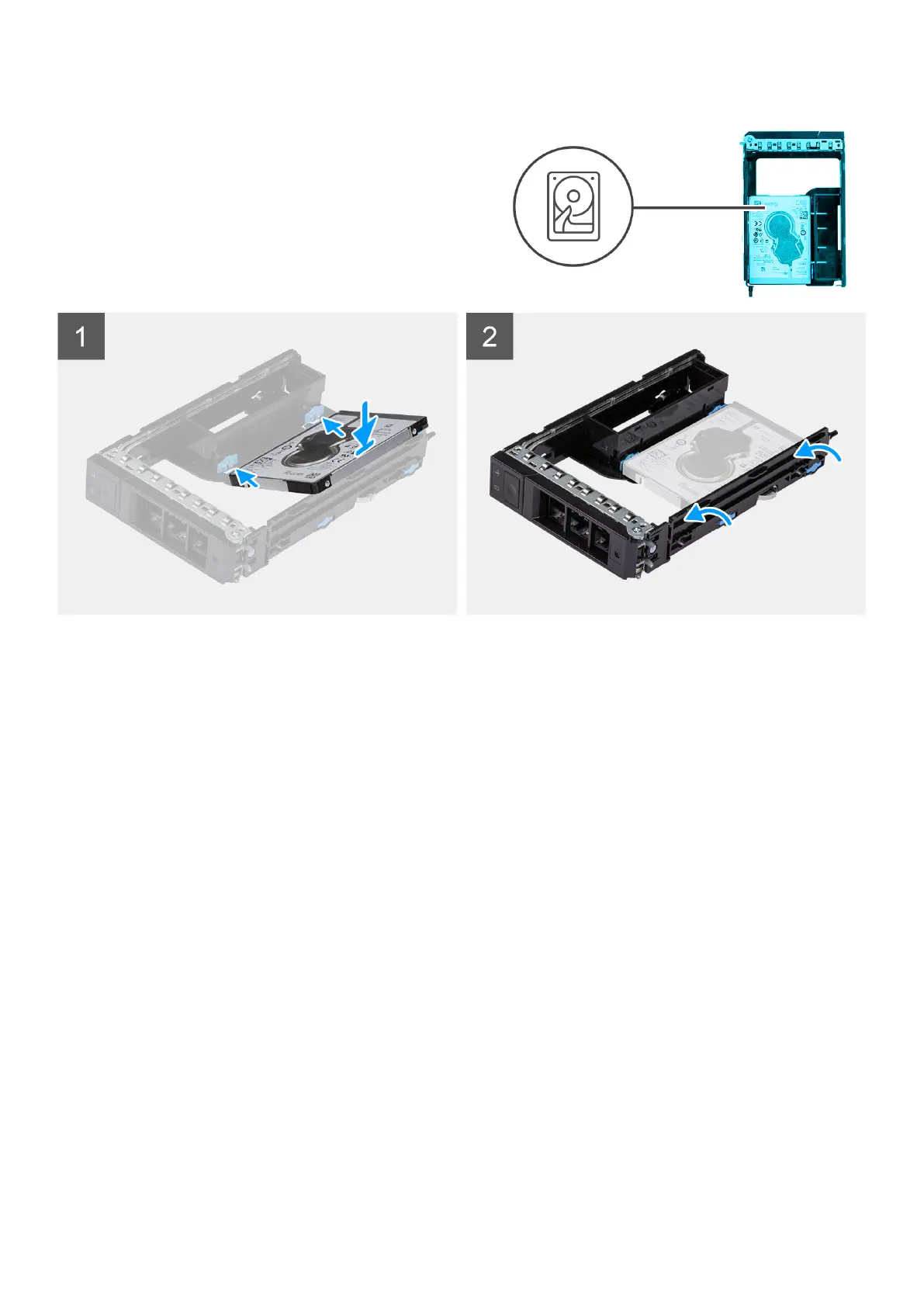

The following images indicate the location of a 2.5-inch hard-drive in a hard-drive assembly and provide a visual representation
of the installation procedure.
24
Removing and installing components
