Steps

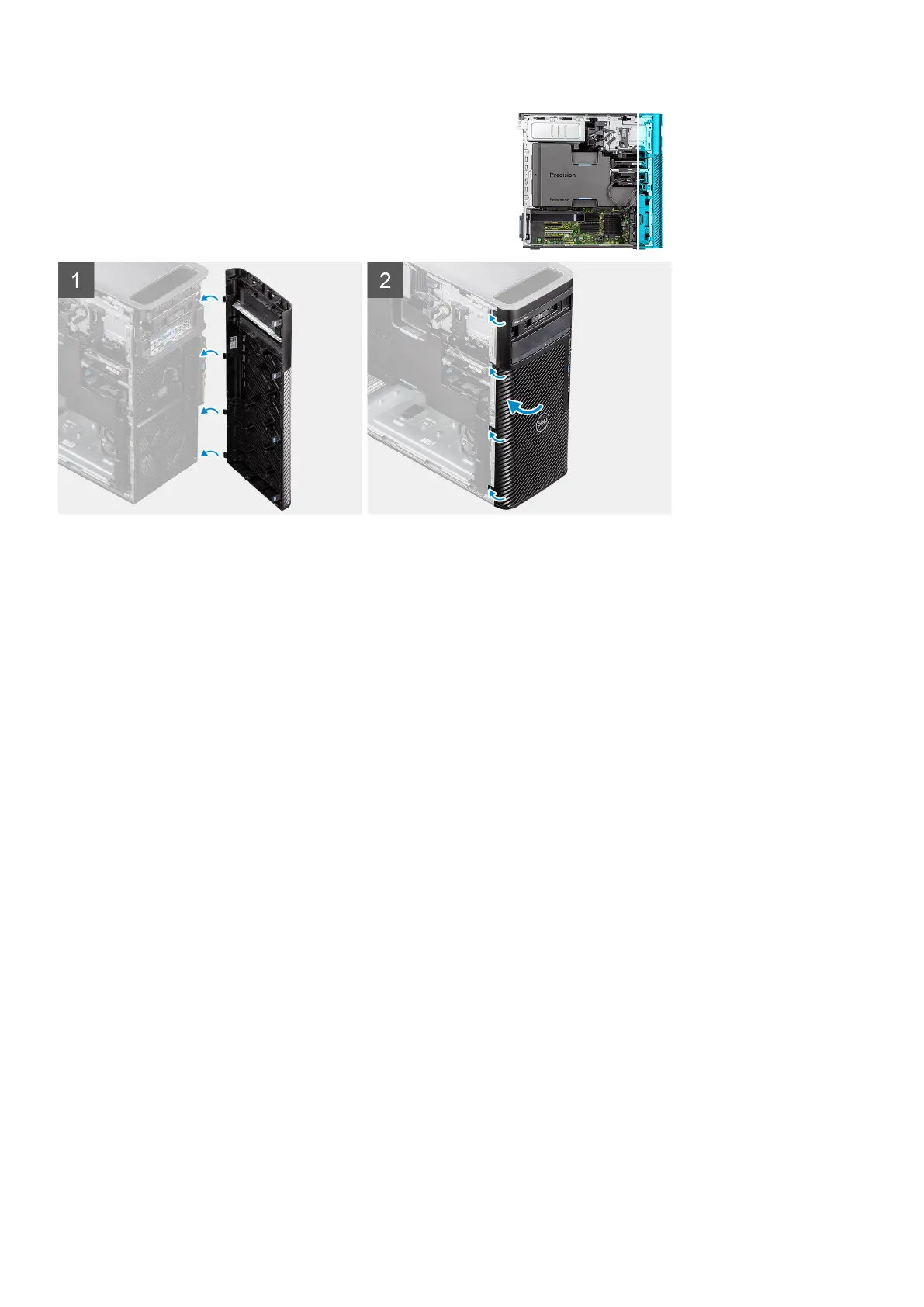

1. Position the front bezel to align the tabs on the bezel with the slots on the chassis.
2. Press the bezel until the tabs clicks into place.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
I/O board
Removing the front I/O bracket
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
About this task
The following images indicate the location of the front I/O bracket and provide a visual representation of the removal procedure.
18
Removing and installing components
