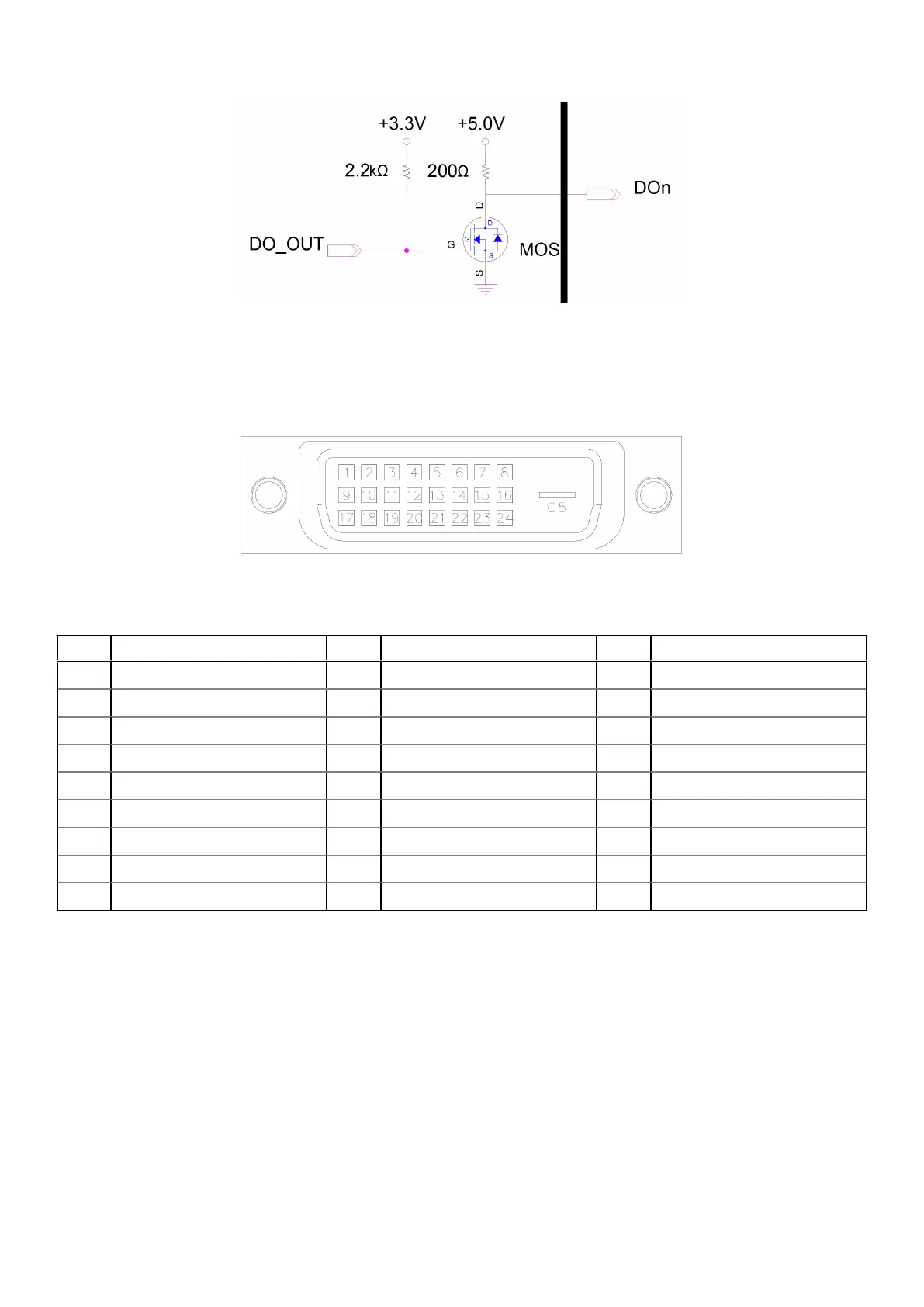

Figure 10. Digital output circuit
DVI-D connector
The EGW-5200 provides one DVI-D connector for connection to an external monitor.
Figure 11. DVI-D connector pin locations
Table 8. DVI-D connector pin definitions
Pin Signal Pin Signal Pin Signal
1 DVIdata 2– 10 DVIdata 1+ 19 GND
2 DVIdata 2+ 11 GND 20 N/C
3 GND 12 N/C 21 N/C
4 N/C 13 N/C 22 GND
5 N/C 14 +5 V 23 DVI clock+
6 DVIDC clock 15 GND 24 DVI clock–
7 DVIDC data 16 Hot plug detect C5 GND
8 N/C 17 DVIdata 0– - -
9 DVIdata 1– 18 DVIdata 0+ - -
16 System Layout
