Power on and start up the operating system
All the drivers are preloaded, and if there is a need for a driver update, download it from the EGW-5200 page of the Dell
Technologies Support site, under the Drivers & Downloads tab.
The following drivers must be installed:
● Chipset
● Graphics
● Audio
● Ethernet
● Intel ME
● DI/O
Mount the device
Steps
1. Install the wall-mount brackets. To attach the wall-mount brackets to the chassis, remove the outer six M4 6 mm screws
that secure the bottom panel to the chassis, and then use the same screws to attach the brackets through the mounting
holes as indicated by the red circles in the following figure.

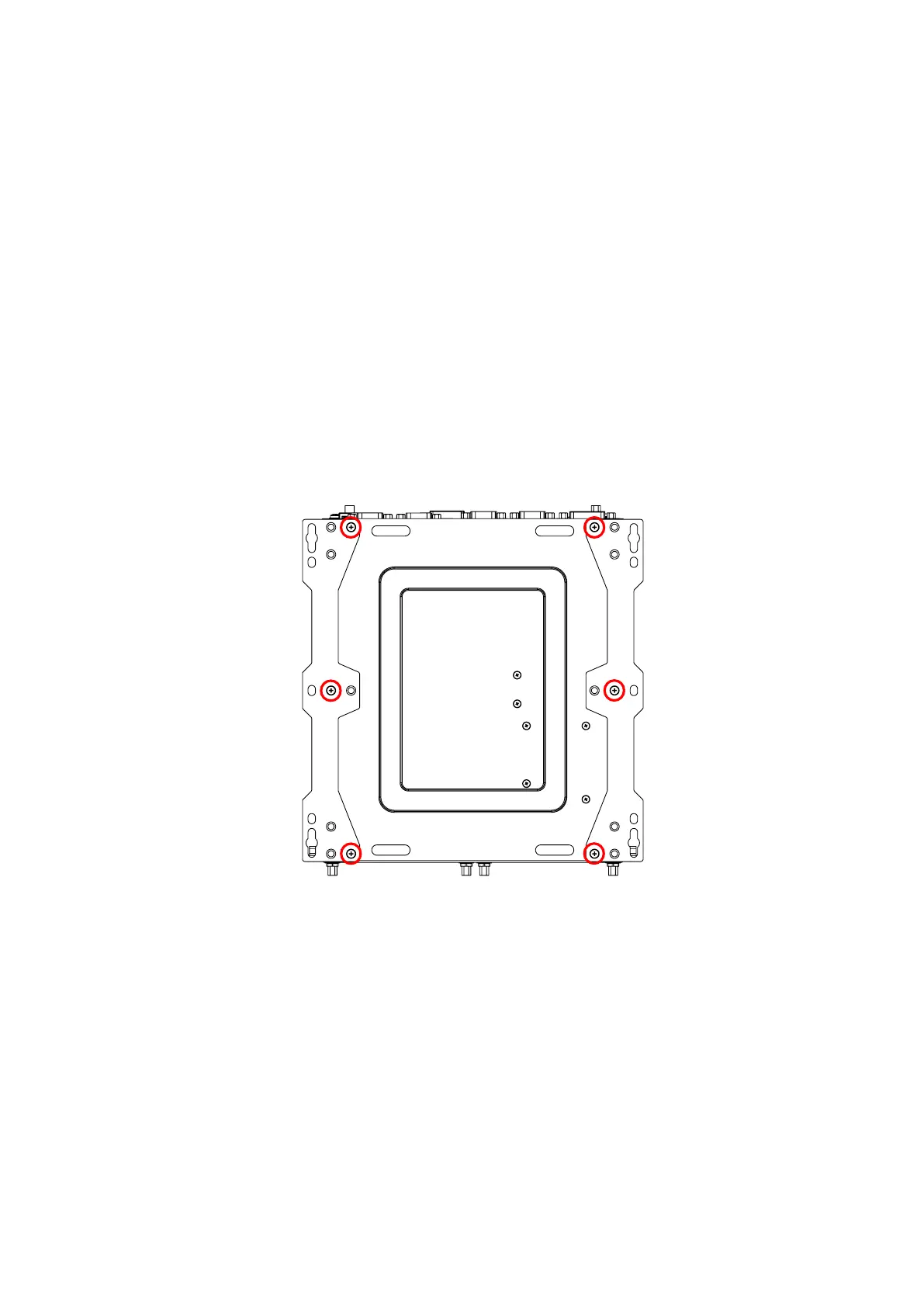

Figure 25. Wall-mount bracket installation
2. Mount the device to a wall using the four keyhole openings indicated or the six mounting holes, all of which are shown in red.
Getting Started
27
