Dell EMC Edge Gateway 5200 User Manual

System Layout
Topics:
• Front panel I/O
•
Internal I/O connectors
• Antenna connectors
Front panel I/O
The EGW-5200 provides the following front panel access features.
A
M
L
H I J
K
G
F
B
C
D
E
N
O

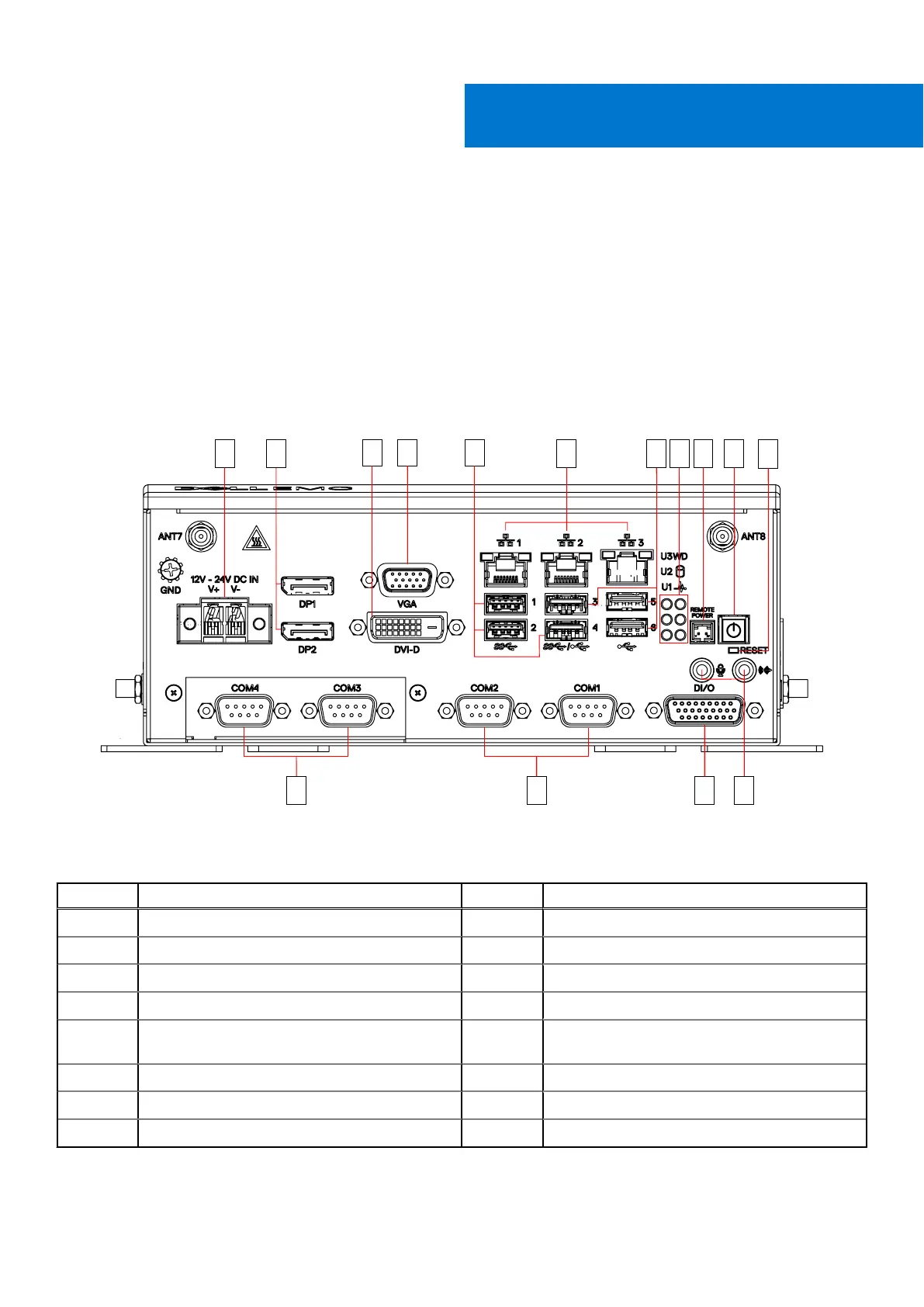

Figure 6. Front panel I/O
Table 4. Front panel I/O legend
Letter Description Letter Description
A DC Power Input I Extend Power Button
B DisplayPort x2 J Power
C DVI-D K Reset
D VGA L Audio (mic, phones/speaker)
E 3x USB 3.1 Type-A (Gen2: red ports 1 and 2;
Gen1: blue port 4)
M Digital Input/Output
F 3x Gigabit Ethernet N 2x COM ports (232/485 capable)
G 3x USB 2.0 Type-A (black ports 3, 5, and 6) O uFM I/O (default with 2x COM ports)
H LED Indicators - -
3
System Layout 13
