LatitudeON™Card
Dell™Latitude™E4200ServiceManual
Removing the Latitude ON Card
Replacing the Latitude ON Card


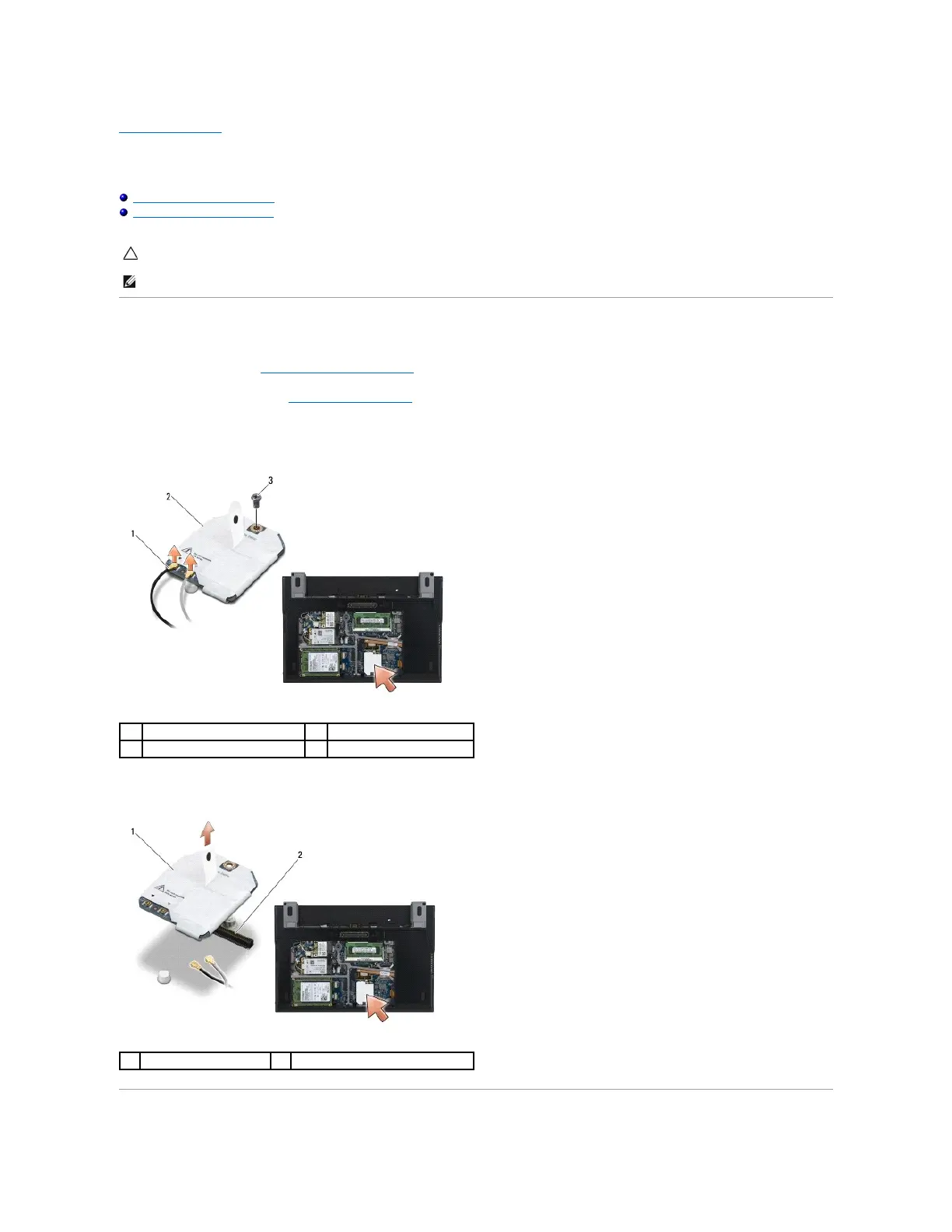

Removing the Latitude ON Card

1. Follow the procedures in Before Working on Your Computer.

2. Remove the service panel (see Removing the Service Panel).

3. Disconnect the antenna cables from the card.

4. Remove the M2 x 3-mm screw.

5. Pull the card up to disconnect it from the system board connector.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage on www.dell.com at: www.dell.com/regulatory_compliance.
NOTE: TheLatitudeON™cardisoptionalandmaynotbepresentinsomecomputers.
1
antenna cables (2)
2
Latitude ON card
3
screw


1
Latitude ON card
2
system board connector
