Dell Latitude XT3 - Processor; Removing the Processor

14
Processor
Removing the Processor
1. Follow the procedures in Before Working On Your Computer.
2. Remove the battery.
3. Remove the back panel.
4. Remove the hard drive assembly.
5. Remove the base cover.
6. Remove the heat sink.

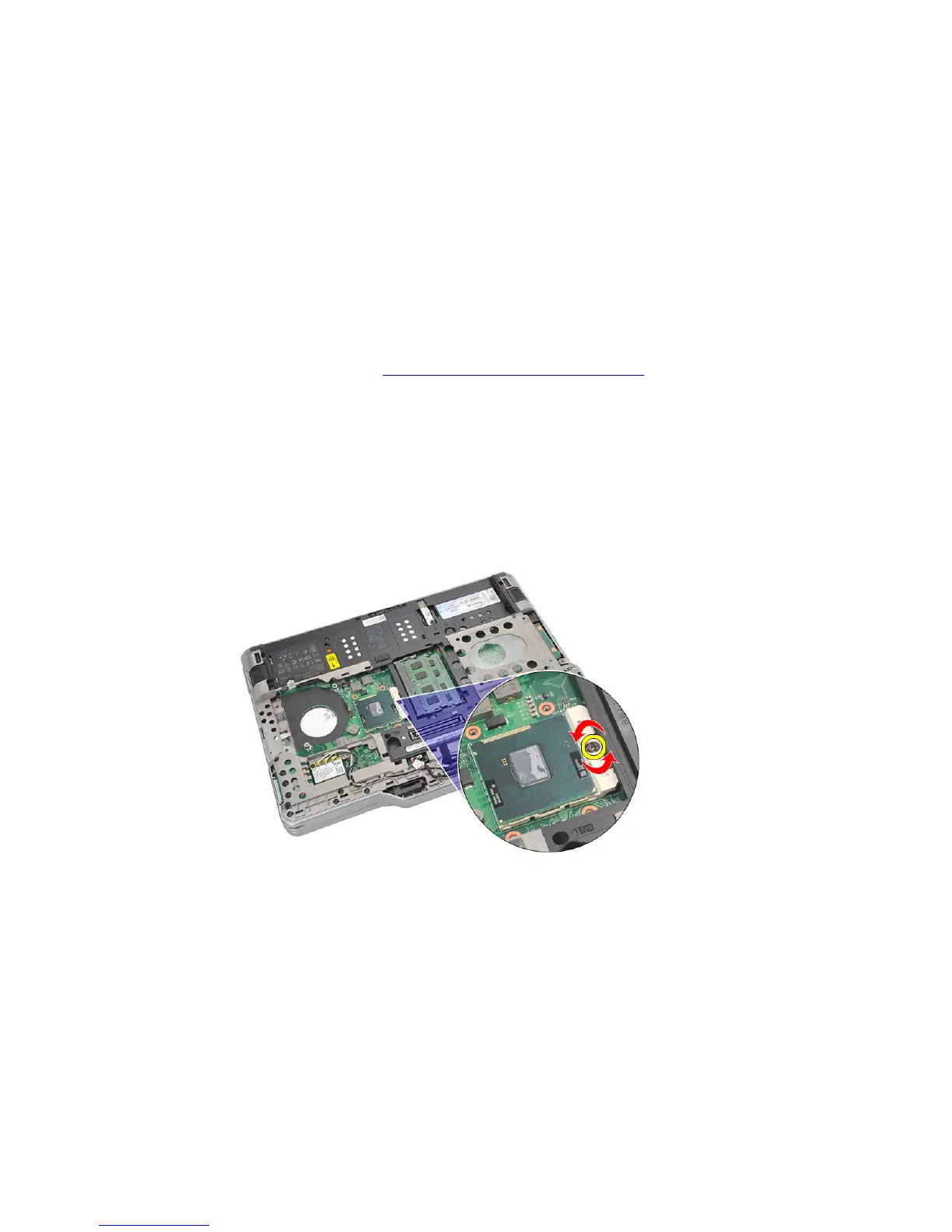

7. Rotate the processor-cam screw in counter-clockwise direction.
57
