Modem Connector
Removing the Modem Connector
1. Follow the procedures in Before Working On Your Computer.
2. Remove the battery.
3. Remove the back panel.
4. Remove the keyboard trim.
5. Remove the hard drive assembly.
6. Remove the back cover.
7. Remove the palmrest.

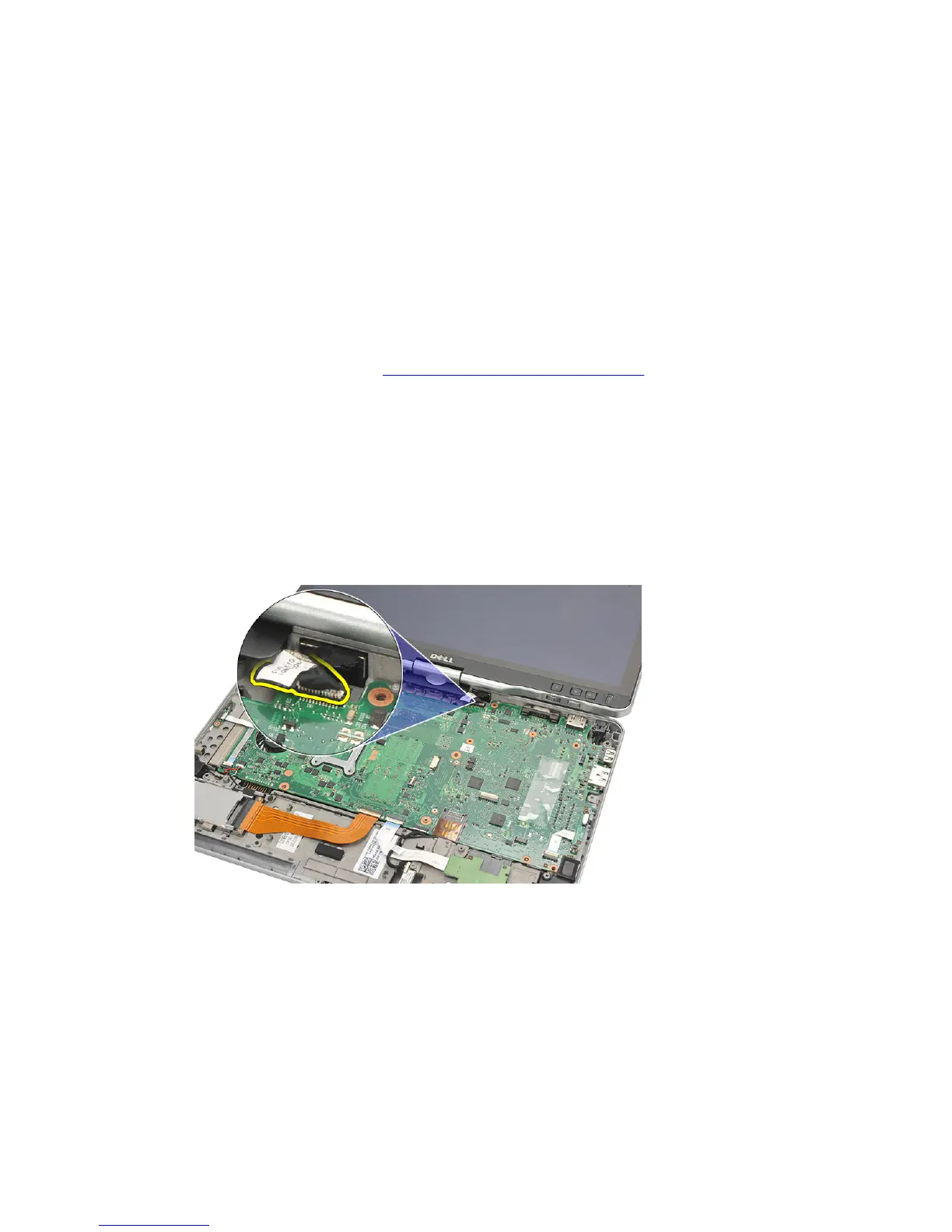

8. Disconnect the modem connector cable from the system board.
87
