Dell Latitude XT3 - Installing the Expresscard Reader

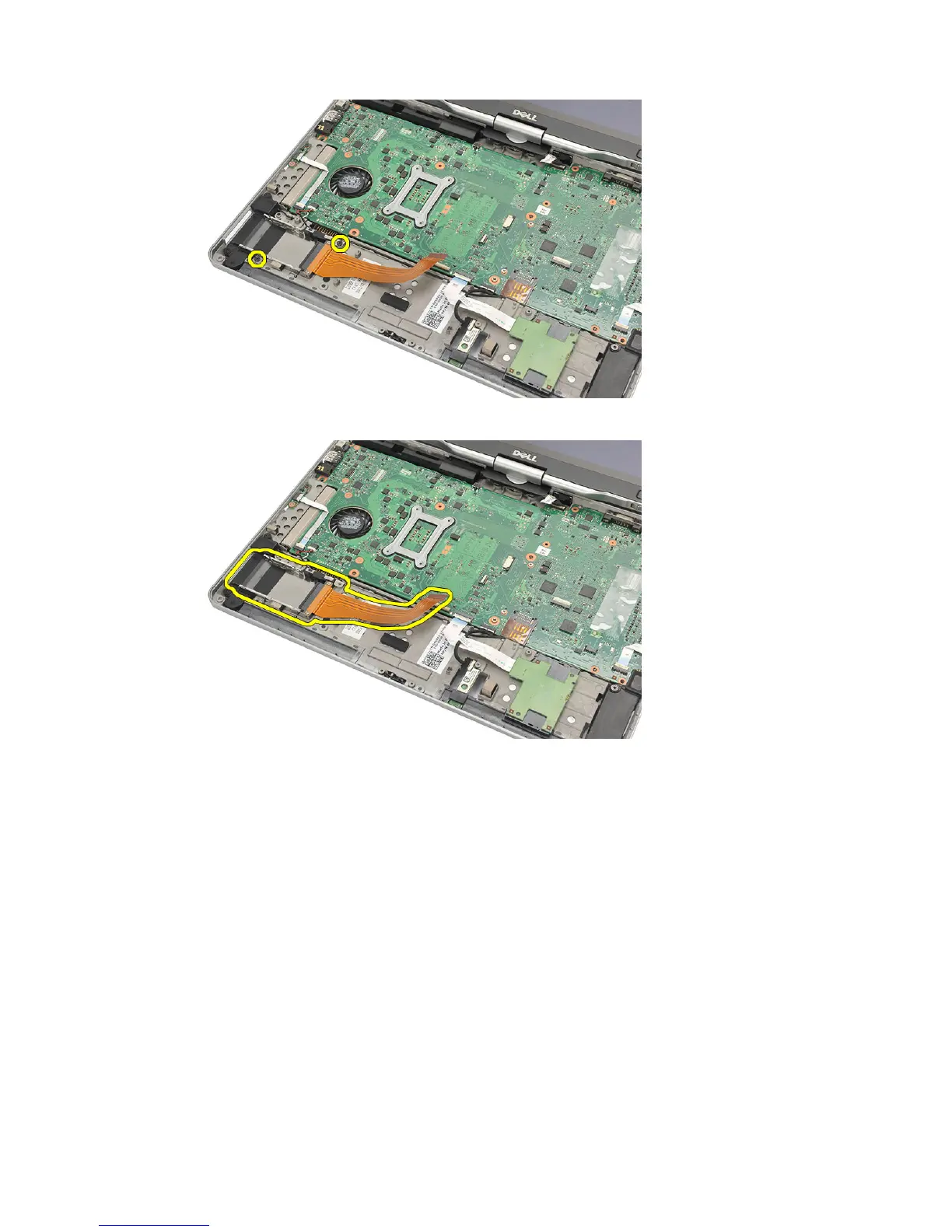

9. Remove the screws that secure the ExpressCard reader.
10. Push the ExpressCard reader towards the side and remove it from the computer.
Installing the ExpressCard Reader
1. Insert the ExpressCard reader in the compartment.
2. Tighten the screws to secure the ExpressCard reader to the back of the computer.
3. Connect the ExpressCard reader's flex cable to the system board.
4. Replace the palmrest.
5. Replace the back cover.
6. Replace the hard drive assembly.
7. Replace the keyboard.
8. Replace the keyboard trim.
9. Replace the back cover.
10. Replace the battery.
74
