ExpressCard Reader
Removing the ExpressCard Reader
1. Follow the procedures in Before Working On Your Computer.
2. Remove the battery.
3. Remove the back panel.
4. Remove the keyboard trim.
5. Remove the hard drive assembly.
6. Remove the base cover.
7. Remove the palmrest.

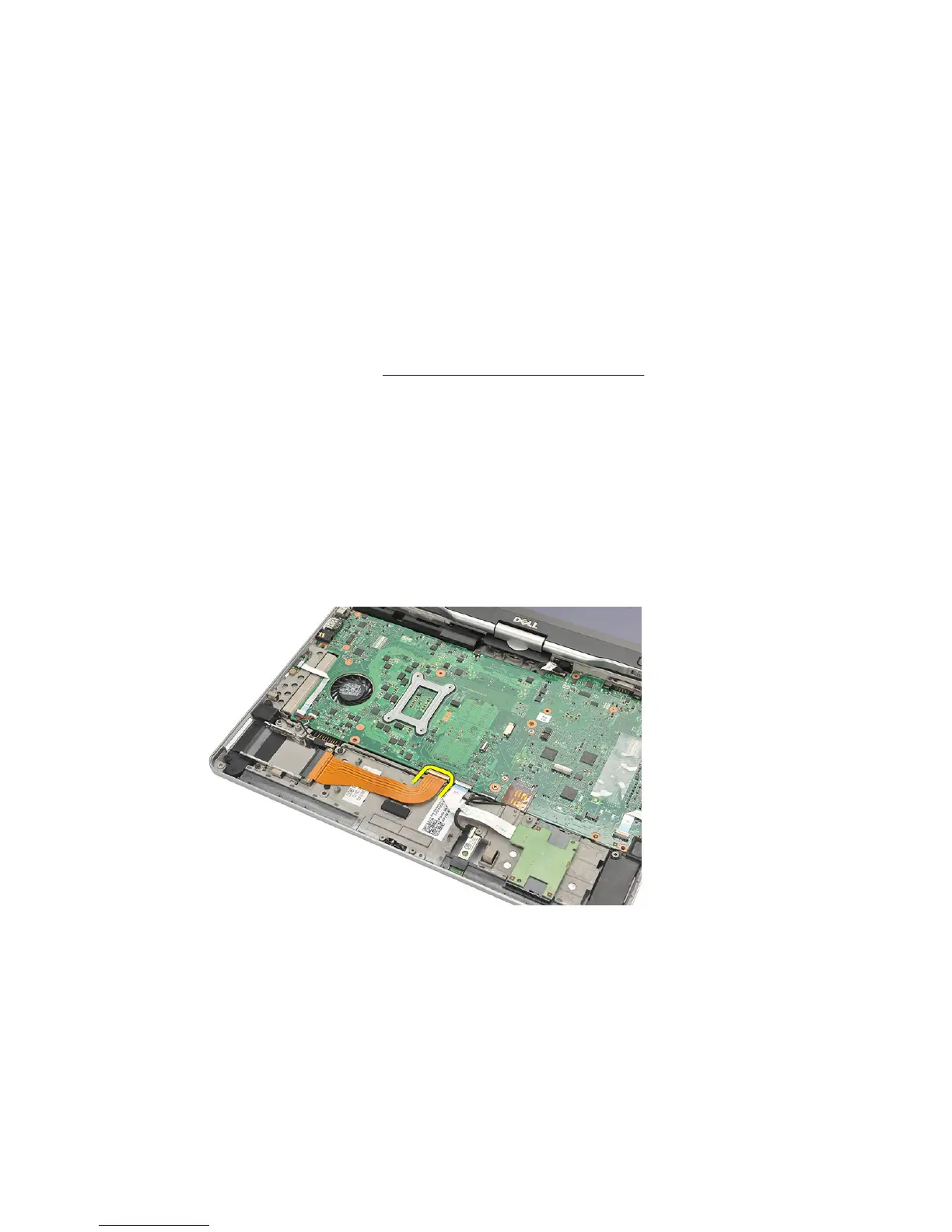

8. Disconnect the ExpressCard reader's flat flex conductor (FFC) cable from the
system board.
