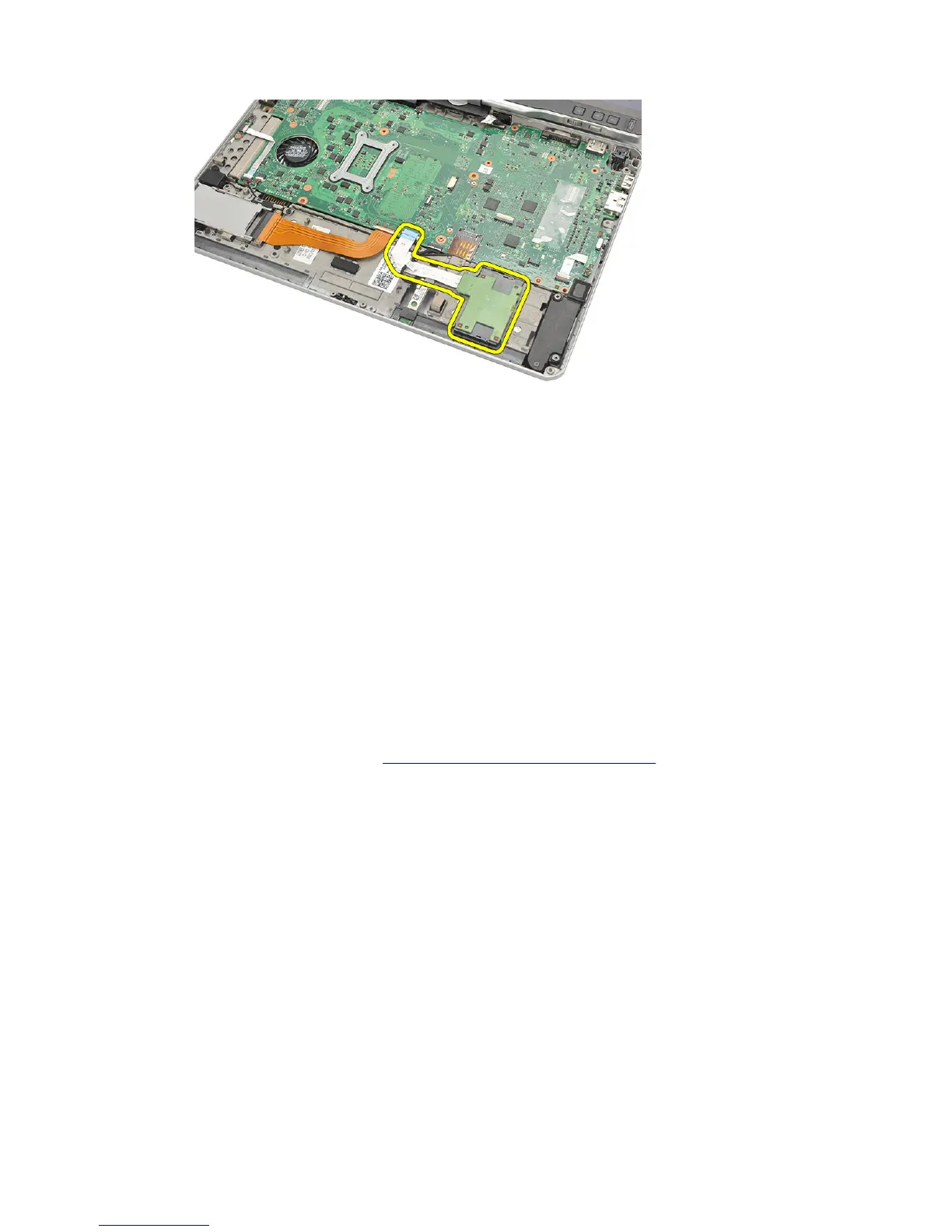

9. Lift and remove the smart card reader from the computer.
Installing the Smart Card Reader
1. Place the smart card reader in the compartment.
2. Connect the smart card reader flex cable to the system board.
3. Replace the palmrest.
4. Replace the back cover.
5. Replace the hard drive assembly.
6. Replace the keyboard.
7. Replace the keyboard trim.
8. Replace the back panel.
9. Replace the battery.
10. Follow the procedures in After Working Inside Your Computer.
78
