Dell Precision M6600 - Display Hinge Cap Tower Procedures; Removing the Display Hinge Cap Tower

Display Hinge Cap Tower 34
Removing The Display Hinge Cap Tower
1. Follow the procedures in Before Working On Your Computer
2. Remove the battery .
3. Remove the base cover .
4. Remove the keyboard trim .
5. Remove the keyboard .
6. Remove the optical drive .
7. Remove the primary hard drive .
8. Remove the secondary hard drive .
9. Remove the palm rest .
10. Remove the display assembly .
11. Remove the standard display bezel or the touchscreen display bezel .
12. Remove the standard display panel or the touchscreen display panel .

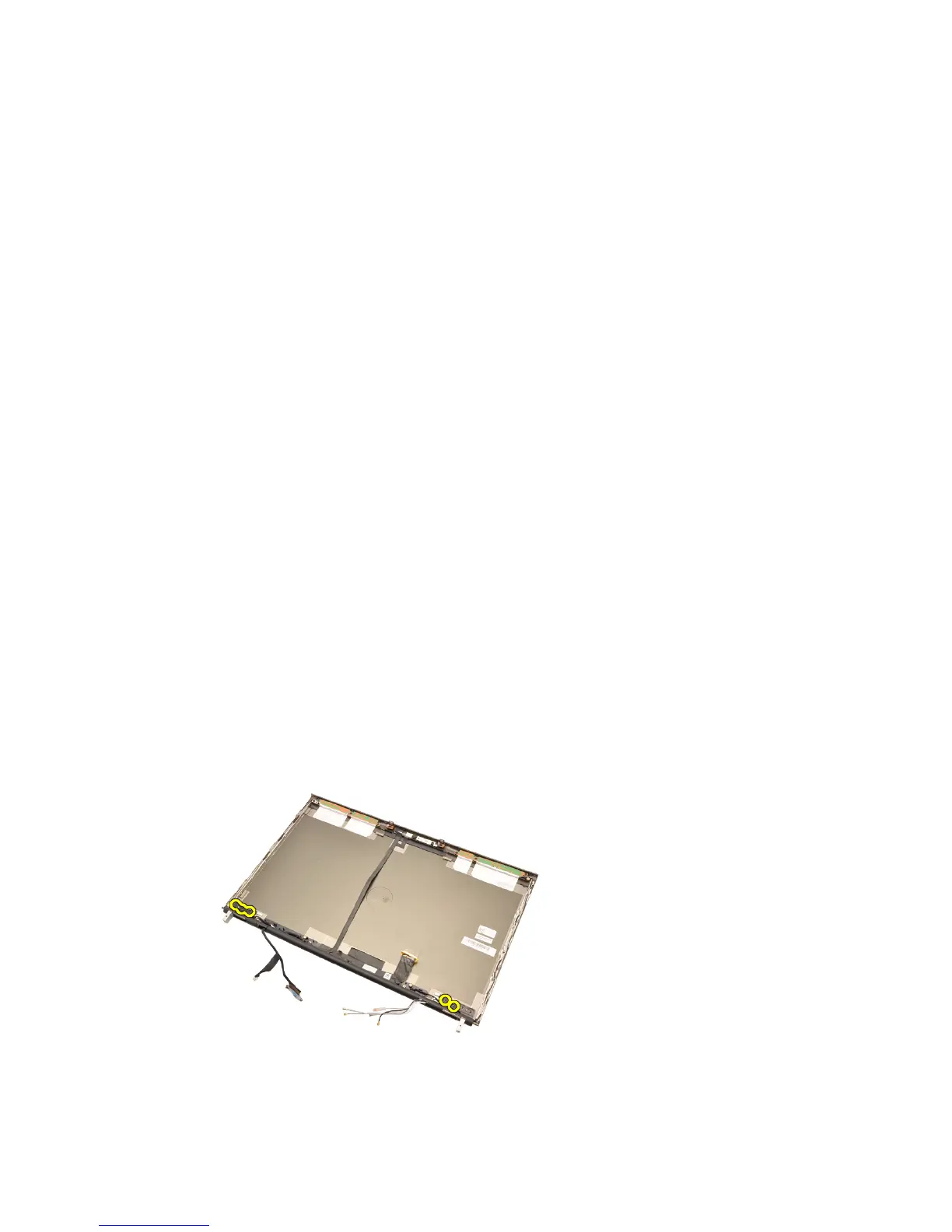

13. Remove the screws securing the display hinges in place.
14. Remove the display hinge caps.
103
