Dell Precision M6600 - Installing the LVDS Camera Cable

Installing The Low-Voltage Differential Signaling (LVDS) Camera Cable

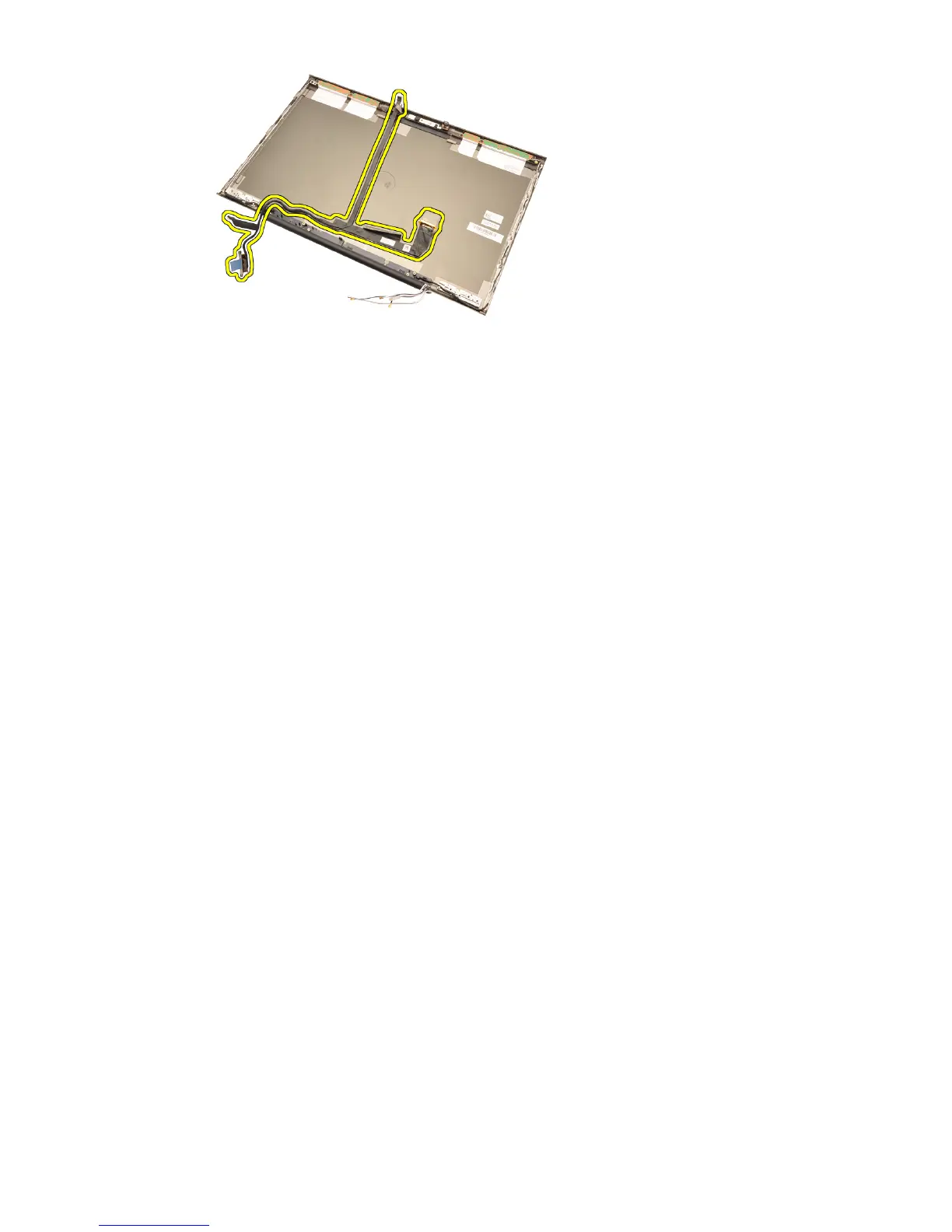

1. Secure the low-voltage differential signaling (LVDS) cable to its routing
channel.
2. Replace the adhesives to secure the LVDS and camera cable in place.
3. Connect the LVDS and camera cable to the camera.
4. Install the display hinge, hinge cap, hinge tower
5. Install the standard display panel or the touchscreen display panel .
6. Install the standard display bezel or the touchscreen display bezel .
7. Install the display assembly
8. Install the palm rest .
9. Install the secondary hard drive .
10. Install the primary hard drive .
11. Install the optical drive .
12. Install the keyboard .
13. Install the keyboard trim .
14. Install the base cover .
15. Install the battery .
16. Follow the procedures in After Working Inside Your Computer .
