Dell Precision M6600 - Input;Output Board Servicing; Removing the Input;Output Board

Input/Output Board 25
Removing The Input/Output Board
1. Follow the procedures in Before Working On Your Computer
2. Remove the battery .
3. Remove the base cover .
4. Remove the keyboard trim .
5. Remove the keyboard .
6. Remove the optical drive .
7. Remove the primary hard drive .
8. Remove the secondary hard drive .
9. Remove the palm rest .
10. Disconnect the ExpressCard cable.

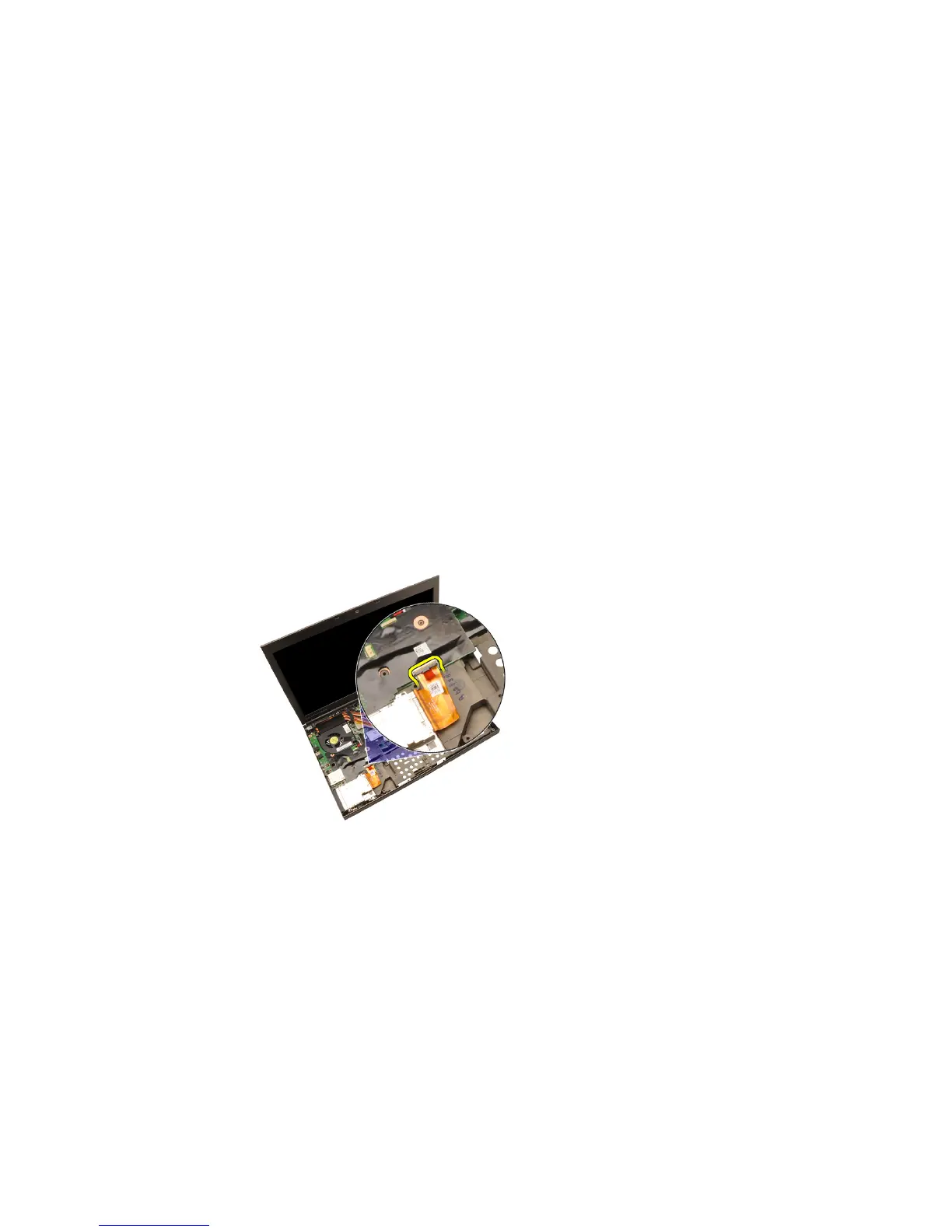

11. Remove the screw securing the Input/Output (IO) board in place.
69
