Installing The Primary Hard Drive

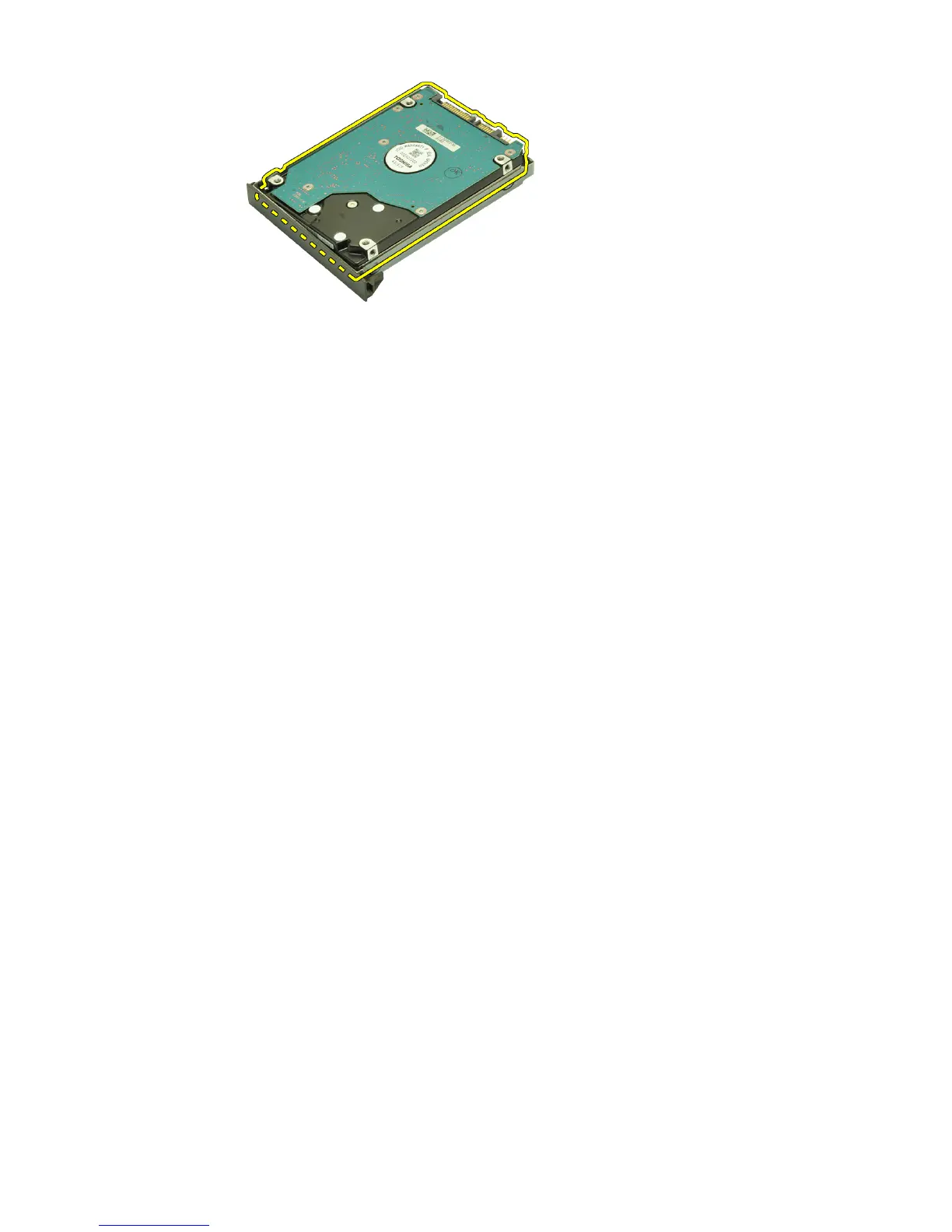

1. Align the hard drive to the hard drive bracket.
2. Slide the hard drive into the hard drive bracket.
3. Slide the hard drive into its compartment towards the connector on the
system board.
4. Tighten the screw securing the hard drive latch in place.
5. Tighten the screws securing the hard drive in place.
6. Install the
base cover
.
7. Install the
battery
.
8. Follow the procedures in
After working inside your computer
.
35
